2025 ZT Avenger - Drive Arms

2025 ZT Avenger - Drive Arms

The 2025 ZT Avenger Drive Arms are essential for maintaining control and power distribution in your mower. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts, including replacement drive arms, pivot brackets, hydraulic hoses, and securing hardware to keep your mower operating at peak efficiency. Our Bad Boy Lawn Mower Parts inventory ensures you find factory-grade replacements for long-term durability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct drive arm components for fast repairs. A properly functioning drive arm system enhances maneuverability, reduces stress on hydraulic components, and improves mower responsiveness. We stock Bad Boy Parts Online for quick replacements and easy ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 ZT Avenger Drive Arms is now more cost-effective. Order today for smooth and efficient operation.

Bad Boy Mower Parts Lookup

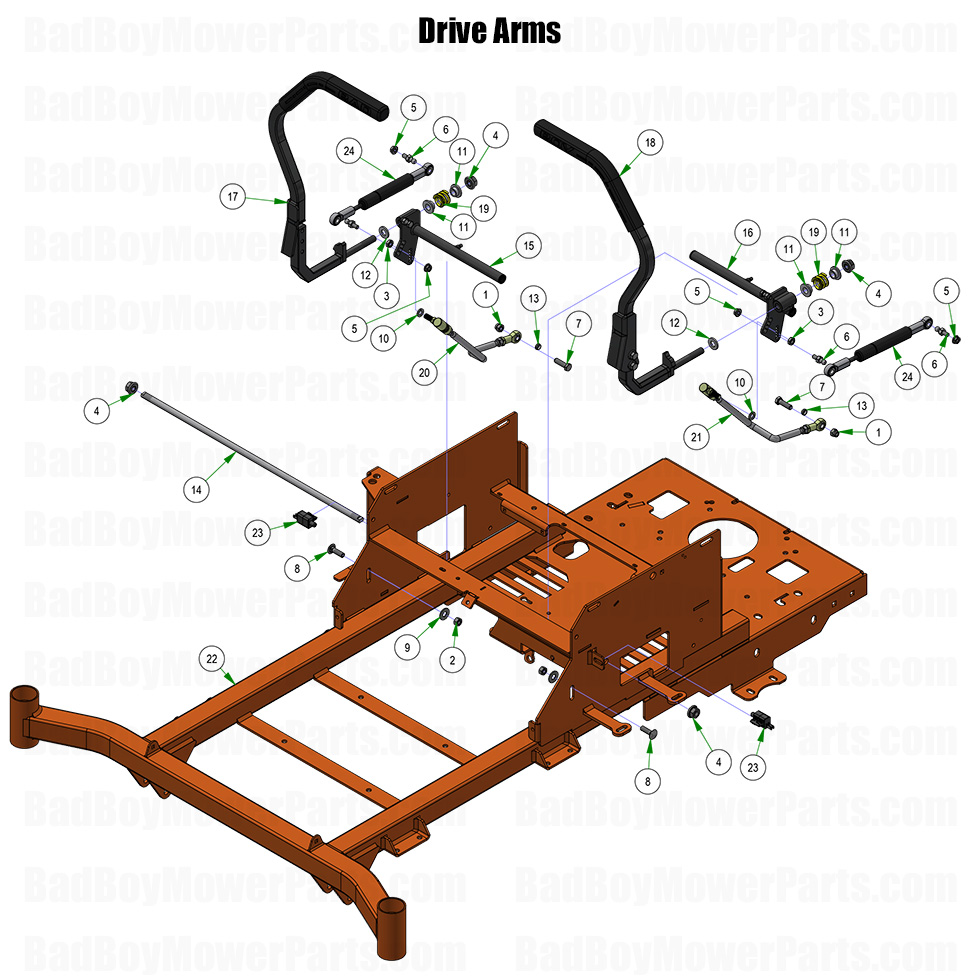

2025 ZT Avenger - Drive Arms
  Position Number SKU Product Title Price
1 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
2 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
3 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
6 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
7 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
8 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
9 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
10 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
11 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
12 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
13 025-0036-00 025-0036-00 - Drive Arm Transaxle Spacer
$5.49

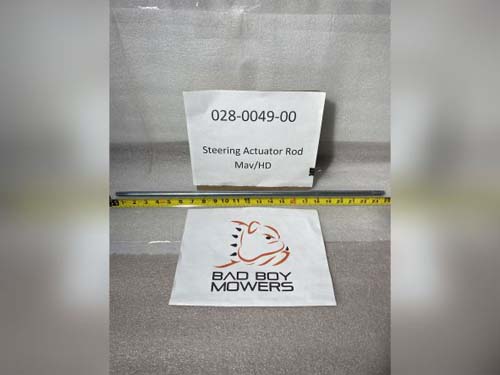

14 028-0049-00 028-0049-00 - 2021 Maverick Steering Actuator Rod
$21.39

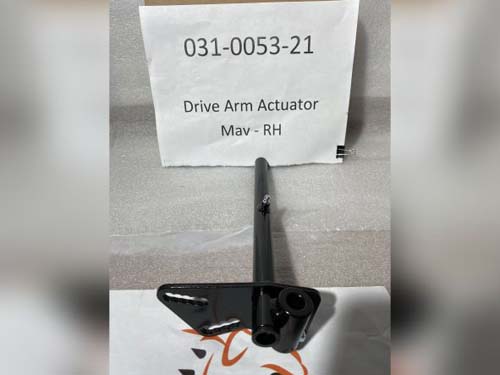

15 031-0053-21 031-0053-21 - 2021-2022 Maverick Drive Arm Actuator RH Assembly
$42.79

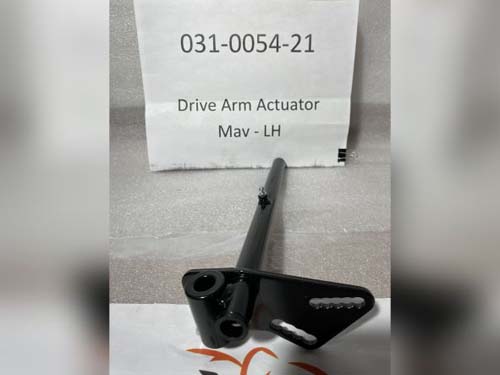

16 031-0054-21 031-0054-21 - 2021-2022 Maverick Drive Arm Actuator LH Assembly
$42.79

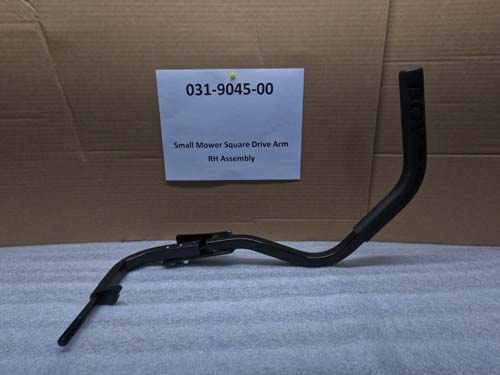

17 031-9045-00 031-9045-00 - Small Mower Square Drive Arm RH Assembly
$53.49

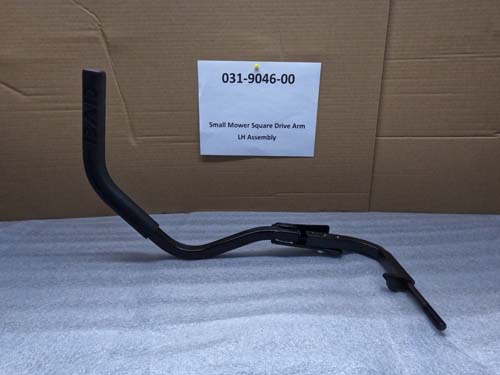

18 031-9046-00 031-9046-00 - Small Mower Square Drive Arm LH Assembly
$42.79
19 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
20 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
21 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
22 070-2501-00 070-2501-00 - 2025 MZ-Avenger 54-60 Frame--Orange
$899.99
23 077-8075-00 077-8075-00 - Rail Mount Safety Switch
$6.59
24 087-0004-00 087-0004-00 - ZT Avenger Steering Dampener
$70.97
