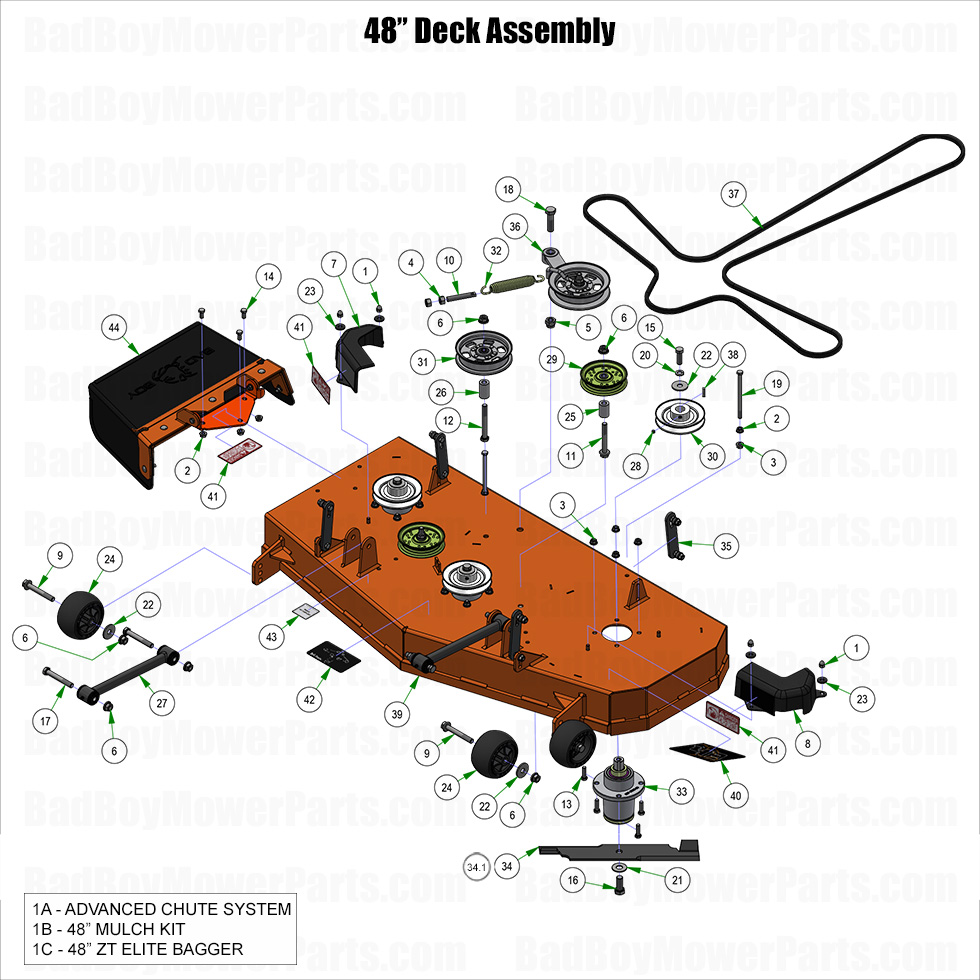

2025 ZT Elite - 48" Deck Assembly

2025 ZT Elite - 48" Deck Assembly

The 2025 ZT Elite 48" Deck Assembly provides precision cutting with durability and efficiency. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts, including deck spindles, cutting blades, idler pulleys, and belt kits to keep your cutting deck operating smoothly. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements for long-term use. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary deck components for easy installation. Maintaining your deck assembly ensures even cutting, reduces vibration, and extends the lifespan of critical mower components. We stock Bad Boy Parts Online for quick replacements and fast shipping. Plus, with Free Shipping On Orders Over $100, keeping your 2025 ZT Elite 48" Deck Assembly in excellent condition is now more cost-effective. Order today for superior cutting performance and durability.

Bad Boy Mower Parts Lookup

2025 ZT Elite - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$249.00
1B 210-0248-50 210-0248-50 - 2017- 2025 48" Mulch Kit w/Blades (Not for Avenger and MZ)
$318.45
1C 092-4001-23 092-4001-23 Top Discharge Bagger (2017-2025 48" Maverick & Maverick HD)
$2399.99
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
5 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 014-4025-00 014-4025-00 - Extra Small Pulley Cover - Right (See Models Used On For Details)
$17.86
8 014-4026-00 014-4026-00 - Extra Small Pulley Cover - Left
$17.86
9 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
10 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
11 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
12 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
13 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
14 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
15 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
16 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
17 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99

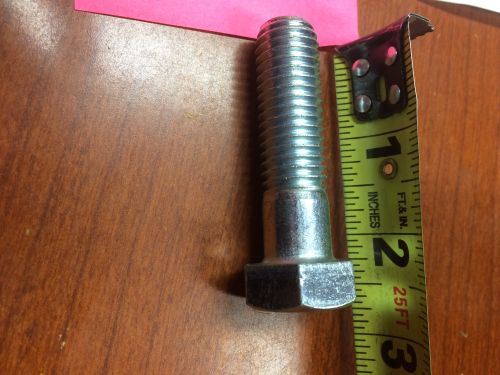

18 018-6058-00 018-6058-00 - 5/8-11 X 2-1/4 Hex Bolts
$2.99
19 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
20 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
21 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
22 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
23 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
24 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
25 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
26 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
27 028-0004-22 028-0004-22 - Hybrid Turnbuckle/Deck Locator
$46.84
28 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
29 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
30 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
31 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
32 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
33 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
34.1 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
34 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
35 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
37 041-1470-00 041-1470-00 - B147 Deck Belt (See Models Used On For Details)
$87.39
38 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
40 091-0532-00 091-0532-00 - 48" Grip Deck Decal
$5.49
41 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
42 091-3309-00 091-3309-00 - Deck Belt Route Decal
$6.41
43 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
44 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
