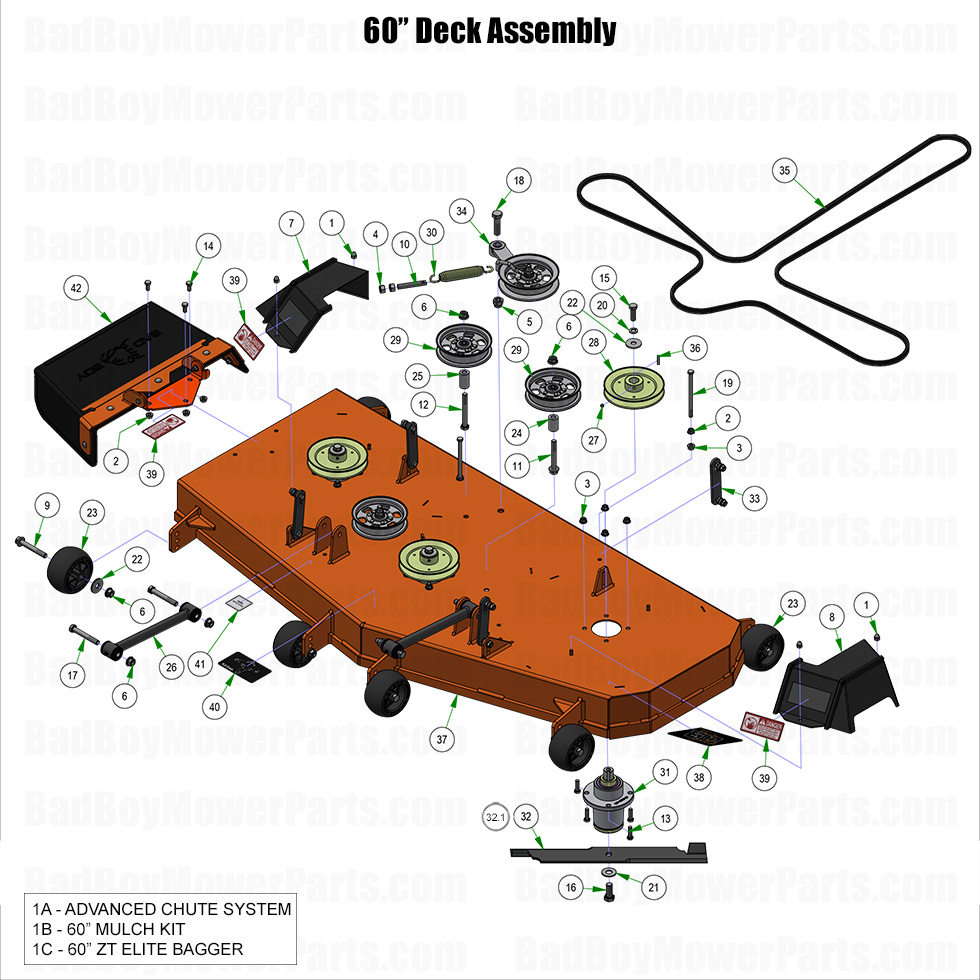

2025 ZT Elite - 60" Deck Assembly

2025 ZT Elite - 60" Deck Assembly

The 2025 ZT Elite 60" Deck Assembly provides a wider cutting path, increasing efficiency for large-scale mowing. At BadBoyMowerParts.com, we stock top-quality Bad Boy Mower Parts, including deck spindles, belt kits, reinforced blades, and idler pulleys to maintain optimal performance. Our Bad Boy Lawn Mower Parts inventory ensures that you receive factory-grade replacements built for durability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary deck components for seamless installation. A properly maintained deck assembly enhances cutting precision, minimizes belt wear, and extends mower lifespan. We offer Bad Boy Parts Online for quick replacements and fast shipping. Plus, with Free Shipping On Orders Over $100, keeping your 2025 ZT Elite 60" Deck Assembly in top shape is now more affordable. Order today for professional-grade mowing efficiency.

Bad Boy Mower Parts Lookup

2025 ZT Elite - 60" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1B 210-0260-50 210-0260-50 - 2017-2025 60" Mulch Kit w/Blades (Not for MZ or Avenger)
$318.45
1C 092-4006-23 092-4006-23 Top Discharge Bagger (2017-2025 60" ZT Elite, Maverick & Maverick HD)
$2399.99
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
5 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 014-5020-00 014-5020-00 - 2021-2022 Maverick 54"/60" RH Pulley Cover
$28.39
8 014-5021-00 014-5021-00 - 2021-2022 Maverick 54"/60" LH Pulley Cover
$28.39
9 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
10 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
11 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
12 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
13 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
14 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
15 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
16 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
17 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
18 018-6058-00 018-6058-00 - 5/8-11 X 2-1/4 Hex Bolts
$2.99
19 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
20 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
21 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
22 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
23 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
24 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
25 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
26 028-0004-22 028-0004-22 - Hybrid Turnbuckle/Deck Locator
$46.84
27 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
28 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
29 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
30 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
31 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
32.1 038-6003-00 038-6003-00 - 60" Gator Mulching Blade & 2023-2025 Revolt SD 42"
$22.99
32 038-6060-00 038-6060-00 - 60" High Lift Fusion Blade & 2023-2025 Revolt SD 42"
$22.99
33 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
35 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
36 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
38 091-0534-00 091-0534-00 - 60" Grip Deck Decal
$10.99
39 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
40 091-3309-00 091-3309-00 - Deck Belt Route Decal
$6.41
41 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
42 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
