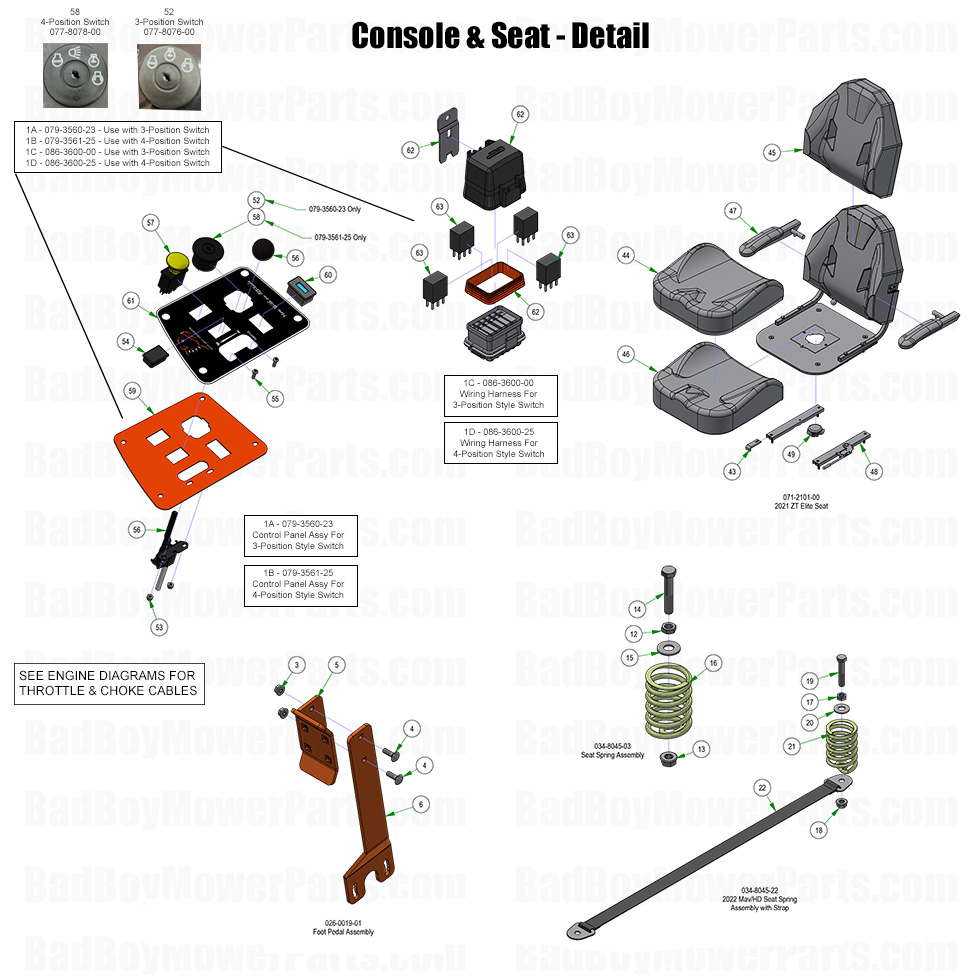

2025 ZT Elite - Console & Seat - Detail

2025 ZT Elite - Console & Seat - Detail

The 2025 ZT Elite Console & Seat - Detail system ensures maximum comfort and control while operating your mower. At BadBoyMowerParts.com, we provide top-quality Bad Boy Mower Parts, including replacement seats, console panels, control switches, and mounting hardware to enhance your mowing experience. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for durability and ease of use. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct console and seat components for seamless installation. A properly maintained seat reduces operator fatigue, while a functional console provides precise control and ease of access to mower functions. We offer Bad Boy Parts Online for quick replacements and fast shipping. Plus, with Free Shipping On Orders Over $100, upgrading your 2025 ZT Elite Console & Seat - Detail system is now more affordable. Order today for a more comfortable and efficient mowing experience.

Bad Boy Mower Parts Lookup

2025 ZT Elite - Console & Seat - Detail
  Position Number SKU Product Title Price
0 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
1C 086-3600-00 086-3600-00 - Wiring Harness With Clips (See Models Used On For Details)
$299.99
3 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
4 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
5 026-0019-00 026-0019-00 - Shallow Foot Pedal (See Models Used On For Detail)
$31.22
6A 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
6 031-0500-00 031-0500-00 - 2017-2024 Deck Pedal Lever (See Models Used On For Detail)
$31.22
12 013-0017-00 013-0017-00 - 3/8-16 Half Jam Nut
$2.99
13 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
14 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
15 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
16A 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
16 034-8045-00 034-8045-00 - Seat Spring
$20.49
21A 034-8045-22 034-8045-22 - 2022 Mav/HD seat spring assembly with st
$32.09
22 064-8083-00 064-8083-00 Seat Strap w/Buckles
$24.60

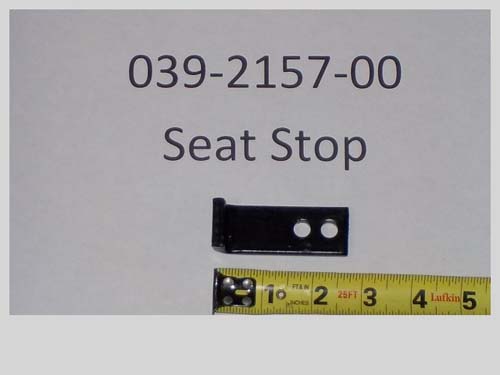

43 039-2157-00 039-2157-00 - Black Seat stop
$14.19
44A 071-2101-00 071-2101-00 - 2021-2024 ZT Elite Seat
$625.99
45 071-2101-02 071-2101-02 - Back Cover for 071-2101-00
$96.29
46 071-2102-02 071-2102-02 - Seat Cover (See Models Used On For Details)
$131.37
47 071-2102-05 071-2102-05 - Arm rest Kit for 071-2102-00
$139.99
48 071-5015-00 071-5015-00 - Seat Rails
$93.69
49 071-8061-00 071-8061-00 - Seat Switch (See Models Used On For Detail)
$19.14
52 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
53 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
54 018-1040-00 018-1040-00 - Light Plug
$2.99
55 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
57 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
58 077-8078-00 077-8078-00 - 4-Way Key Switch
$11.76
59 079-3461-00 079-3461-00 - Control Panel--Orange
$23.53
61 091-4072-00 091-4072-00 - Control Panel Decal
$9.89
62 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
63 086-1202-19 086-1202-19 - Relay Terminal
$24.97
