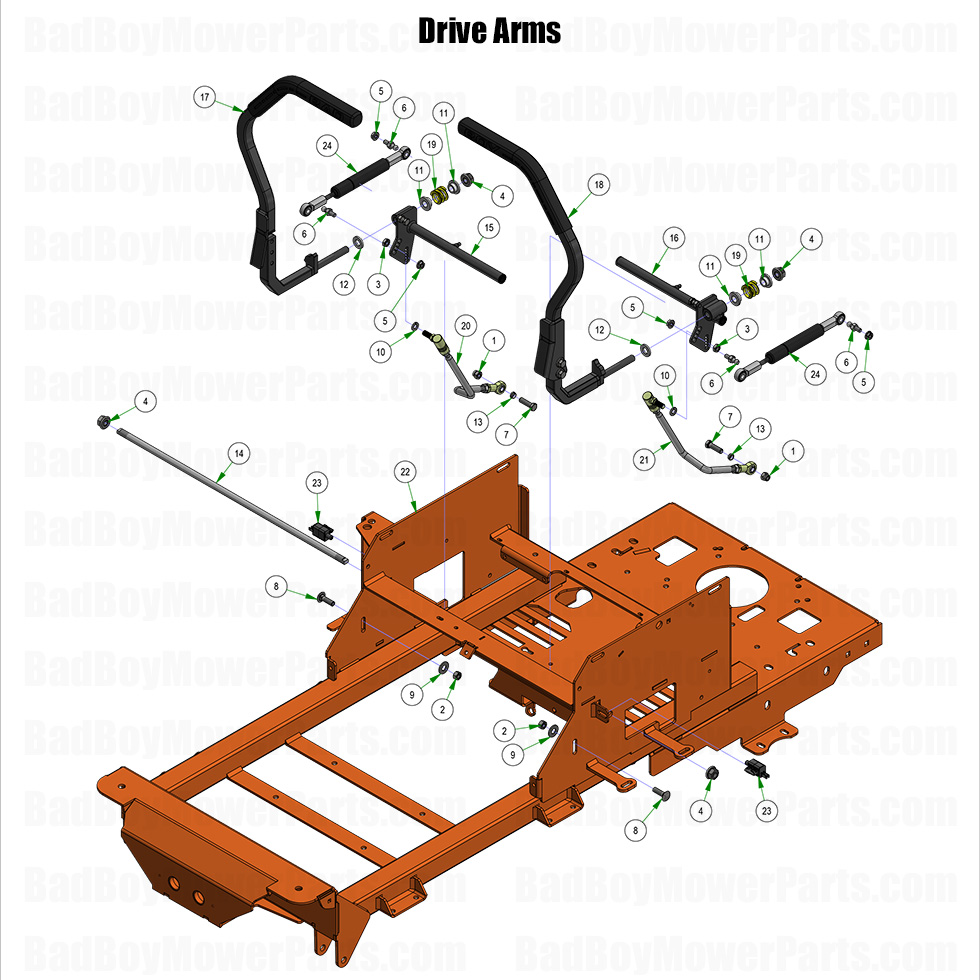

2025 ZT Elite - Drive Arms

2025 ZT Elite - Drive Arms

The 2025 ZT Elite Drive Arms system plays a key role in controlling the mower’s movement and stability. At BadBoyMowerParts.com, we provide premium Bad Boy Mower Parts, including replacement drive arms, pivot brackets, hydraulic hoses, and securing hardware to ensure peak performance. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements for reliability and durability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct drive arm components for seamless installation. Proper maintenance of the drive arms ensures smooth steering, enhances maneuverability, and reduces strain on the hydraulic system. We stock Bad Boy Parts Online for quick replacements and easy ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 ZT Elite Drive Arms is now more affordable. Order today to keep your mower operating smoothly.

Bad Boy Mower Parts Lookup

2025 ZT Elite - Drive Arms
  Position Number SKU Product Title Price
1 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
2 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
3 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
6 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
7 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
8 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
9 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
10 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
11 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
12 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
13 025-0036-00 025-0036-00 - Drive Arm Transaxle Spacer
$5.49
14 028-0049-00 028-0049-00 - 2021 Maverick Steering Actuator Rod
$21.39
15 031-0053-21 031-0053-21 - 2021-2022 Maverick Drive Arm Actuator RH Assembly
$42.79
16 031-0054-21 031-0054-21 - 2021-2022 Maverick Drive Arm Actuator LH Assembly
$42.79

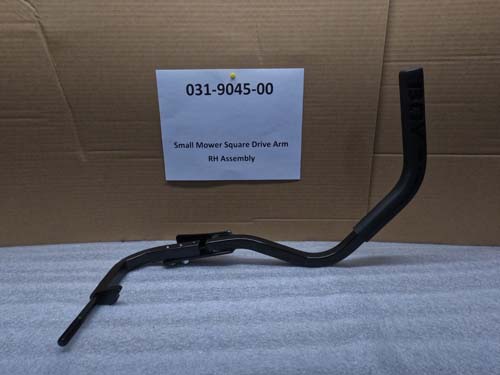

17 031-9045-00 031-9045-00 - Small Mower Square Drive Arm RH Assembly
$53.49

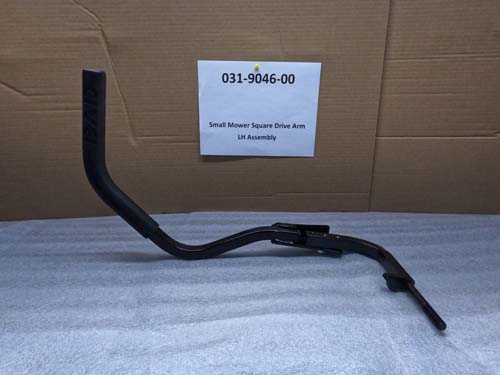

18 031-9046-00 031-9046-00 - Small Mower Square Drive Arm LH Assembly
$42.79
19 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
20 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
21 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
23 077-8075-00 077-8075-00 - Rail Mount Safety Switch
$6.59
24 087-0001-00 087-0001-00 - Steering Damper (See Models Used On For Details)
$62.40
