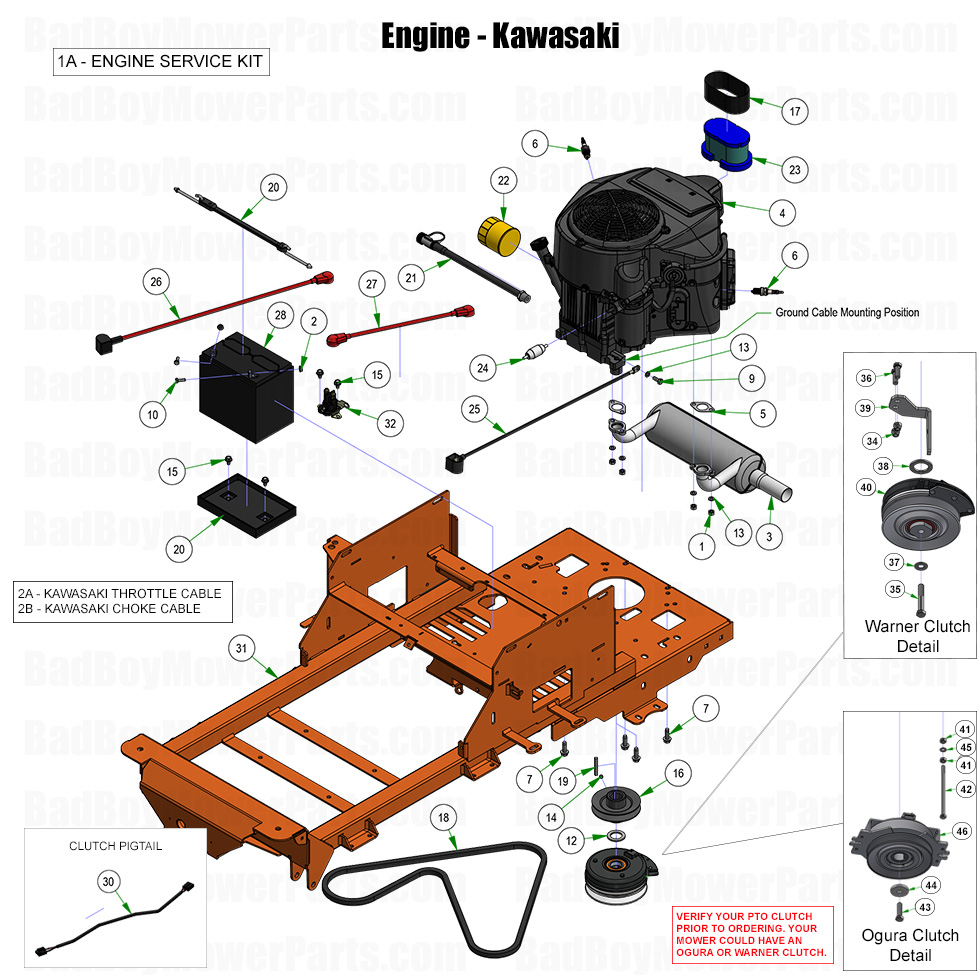

2025 ZT Elite - Engine - Kawasaki

2025 ZT Elite - Engine - Kawasaki

The 2025 ZT Elite Engine - Kawasaki is built for power and durability, making routine maintenance essential. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts, including fuel filters, oil filters, cooling components, and ignition parts to keep your engine operating efficiently. Our Bad Boy Lawn Mower Parts inventory provides factory-grade replacements for reliability and peak performance. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct engine components for fast installation. Regular maintenance improves fuel economy, enhances power output, and prevents unexpected engine failures. We stock Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 ZT Elite Engine - Kawasaki is now more cost-effective. Order today for long-lasting power and smooth mowing operations.

Bad Boy Mower Parts Lookup

2025 ZT Elite - Engine - Kawasaki
  Position Number SKU Product Title Price
1A 063-2000-01 063-2000-01 - Kawasaki FR & FS Service Kit
$88.25
1 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
3 015-0052-00 015-0052-00 - Kawasaki Exhaust MZ/ZT/Maverick/Compact Outlaw (See Models Used On For Details)
$217.48
4 015-0090-00 015-0090-00 - FR730V-S16 Kawasaki Engine 1.125" Shaft for ZT
$2299.99
5 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
6 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
7 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
9 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
10 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
12 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
13 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
14 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
15 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
16 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
17 063-2098-00 063-2098-00 - Kawasaki Pre Cleaner for 063-2097-00 Filter
$8.24
18 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
19 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
20 043-8930-98 043-8930-98 - 2023-2024 Battery Hold Down Assembly Strap
$26.74
21 051-5404-00 051-5404-00 - Kawasaki Oil Drain (See Models Used On For Details)
$42.58
22 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
23 063-2097-00 063-2097-00 - 22-26 Kaw Air Filter FR Engine
$25.67
24 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
25 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
26 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
27 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
30 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
32 108-0001-00 108-0001-00 - Solenoid
$29.41
34 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
35 018-5300-21 018-5300-21 - 7/16-20x2.5 Hex Bolt GR 8 W/ Patch
$3.73
36 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
37 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
39 039-0267-00 039-0267-00-ZT Clutch Bracket-Plated
$21.39
40 070-0059-00 070-0059-00 - 120 Ft Lb. Clutch- 1 1/8 Shaft
$359.99
41 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
42 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
43 018-5450-21 018-5450-21 - 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch
$2.99
44 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
46 070-0056-00 070-0056-00 - PTO Clutch (See Models Used On For Details)
$364.84
