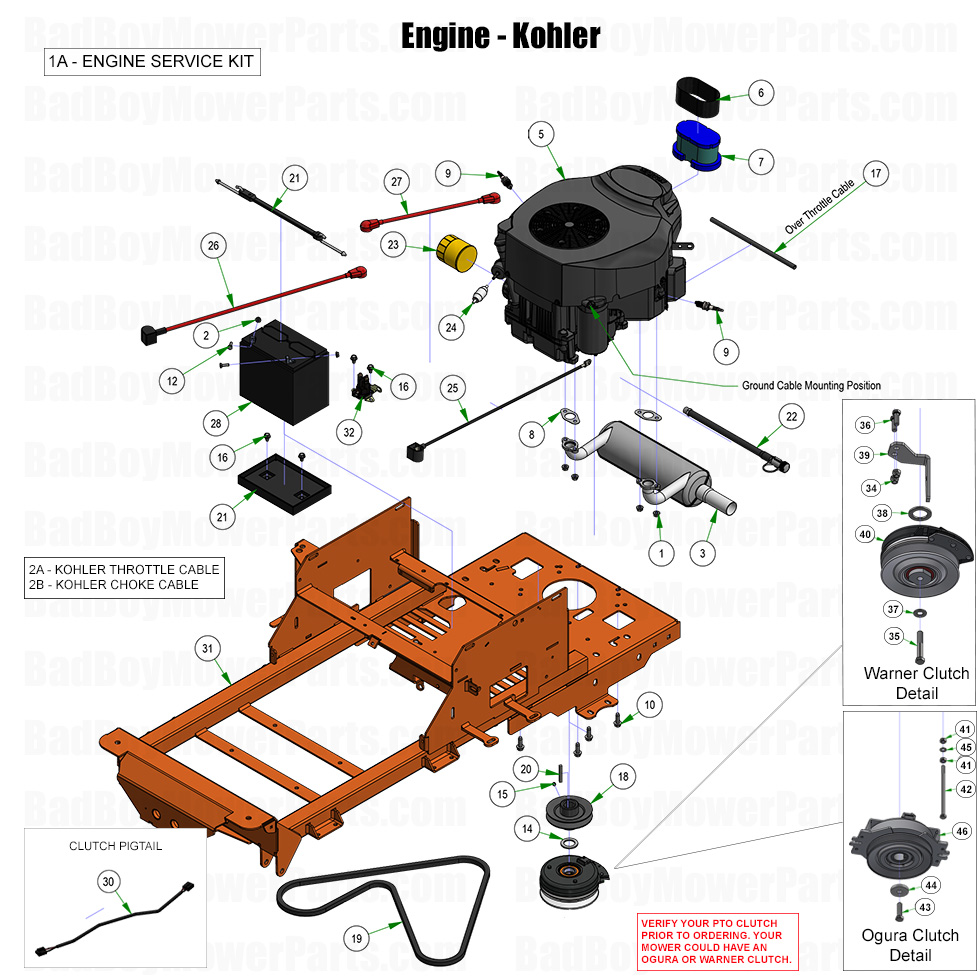

2025 ZT Elite - Engine - Kohler

2025 ZT Elite - Engine - Kohler

The 2025 ZT Elite Engine - Kohler provides exceptional durability and performance, making maintenance a priority for optimal operation. At BadBoyMowerParts.com, we supply premium Bad Boy Mower Parts, including fuel system components, spark plugs, air filters, and oil filters to keep your engine in peak condition. Our Bad Boy Lawn Mower Parts inventory ensures that you find factory-grade replacements designed for long-term use. Using our Bad Boy Mower Part diagrams, you can quickly identify and order the necessary engine parts for seamless repairs. Routine maintenance prevents overheating, improves fuel efficiency, and extends engine life. We offer Bad Boy Parts Online for fast replacements and easy ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 ZT Elite Engine - Kohler is now more affordable. Order today to keep your mower running smoothly for years to come.

Bad Boy Mower Parts Lookup

2025 ZT Elite - Engine - Kohler
  Position Number SKU Product Title Price
1A 063-2000-12 063-2000-12 - Engine Service Kit For Kohler 7000 Series PRO
$106.06
1 013-8240-00 013-8240-00 - M8 Nut For Exhaust (See Models Used On For Details)
$7.36
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
3 015-0051-00 015-0051-00 - 2017-2024 Kohler Exhaust MZ/ZT/Maverick
$217.48
5 015-2022-00 015-2022-00 - KT726-3004 Kohler Engine 1 1/8" Shaft
$1649.99
6 015-2026-02 015-2026-02 - Air Pre-Cleaner for Kohler
$10.91
7 015-2026-03 015-2026-03 - Air Filter Element for Kohler
$37.44
8 015-2751-00 015-2751-00 - Exhaust Gasket for 27,30 hp Kohler Engines
$6.56
9 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
10 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
12 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
14 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
15 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
16 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
17 032-6000-00 032-6000-00 - Cut 12" Heat Sleeve
$2.99
18 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
19 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
20 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
21 043-8930-98 043-8930-98 - 2023-2024 Battery Hold Down Assembly Strap
$26.74
22 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
23 063-5004-00 063-5004-00 - Oil Filter for Kohler KT725, KT740, KT745, ZT740, CV749 & ECV749 Engines
$29.69
24 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
25 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
26 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
27 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
30 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
32 108-0001-00 108-0001-00 - Solenoid
$29.41
34 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
36 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
37 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
39 039-0267-00 039-0267-00-ZT Clutch Bracket-Plated
$21.39
40 070-0059-00 070-0059-00 - 120 Ft Lb. Clutch- 1 1/8 Shaft
$359.99
41 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
42 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
43 018-5450-00 018-5450-00 - 7/16-20 x 1 1/2 Fine Thread Bolt Gr8
$2.99
44 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
45 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
46 070-0056-00 070-0056-00 - PTO Clutch (See Models Used On For Details)
$364.84
352 018-5300-21 018-5300-21 - 7/16-20x2.5 Hex Bolt GR 8 W/ Patch
$3.73
