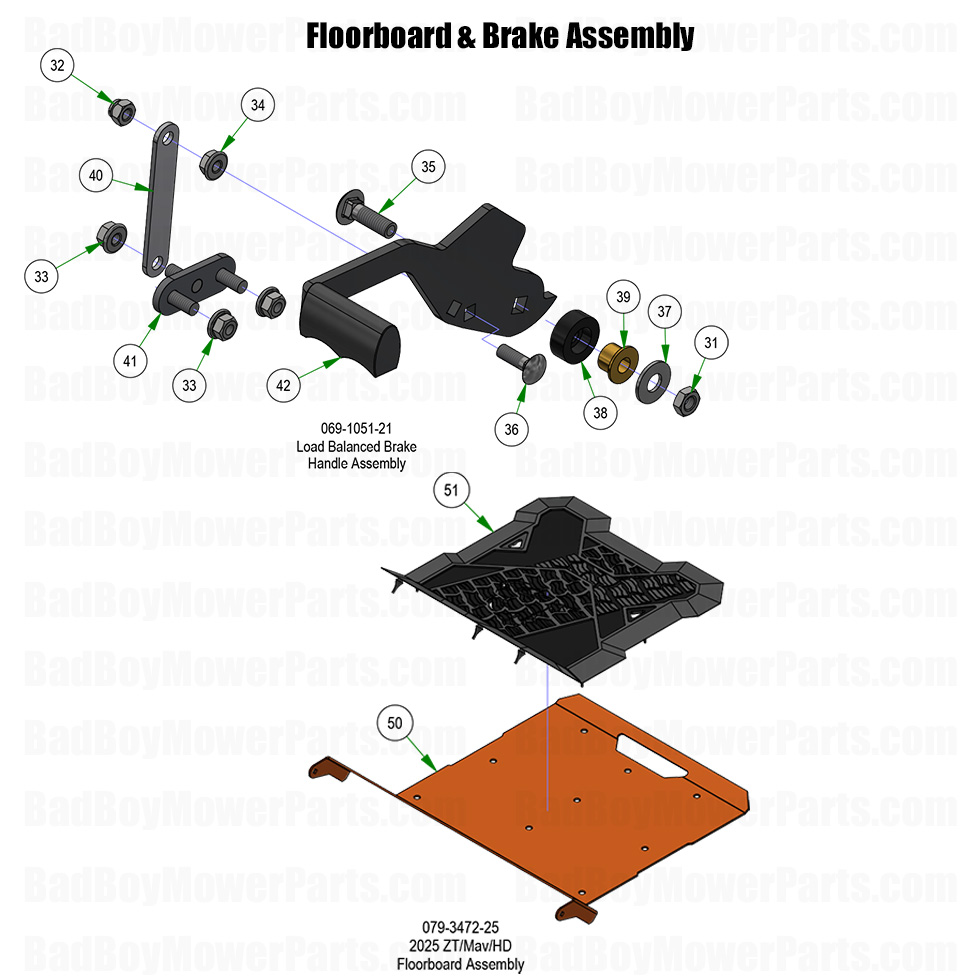

Click Image to Change Diagram
The 2025 ZT Elite Floorboard & Brake Assembly plays a vital role in operator comfort and mower control, making regular maintenance essential. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts, including brake pedals, footplates, mounting brackets, and securing hardware for durability and functionality. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements that improve stability and control. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct floorboard and brake components for fast installation. A well-maintained brake assembly enhances safety, improves stopping power, and extends the lifespan of key components. We stock Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 ZT Elite Floorboard & Brake Assembly is now more cost-effective. Order today for improved control and long-term reliability.
![]() |
Position Number | SKU | Product Title | Price | ||
---|---|---|---|---|---|
31 | 013-0012-00 | 013-0012-00 - 3/8-16 Centerlock Half Nut |
$3.29
|
||
32 | 013-8042-00 | 013-8042-00 - 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap) |
$2.99
|
||
33 | 013-8049-00 | 013-8049-00 - 5/16-18 Nylon Flange Nut |
$2.99
|
||
34 | 013-9002-00 | 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations |
$2.99
|
||
35 | 018-5043-00 | 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt |
$2.99
|
||
36 | 018-8065-00 | 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc |
$2.99
|
||
37 | 019-5029-00 | 019-5029-00 - 3/8 USS Flat Washer Zinc |
$2.99
|
||
38 | 025-0001-00 | 025-0001-00 - Brake Lever Spacer (See Models Used On For Detail) |
$8.01
|
||
39 | 032-5053-00 | 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing |
$2.99
|
||
40 | 039-0170-00 | 039-0170-00 - Brake Cable Extension Plate |
$10.99
|
||
41 | 039-0171-00 | 039-0171-00 - Brake Load Balancer Weldment |
$10.99
|
||
42A | 069-1051-21 | 069-1051-21 - Load Balanced Brake Handle Assembly |
$70.97
|
||
42 | 069-1051-00 | 069-1051-00 - Load Balanced Brake Handle With Grip |
$64.19
|
