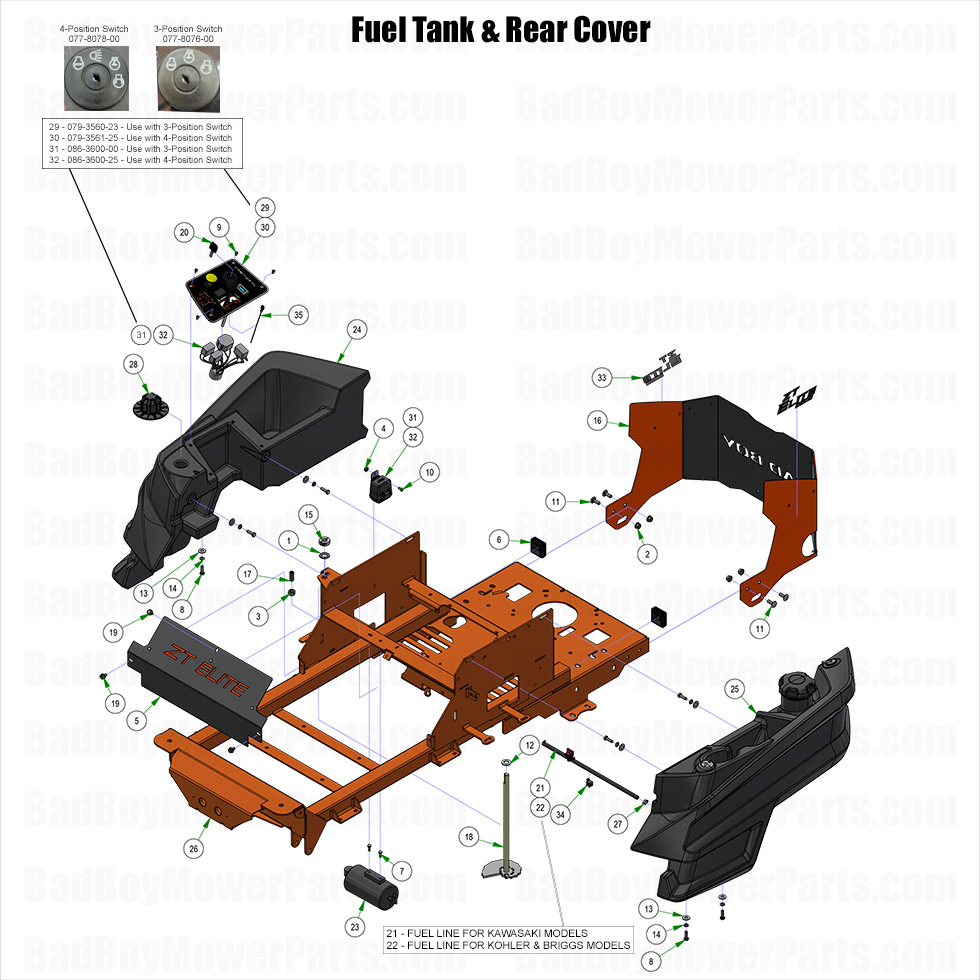

2025 ZT Elite - Fuel Tank & Rear Cover

2025 ZT Elite - Fuel Tank & Rear Cover

The 2025 ZT Elite Fuel Tank & Rear Cover system ensures safe fuel storage and protects vital mower components. At BadBoyMowerParts.com, we supply premium Bad Boy Mower Parts, including fuel tanks, caps, hoses, and rear covers for optimal durability and efficiency. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for seamless installation. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct fuel tank and rear cover components. A well-maintained fuel system prevents leaks, improves efficiency, and extends engine life. We stock Bad Boy Parts Online for quick replacements and easy ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 ZT Elite Fuel Tank & Rear Cover is now more affordable. Order today to keep your fuel system secure and your mower running efficiently.

Bad Boy Mower Parts Lookup

2025 ZT Elite - Fuel Tank & Rear Cover
  Position Number SKU Product Title Price
1 013-0080-00 013-0080-00 -.630 ID x 1.130 OD x.062 THK F/W Nylon Black
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
3 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
4 077-8078-00 077-8078-00 - 4-Way Key Switch
$11.76
4 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
5 014-3320-23 014-3320-23 - 2023 ZT Elite Cooler Cover Assembly
$74.89
6 014-9000-00 014-9000-00 - Frame Plug 2x2
$2.99
7 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
8 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
9 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
10 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
11 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
12 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
13 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
14 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
15 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
16 026-0225-00 026-0225-00 - 2022-2025 ZT Elite Rear Plate Assembly
$172.99
17 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
18 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
19 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
20 042-9000-00 042-9000-00 - Ignition Key
$4.06
23 067-0020-01 067-0020-01 - 2019-2025 ZT/Maverick EPA Cannister Assy, Also Fits 2019-2021 Compact Outlaw
$85.59
24 067-2020-00 067-2020-00 - 2021-2022 Maverick Right Side Tank
$248.99
25 067-2021-00 067-2021-00 - 2021-2024 Maverick Left Side Tank
$349.99
27 072-8076-00 072-8076-00 - 12.5mm/15mm OETIKER 2 Ear Clamp
$2.99
28 077-9000-00 077-9000-00 - Deck Height Dial (See Models Used On For Detail)
$21.39
31 086-3600-00 086-3600-00 - Wiring Harness With Clips (See Models Used On For Details)
$299.99
33 091-0511-00 091-0511-00 - MY24 ZT Elite Back Plate Decal
$2.99
35 216-1000-17 216-1000-17 - 2017-2024 MZ/ZT/MAV Tach Wire Assy
$7.28
