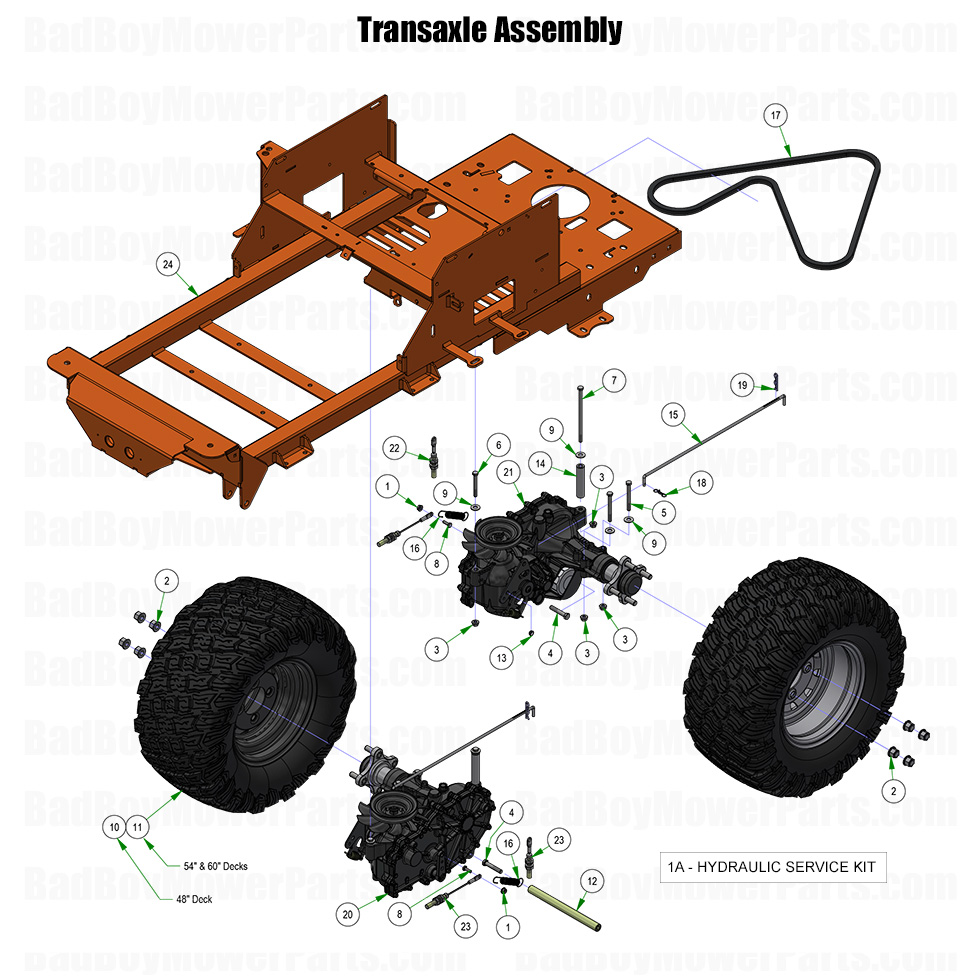

2025 ZT Elite - Transaxle Assembly

2025 ZT Elite - Transaxle Assembly

The 2025 ZT Elite Transaxle Assembly plays a vital role in maintaining speed, power, and control. At BadBoyMowerParts.com, we stock high-quality Bad Boy Mower Parts, including hydraulic transaxles, drive belts, seals, and gear components for superior performance. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements designed for durability and efficiency. Using our Bad Boy Mower Part diagrams, you can quickly identify and order the necessary transaxle assembly components for easy installation. A well-maintained transaxle system improves power transfer, enhances maneuverability, and extends mower lifespan. We offer Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2025 ZT Elite Transaxle Assembly is now more affordable. Order today for long-lasting performance and smooth operation.

Bad Boy Mower Parts Lookup

2025 ZT Elite - Transaxle Assembly
  Position Number SKU Product Title Price
1A 085-4051-01 085-4051-01 - Hydro Service Kit for 2021 & Newer ZT Avenger, ZT Elite & Maverick Models (Without Expansion Tanks)
$125.99
1 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
2 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
3 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
4 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
5 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
6 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
7 018-5355-00 018-5355-00 - 5/16-18 X 6 Hex Bolt Zinc
$2.99
8 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
9 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
10 022-2028-00 022-2028-00 - 22-10x10 Reaper Wheel/Tire Assembly
$229.99
11 022-2215-00 022-2215-00 - 22x11-10 Reaper Rear Black Assy
$229.99
12 025-0017-00 025-0017-00 - Transaxle Spacer (See Models Used On For Detail)
$14.04
13 025-0036-00 025-0036-00 - Drive Arm Transaxle Spacer
$5.49
14 025-0070-00 025-0070-00 - Transaxle Spacer
$6.41
15 028-0070-00 028-0070-00 - Neutral Rod
$12.48
16 034-1026-00 034-1026-00 - Brake Return Spring (See Models Used On For Details)
$14.19
17 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
18 044-2004-00 044-2004-00 - Bow Pin
$2.99
19 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
22 064-3050-21 064-3050-21 - 2021-2025 Load Balanced Brake Cable 1
$56.77
23 064-3051-21 064-3051-21 - 2021-2025 Load Balanced Brake Cable 2
$56.77
