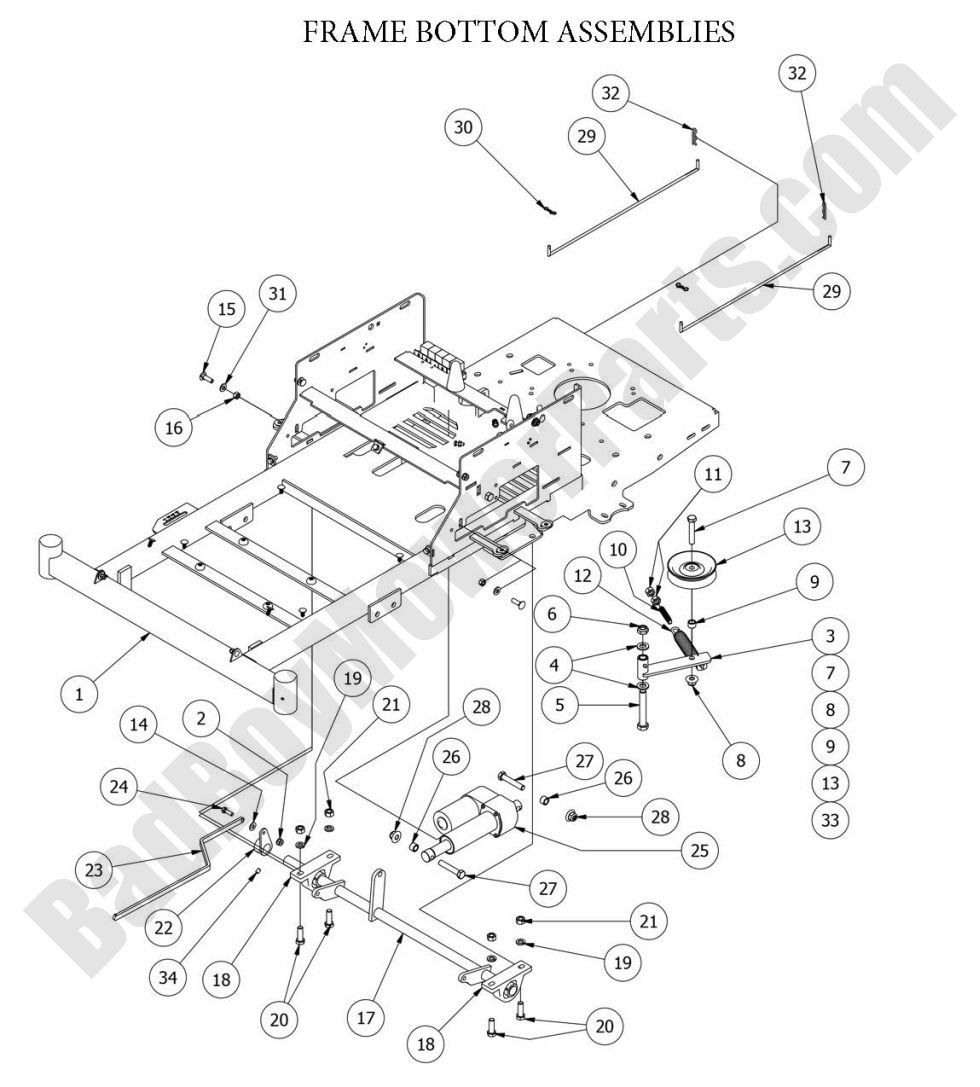

2014 CZT Elite - Bottom Frame Assembly

2014 CZT Elite - Bottom Frame Assembly

The 2014 CZT Elite Bottom Frame Assembly is a crucial structural component, ensuring your mower's durability and stability. BadBoyMowerParts.com provides high-quality Bad Boy Mower Parts, including reinforcements, brackets, and hardware, to maintain the integrity of your mower’s frame. Our Bad Boy Mower Part Diagrams help you easily identify the correct frame components for your specific model. A strong bottom frame assembly supports the deck, engine, and seating, contributing to overall performance. We also offer a comprehensive selection of Bad Boy Lawn Mower Parts to keep your mower in peak condition. Ordering Bad Boy Parts Online is simple, and with Free Shipping On Orders Over $100, you can repair and maintain your mower without extra shipping costs.

Bad Boy Mower Parts Lookup

2014 CZT Elite - Bottom Frame Assembly
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 070-5410-00 070-5410-00 - 2013-2015 CZT, 2013-2016 ZT Frame
$1199.99
2 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
3 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
4 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
5 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
6 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
7 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
8 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
9 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
10 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
11 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
12 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
13 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
14 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
15 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
16 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
17 028-4020-00 028-4020-00 - Actuator Bar (See Models Used On For Detail)
$66.29
18 017-7008-00 017-7008-00 - 1" Pillow Block Bearing (See Models Used On For Details)
$21.29
19 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
20 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
22 031-7000-00 031-7000-00 - Height Indicator Tab and Collar (See Models Used On For Details)
$11.29
24 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
25 035-7033-00 035-7033-00 - Actuator
$408.75
29 031-0060-00 031-0060-00 - 2012-2016 CZT/ZT, 2016-2018 Maverick, 2016-2021 Compact Outlaw Neutral Lever/Rod
$14.19
30 044-2004-00 044-2004-00 - Bow Pin
$2.99
31 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
32 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
33 039-5944-98 039-5944-98 - Pump Idler Assembly (obsolete)
use part #039-5944-01
$62.46
34 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
