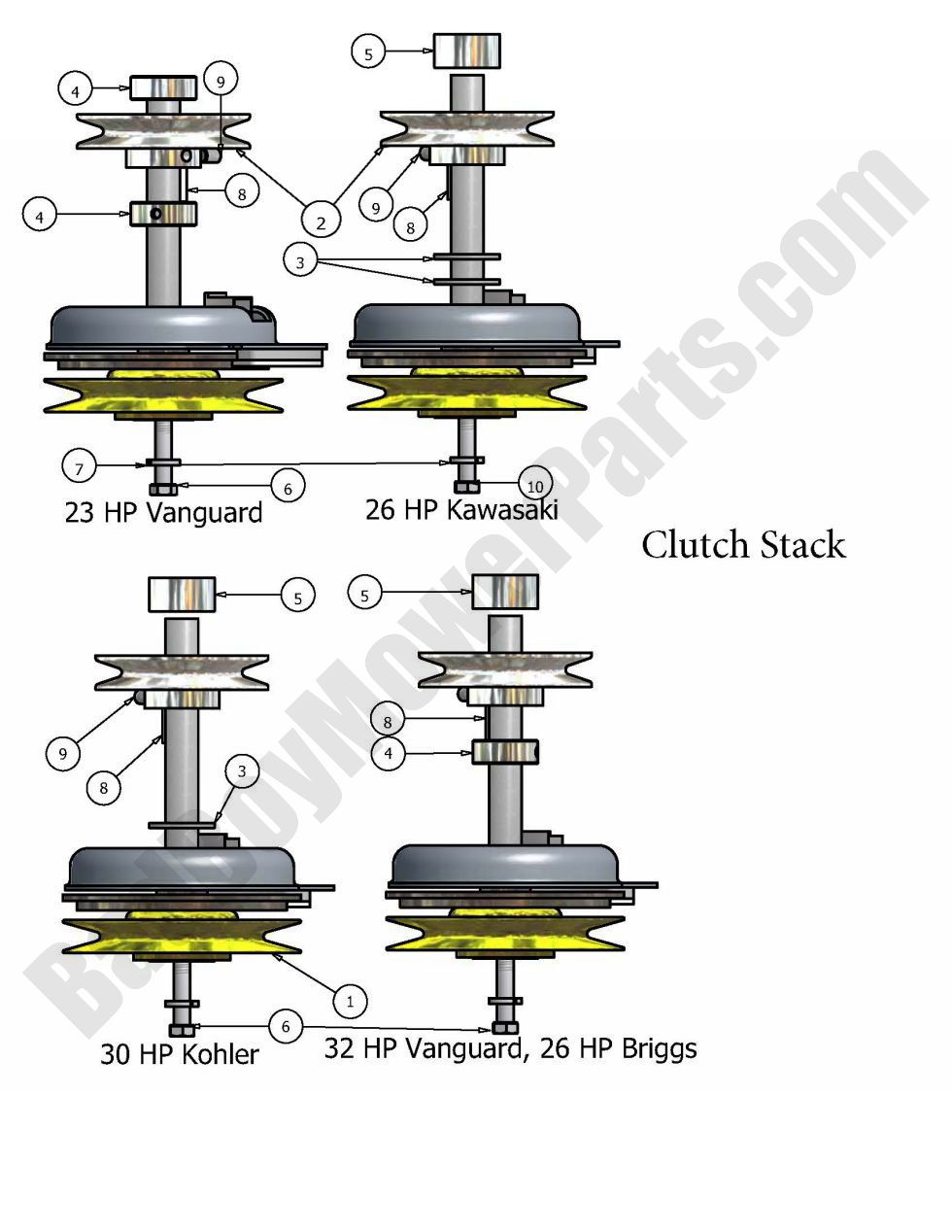

2007 Pup - Clutch Stack

2007 Pup - Clutch Stack

The 2007 Pup Clutch Stack is a key part of your mower’s power transmission system, and BadBoyMowerParts.com is the best place to find high-quality replacements. We offer a wide range of Bad Boy Mower Parts, including the clutch stack and related components for the 2007 Pup. Our Bad Boy Mower Part diagrams make locating the right clutch stack parts quick and easy. Keep your mower in top working condition with Bad Boy Lawn Mower Parts that are designed to offer durability and performance. By ordering Bad Boy Parts Online, you can have your clutch stack shipped directly to your door, ensuring minimal downtime for your mower. Take advantage of Free Shipping On Orders Over $100 to save on your mower repairs and maintenance.

Bad Boy Mower Parts Lookup

2007 Pup - Clutch Stack
  Position Number SKU Product Title Price
1 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
2 033-5034-00 033-5034-00 - 4 3/4 Motor Pulley - DB74-601 Comes with set screw only. Keyway IS NOT included. (See Models Used On For Details)
$35.48
3 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
4 025-5000-00 025-5000-00 - 1.125 ID X 1.750 OD X.625 THK Spacer Zinc
$7.69
5 025-6000-00 025-6000-00 - 1 1/8 x.910 Spacer (Clutch)
$12.77
6 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
7 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
8 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
9 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
10 018-5028-00 018-5028-00 - M10 X 1.5 X 60MM
$2.99
