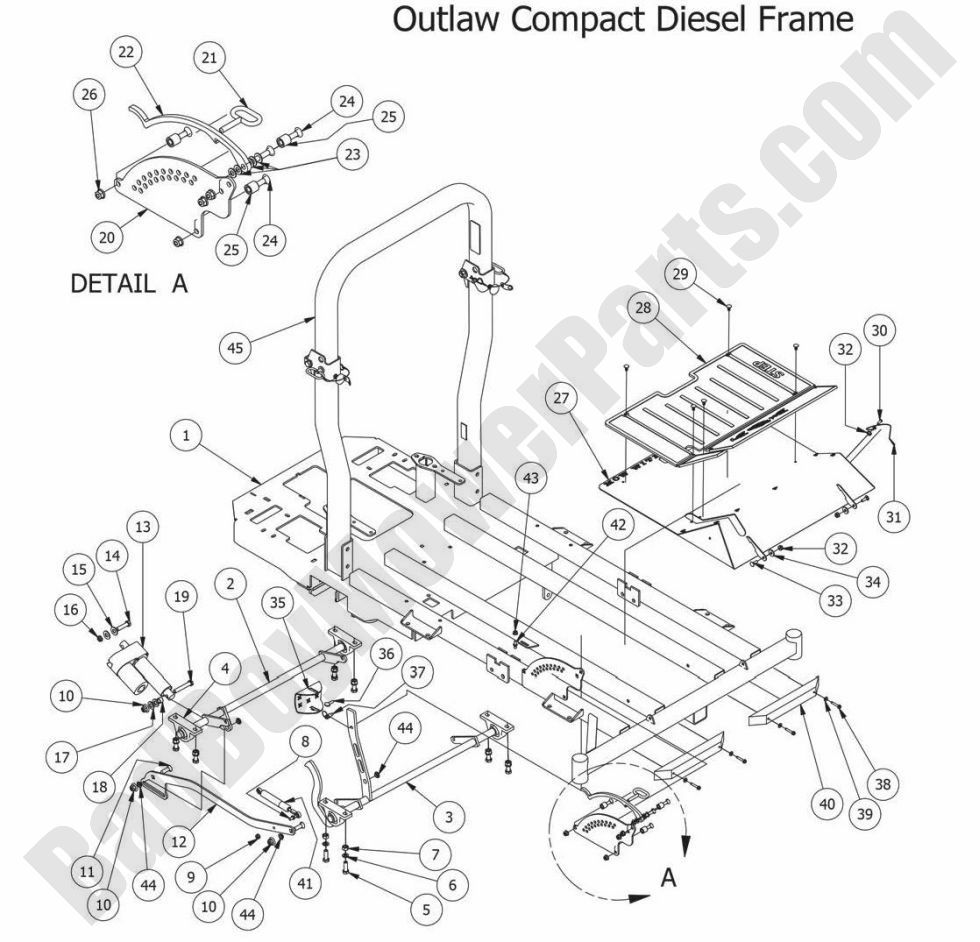

2014 Diesels - Compact Diesel Frame

2014 Diesels - Compact Diesel Frame

The 2014 Diesels Compact Diesel Frame provides a sturdy foundation for your mower, ensuring stability and support during operation. At BadBoyMowerParts.com, we stock high-quality Bad Boy Mower Parts to keep your frame in top condition. From frame reinforcements to mounting hardware, we offer everything you need for repair and replacement. Our Bad Boy Mower Part Diagrams make it easy to locate the exact parts for your compact diesel frame, so you can make repairs quickly and efficiently. A strong, properly maintained frame ensures your 2014 Diesels mower can handle tough mowing tasks without issues. In addition to frame parts, we provide a wide selection of Bad Boy Lawn Mower Parts to meet all your maintenance needs. Ordering Bad Boy Parts Online is quick and convenient, and with Free Shipping On Orders Over $100, you can keep your mower in excellent condition without worrying about extra shipping fees. Ensure the longevity of your 2014 Diesels Compact Diesel Frame with the right parts and regular upkeep.

Bad Boy Mower Parts Lookup

2014 Diesels - Compact Diesel Frame
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 070-5570-00 070-5570-00 - 2012-2014 Outlaw Diesel Frame
$1399.99
2 028-6020-00 028-6020-00 - Rear Actuator Bar Assy (See Models Used On For Detail)
$106.48
3 028-6010-00 028-6010-00 - Front Actuator Bar Assy (See Models Used On For Detail)
$142.99
4 017-7008-00 017-7008-00 - 1" Pillow Block Bearing (See Models Used On For Details)
$21.29
5 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
6 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
7 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
8 018-2055-00 018-2055-00 - 10mm Damper Stud-XP Linkage
$2.99
9 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
10 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
11 018-0008-00 018-0008-00 - 1/2 x 1 1/2 Carriage Bolt
$2.99
12 028-6055-00 028-6055-00 - Linkage Bar Suspension Frame (See Models Used On For Detail)
$28.39
13 035-7033-00 035-7033-00 - Actuator
$408.75
14 018-5049-00 018-5049-00 - 1/2-13 X 2 Hex Bolts Zinc
$2.99
15 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
16 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
17 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
18 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
19 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
21 040-4000-00 040-4000-00 - MZ, Diesel & Outlaw Deck Height Lever Pin
$17.16
22 031-0100-00 031-0100-00 - Deck Lever Lock (See Models Used On For Details)
$18.45
23 019-2003-00 019-2003-00 - .390 x .750 x .062 Nylon Washer
$2.99
24 018-0009-00 018-0009-00 - 3/8 x 1 3/4 Carriage Bolt
$2.99
25 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
26 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
27 079-3200-00 079-3200-00 - Outlaw Diesel Floor Panel
$64.19
28 081-2008-00 081-2008-00 - Foot Assist Floor Mat (See Models Used On For Details)
$66.76
29 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
30 018-8064-00 018-8064-00 - 1/4-20 X 5/8 BS C/S 18-8 SS
$2.99
31 064-2006-00 064-2006-00 - Floorboard Cable
$15.55
32 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
33 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
34 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
35 026-0013-00 026-0013-00 - 2010-2018 Outlaw & 2012-2018 Compact Diesel Deck Lift Pedal
$21.28
36 030-0010-00 030-0010-00 - 5/16-18 x 1 Thumb Screw Zinc (No Shoulder)
$3.29
37 040-5000-00 040-5000-00 - Pull Pin - Foot Assist w/Ring
$21.39
38 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
39 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
40 029-7037-00 029-7037-00 - 14" Bumper
$42.79
41 087-6100-00 087-6100-00 - 250lb Gas Spring - 61" Outlaw Deck Damper
$78.01
42 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
44 032-3000-00 032-3000-00 - Actuator Bar Bushing
$2.99
45 089-3050-00 089-3050-00 - 2 x 3 ROPS 2014-2015 - Diesel
$829.99
