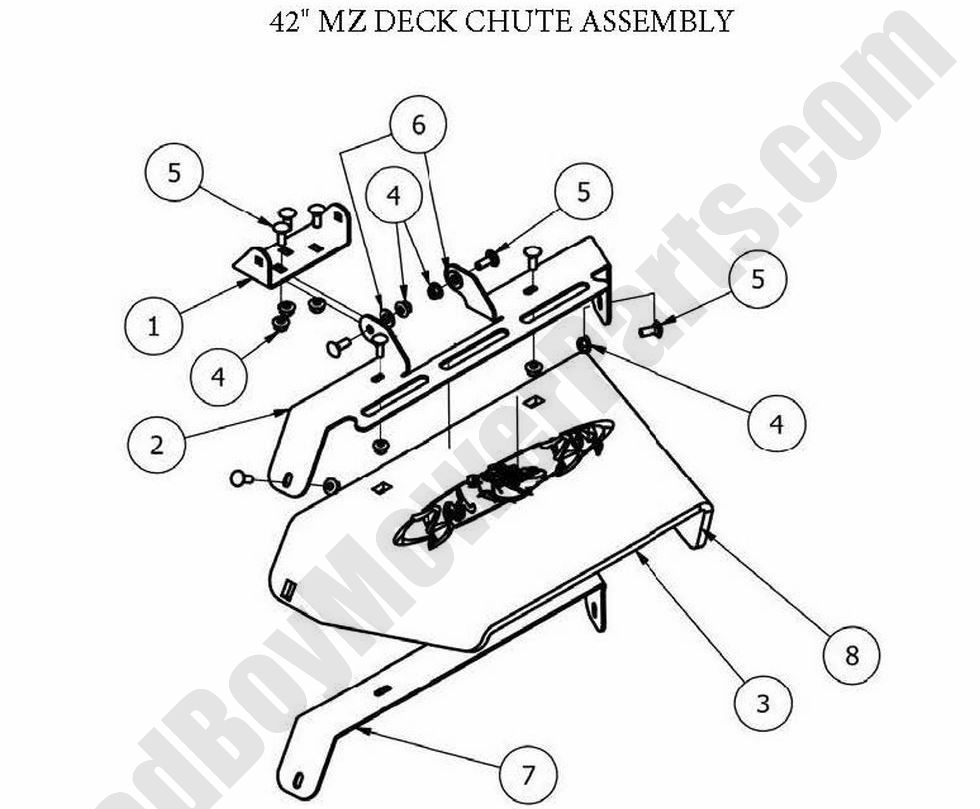

The Bad Boy Mower parts diagram for the 2013 MZ Deck Chute is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2013 MZ models. Find all of your Bad Boy mowers 2013 MZ parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2013 MZ Deck Chute. If you are not able to find the Bad Boy parts for your 2013 MZ please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.
Position Number | SKU | Product Title | Price | ||
---|---|---|---|---|---|
1 | 206-6020-00 | 206-6020-00 - Chute Hanger |
$28.39
|
||

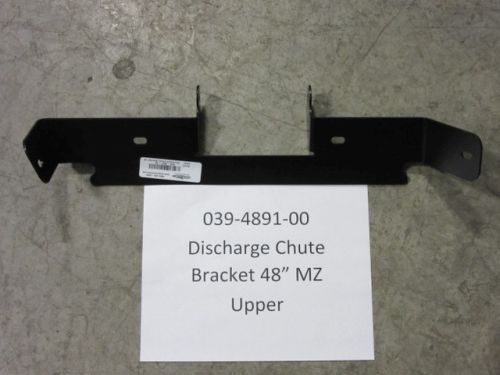

2 | 039-4891-00 | 039-4891-00 - Discharge Chute Bracket 48 MZ (Upper) |
$35.43
|
||
3 | 210-6015-00 | 210-6015-00 - Discharge Chute Rubber (See Models Used On For Detail) |
$53.49
|
||

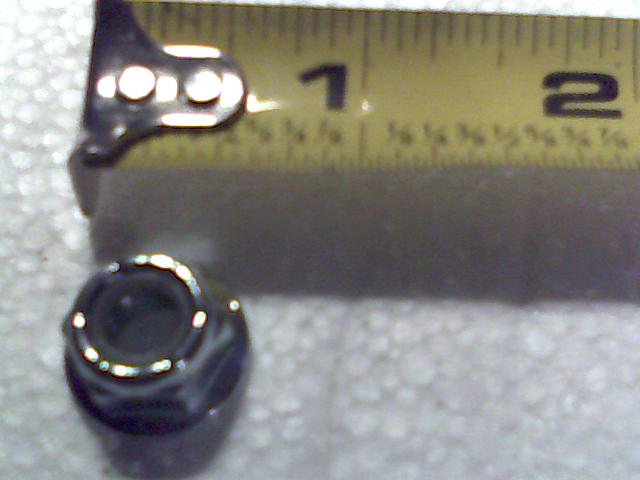

4 | 013-8049-00 | 013-8049-00 - 5/16-18 Nylon Flange Nut |
$2.99
|
||
5 | 018-8066-00 | 018-8066-00 - 5/16 x 7/8 Carriage Bolt |
$2.99
|
||

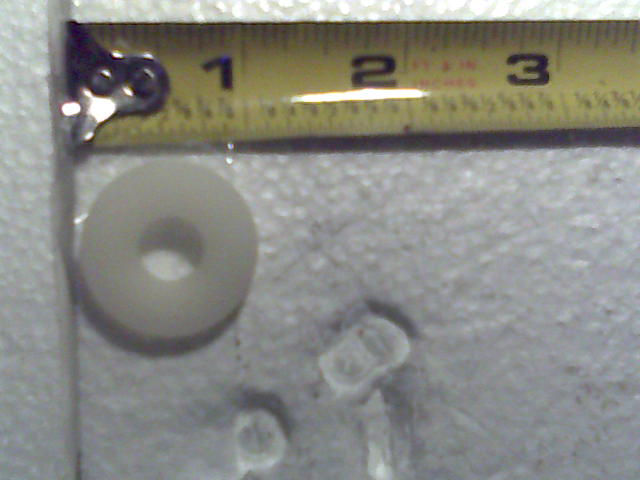

6 | 019-6042-00 | 019-6042-00 -.360 ID Plastic Washer |
$2.99
|
||

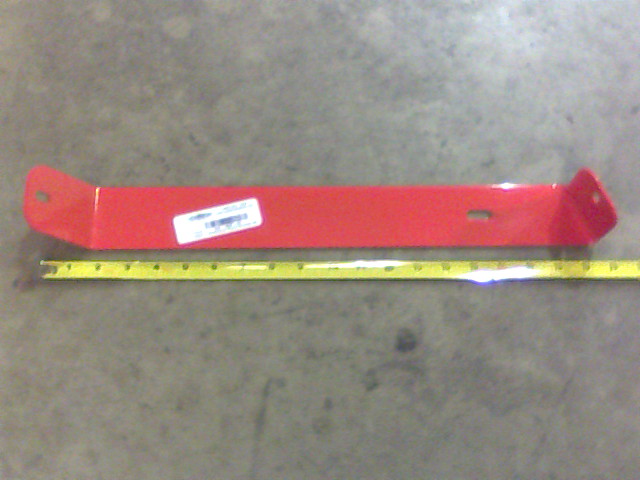

7 | 039-4890-00 | 039-4890-00 - Discharge Chute Bracket 48 MZ (Lower) |
$35.43
|
||
8 | 210-6015-98 | 210-6015-98 - Discharge Chute Assembly (See Models Used On For Detail) |
$156.17
|
