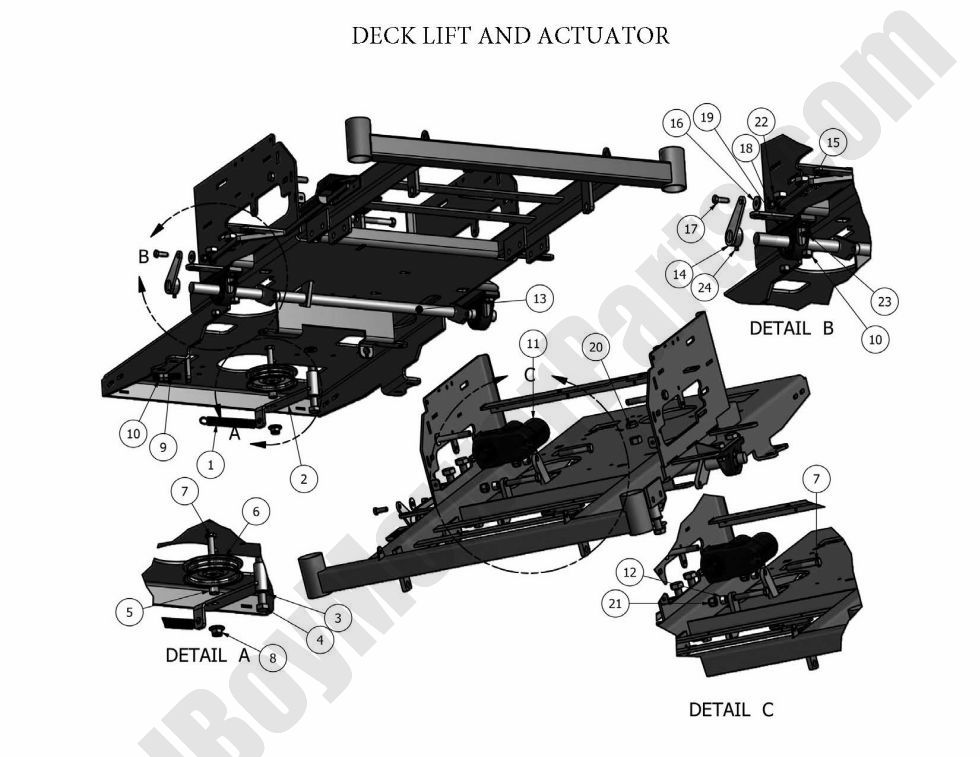

2011 CZT - Deck Lift & Actuator

2011 CZT - Deck Lift & Actuator

The 2011 CZT Deck Lift & Actuator is a vital part of your mower’s operation, allowing you to easily raise and lower the deck for various cutting heights. When it’s time to replace this important part, BadBoyMowerParts.com has you covered. We provide high-quality Bad Boy Mower Parts designed to keep your mower in top working condition. With our detailed Bad Boy Mower Part diagrams, finding the right 2011 CZT Deck Lift & Actuator replacement is quick and easy. From the actuator to the lift arms, our selection of Bad Boy Lawn Mower Parts ensures that your mower performs as it should. Shopping for Bad Boy Parts Online at our website is simple, and with Free Shipping On Orders Over $100, maintaining your mower has never been more affordable. Keep your 2011 CZT Deck Lift & Actuator functioning smoothly with our reliable, durable parts.

Bad Boy Mower Parts Lookup

2011 CZT - Deck Lift & Actuator
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 034-5039-00 034-5039-00 - OBSOLETE USE 034-2009-00 (obsolete)
use part #034-2009-00
$18.18
2 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
3 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
4 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
5 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
6 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
7 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
8 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
9 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
10 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
11 035-7033-00 035-7033-00 - Actuator
$408.75
13 028-4020-00 028-4020-00 - Actuator Bar (See Models Used On For Detail)
$66.29
14 031-7000-00 031-7000-00 - Height Indicator Tab and Collar (See Models Used On For Details)
$11.29
16 019-2003-00 019-2003-00 - .390 x .750 x .062 Nylon Washer
$2.99
17 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
18 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
19 017-7008-00 017-7008-00 - 1" Pillow Block Bearing (See Models Used On For Details)
$21.29
20 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
22 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
23 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
