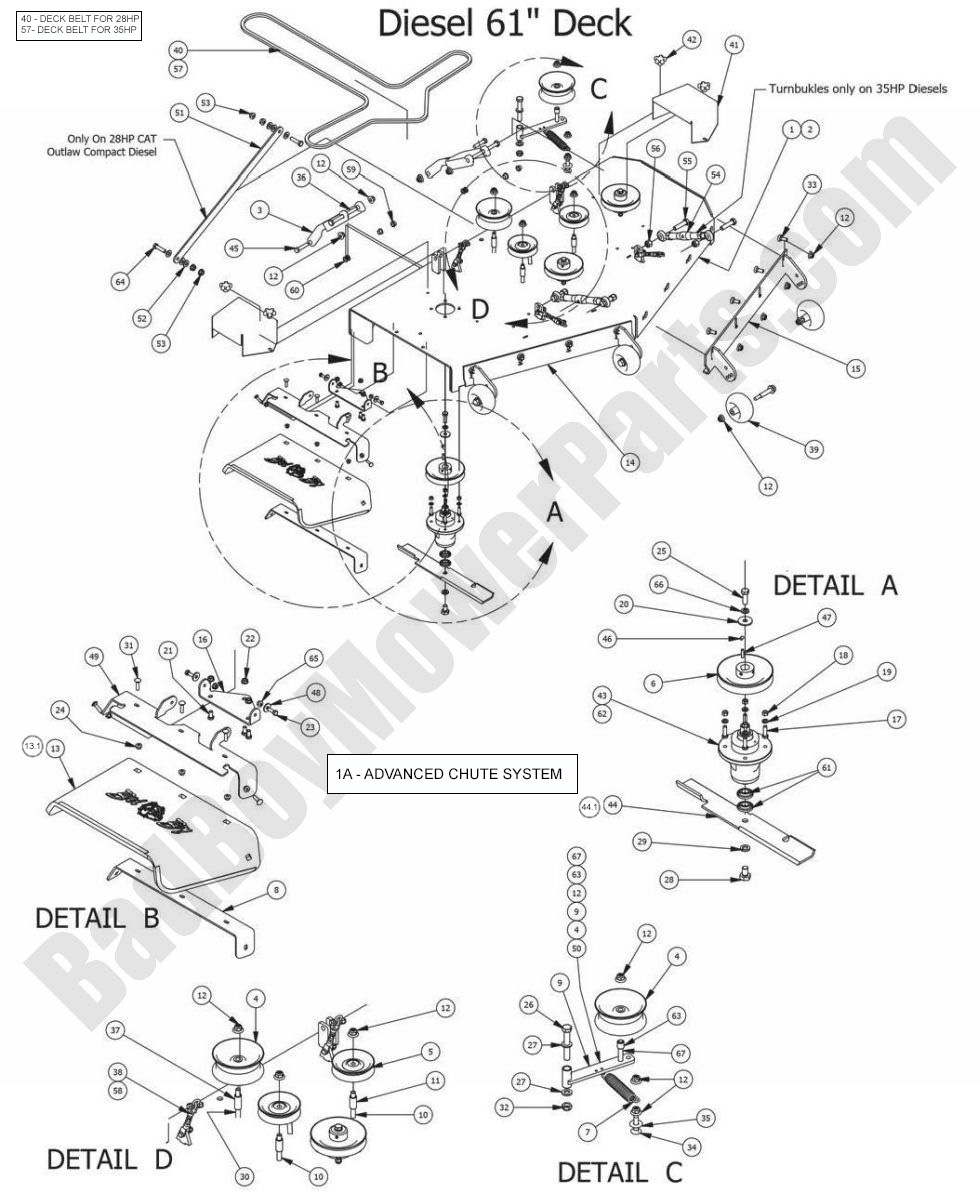

2014 Diesels - 61" Deck Assembly

2014 Diesels - 61" Deck Assembly

The 2014 Diesels 61" Deck Assembly is designed for precision and durability, allowing for efficient and even mowing. At BadBoyMowerParts.com, we offer a complete selection of Bad Boy Mower Parts to keep your mower deck functioning smoothly. Our Bad Boy Mower Part Diagrams make it easy to identify the right components for your 61" deck, from blades to spindles and deck lift arms. A well-maintained deck ensures even cutting and reduces the risk of mower damage. Along with deck assemblies, we carry a variety of Bad Boy Lawn Mower Parts for other mower systems, including engines, drive arms, and hydraulic components. Ordering Bad Boy Parts Online is convenient, and we offer Free Shipping On Orders Over $100, so you can get all the parts you need without worrying about extra shipping costs. Ensure your 2014 Diesels 61" Deck Assembly stays in top condition for the best performance by maintaining it with the right parts.

Bad Boy Mower Parts Lookup

2014 Diesels - 61" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6000-00 088-6000-00 - Advanced Chute System for Select 2007-2025 Models with 60", 61", and 72" Decks & 2014-Newer ZT/CZT/Maverick 54" Decks (Will Not Work on 54" Outlaw)
$249.00
1 060-6100-00 060-6100-00 - 61" Deck Shell (See Models Used On For Details)
$1461.53
2 060-6130-00 060-6130-00 - 2012-2018 61" AOS Diesel (35hp, 1500CC) Deck Shell
$1199.99
3 031-6010-00 031-6010-00 - Deck Hanger (One Piece) (obsolete)
use part #031-6020-00
$132.68
4 033-5000-00 033-5000-00 - 5 3/4" Double Bearing Flat Idler Pulley (See Description For Details)
$56.77
5 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
6 033-6004-00 033-6004-00 - 6 1/4" Spindle Deck Pulley (without set screw) (See Models Used On For Detail)
$35.48
7 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
8 039-4863-00 039-4863-00 - Discharge Lower Bracket Rubber Chute (See Models Used On For Detail)
$32.65
9 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
10 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
11 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
12 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
13.1 210-6005-98 210-6005-98 - Chute Assembly (See Models Used On For Detail)
$149.99
13 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
14 060-6220-00 060-6220-00 - 61 Adjustable Deck Front (Left Gate) (See Models Used On For Detail)
$103.99
15 060-6210-00 060-6210-00 - 61 Adjustable Deck Front (Right Gate) (See Models Used On For Detail)
$103.99
16 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
17 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
18 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
19 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
20 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
21 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
22 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
23 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
24 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
25 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
26 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
27 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
28 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
29 019-4807-00 019-4807-00 - 5/8" Lockwasher Zinc
$2.99
30 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
31 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
32 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
33 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
34 018-1050-00 018-1050-00 - 1/2 x 2 Carriage Bolt
$2.99
35 019-2040-00 019-2040-00 - 1/2 Flat Washer
$2.99
36 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt
$3.29
37 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
38 047-4000-00 047-4000-00 - 4 - Link Adjustable Deck Hanger - Pup Models (obsolete)
use part #046-6048-98
$32.09
39A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
39 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
40 041-0226-00 041-0226-00 - B226 Deck Belt for 61" 28hp/1100cc Diesel (Not for AOS Diesel 35hp/1500cc)
$109.99
41 014-6010-00 014-6010-00 - Plastic Pulley Cover (See Models Used On For Details) (obsolete)
use part #014-4000-00
$28.39
42 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
43 037-8000-50 037-8000-50 - Double Bearing Spindle - Aluminum Housing (obsolete)
use part #037-4000-00
$291.91
44.1 038-6081-00 038-6081-00 - 61" Gator Blade for Outlaw
$22.99
44 038-6080-00 038-6080-00 - 61" High Lift Fusion Blade
$22.99
45 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
46 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
47 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
48 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
49 039-4864-00 039-4864-00 - Discharge Chute Upper Hanger Plate (See Models Used On For Detail)
$42.52
50 039-6945-98 039-6945-98 - Deck Idler Assy
$78.08
51 028-6060-00 028-6060-00 - Panhard Linkage Bar Outlaw and Diesel Decks (See Models Used On For Detail)
$12.77
52 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
53 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
54 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
55 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
56 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
57 041-0236-00 041-0236-00 - B236 Deck Belt for 61" 35hp Diesel (2012-2020 Only)
$109.99
58 047-6047-98 047-6047-98 - 3-Link Adjustable Deck Hanger (obsolete)
use part #046-6048-98
$32.09
59 032-5056-00 032-5056-00 - Flange Bushing-Deck Arms EF081108 - Frame Mounted
$5.82
60 032-5057-00 032-5057-00 - Flange for Lower Deck Arm SF-1622-5
$9.89
61 037-8001-00 037-8001-00 - Double Bearing for Spindle (See Models Used On For Details)
$46.78
62 037-8000-00 037-8000-00 - Spindle - Obsolete - Use 037-4000-00 (obsolete)
use part #037-4000-00
$291.91
63 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
64 018-0022-00 018-0022-00 - 1/2-13 x 2 Grade 8 Hex Bolt
$2.99
65 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
66 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
67 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
