2008 Diesel - Engine

2008 Diesel - Engine

The 2008 Diesel Engine is the heart of your mower, and BadBoyMowerParts.com provides all the parts you need to keep it running at peak performance. Whether you need engine components like fuel tanks, hydraulic coolers, or air filters, we have you covered. Our detailed Bad Boy Mower Part diagrams make it easy to identify and order the correct parts for your 2008 Diesel engine. We offer a wide selection of Bad Boy Lawn Mower Parts that are designed to provide maximum durability and efficiency. Plus, enjoy Free Shipping On Orders Over $100, so your repairs won’t break the bank. When you shop for Bad Boy Parts Online, you’ll find everything you need to maintain your engine, ensuring your 2008 Diesel mower is always ready to go. Trust BadBoyMowerParts.com for all your engine part needs.

Bad Boy Mower Parts Lookup

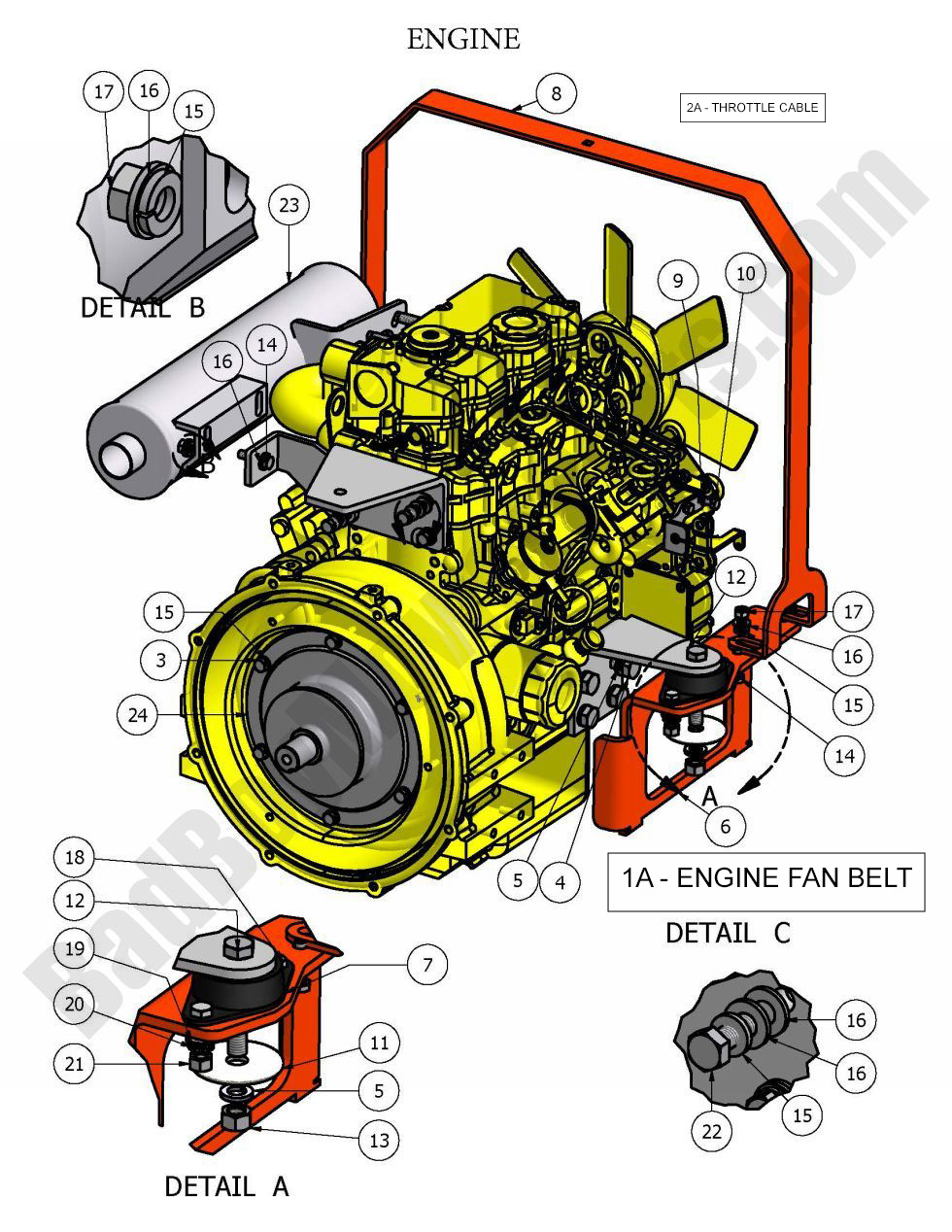

2008 Diesel - Engine
  Position Number SKU Product Title Price
1A 041-0010-00 041-0010-00 - Caterpillar/Perkins Fan Belt
$85.17
2A 055-8018-00 055-8018-00 - Throttle Cable (See Models Used On For Details)
$60.92
3 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
4 018-6022-00 018-6022-00 - 12mm Bolt - Diesel
$2.99
5 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
6 070-5510-00 070-5510-00 - 2008-2009 Diesel 3cyl Frame Suspension
$2099.99
6 070-5520-00 070-5520-00 - 2007-2020 Diesel 4cyl Frame Suspension
$2099.99
7 032-2000-00 032-2000-00 - Toplink Bushing (See Models Used On For Detail)
$4.37
8 201-8001-00 201-8001-00 - Hood Holder Diesel
$42.79
9 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
10 018-2000-00 018-2000-00 - M6x1.0x20MM 8.8 Hex Bolts Zinc
$2.99
11 032-4051-00 032-4051-00 - Snubbing Washer for Rubber Compression Mount
$17.02
12 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
13 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
15 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
16 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
17 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
18 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
19 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
20 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
21 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
22 018-2001-00 018-2001-00 - M8 X 1.25 X 25MM Class 10.9 He x Bolts Zinc
$2.99
23 015-0005-00 015-0005-00 - Exhaust-28/35hp Caterpillar USE 015-0010-00 (obsolete)
use part #015-0010-00
$225.56
24 017-3000-00 017-3000-00 - Stub shaft- Diesel
$229.90
