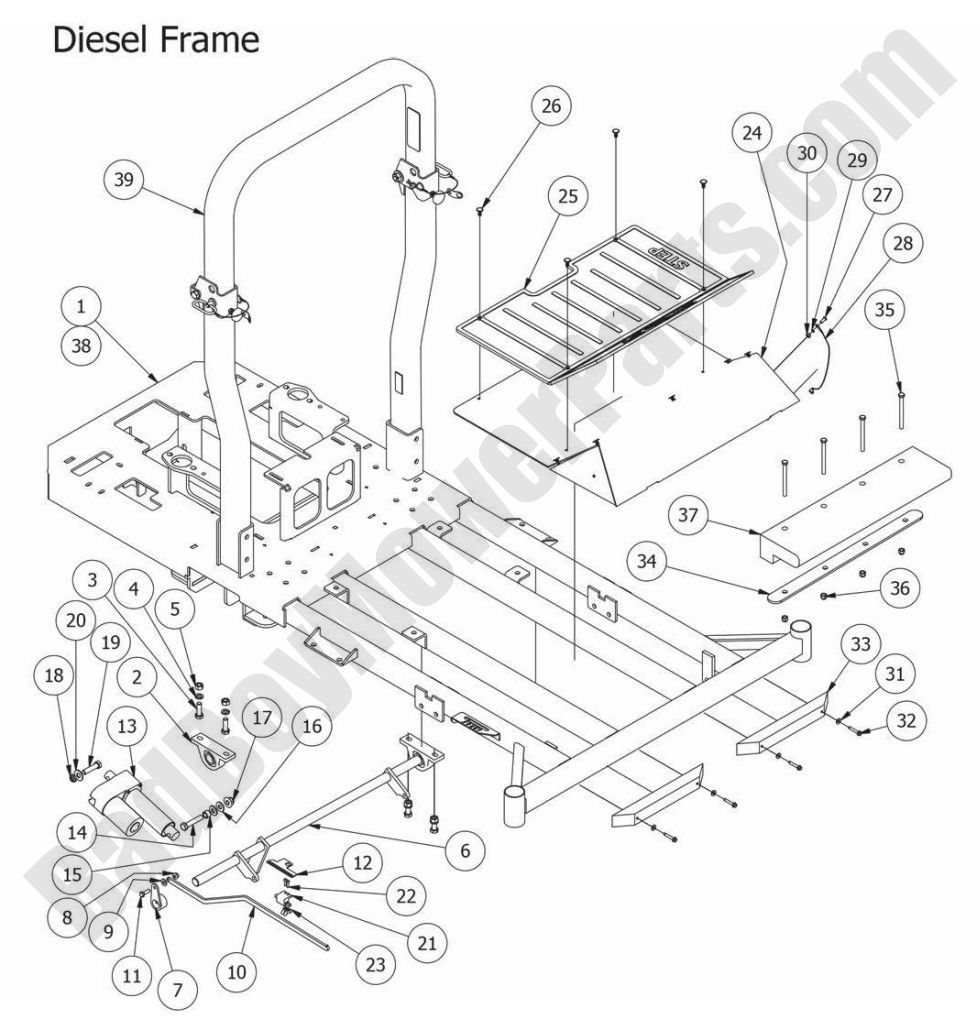

2014 Diesels - Diesel Frame

2014 Diesels - Diesel Frame

The 2014 Diesels Diesel Frame is the backbone of your mower, offering strength and stability for all of its components. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts for maintaining and replacing parts of your diesel frame, ensuring your mower continues to perform at its best. Our Bad Boy Mower Part Diagrams make finding the right components for your diesel frame easy and straightforward. A properly maintained frame is crucial for the long-term durability and stability of your 2014 Diesels mower. Along with diesel frame parts, we offer a variety of Bad Boy Lawn Mower Parts for other systems, such as engines, hydraulic systems, and decks. With Bad Boy Parts Online, ordering is quick and easy, and our Free Shipping On Orders Over $100 ensures you can get the parts you need without additional shipping costs. Take care of your 2014 Diesels Diesel Frame to ensure long-lasting and reliable mower performance.

Bad Boy Mower Parts Lookup

2014 Diesels - Diesel Frame
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84
1 070-5550-00 070-5550-00 - 2012-2020 Diesel 4 cyl 72 inch Frame
$1399.99
2 017-7008-00 017-7008-00 - 1" Pillow Block Bearing (See Models Used On For Details)
$21.29
3 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
4 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
5 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
6 028-7920-00 028-7920-00 - Actuator Bar (See Models Used On For Detail)
$116.99
7 031-7000-00 031-7000-00 - Height Indicator Tab and Collar (See Models Used On For Details)
$11.29
8 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
9 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
10 028-5203-00 028-5203-00 - Height Indicator (See Models Used On For Detail)
$28.39
11 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
12 039-2008-00 039-2008-00 - Deck Stop Bracket 2008
$11.34
13 035-7033-00 035-7033-00 - Actuator
$408.75
14 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
15 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
16 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
17 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
18 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
19 018-5049-00 018-5049-00 - 1/2-13 X 2 Hex Bolts Zinc
$2.99
20 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
21 077-5300-00 077-5300-00 - Deck Stop Switch
$9.89
22 018-8056-00 018-8056-00 - 10-24x1/2 Buttonhead SCS 18-8
$2.99
23 013-2000-00 013-2000-00 - 10-24 Wing Nut
$2.99
24 079-6000-00 079-6000-00 - 2007-2020 Floor Panel (See Models Used On For Details)
$145.95
25 081-2007-00 081-2007-00 - Floor Mat - Diesel Models (See Models Used On For Details)
$66.76
26 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
27 018-8064-00 018-8064-00 - 1/4-20 X 5/8 BS C/S 18-8 SS
$2.99
28 064-2006-00 064-2006-00 - Floorboard Cable
$15.55
29 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
30 013-8039-00 013-8039-00 - 1/4-20 Hex Nut
$2.99
31 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
32 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
33 029-7037-00 029-7037-00 - 14" Bumper
$42.79
34 028-1000-00 028-1000-00 - Diesel Weight Bar Bracket (See Models Used On For Details)
$14.97
35 018-2005-00 018-2005-00 - 3/8-16 X 4-1/4 Hex Bolt
$2.99
36 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
37 088-2000-00 088-2000-00 - 58 lb Diesel Weight
$229.99
38 070-5520-00 070-5520-00 - 2007-2020 Diesel 4cyl Frame Suspension
$2099.99
39 089-3050-00 089-3050-00 - 2 x 3 ROPS 2014-2015 - Diesel
$829.99
