2008 Diesel - Front Wheel Assembly

2008 Diesel - Front Wheel Assembly

The 2008 Diesel Front Wheel Assembly is a crucial part of your mower, ensuring stability and smooth movement. At BadBoyMowerParts.com, we offer a wide selection of parts to replace or upgrade your front wheel assembly. Our detailed Bad Boy Mower Part diagrams make it easy to find the exact components you need. Whether it’s the wheel motor, drive arm, or suspension, we provide reliable Bad Boy Lawn Mower Parts that are designed for long-lasting performance. Plus, enjoy Free Shipping On Orders Over $100, making it easier than ever to maintain your mower. Shop for Bad Boy Parts Online to quickly order the parts you need and have them delivered right to your door. With BadBoyMowerParts.com, keeping your 2008 Diesel front wheel assembly in top condition has never been simpler.

Bad Boy Mower Parts Lookup

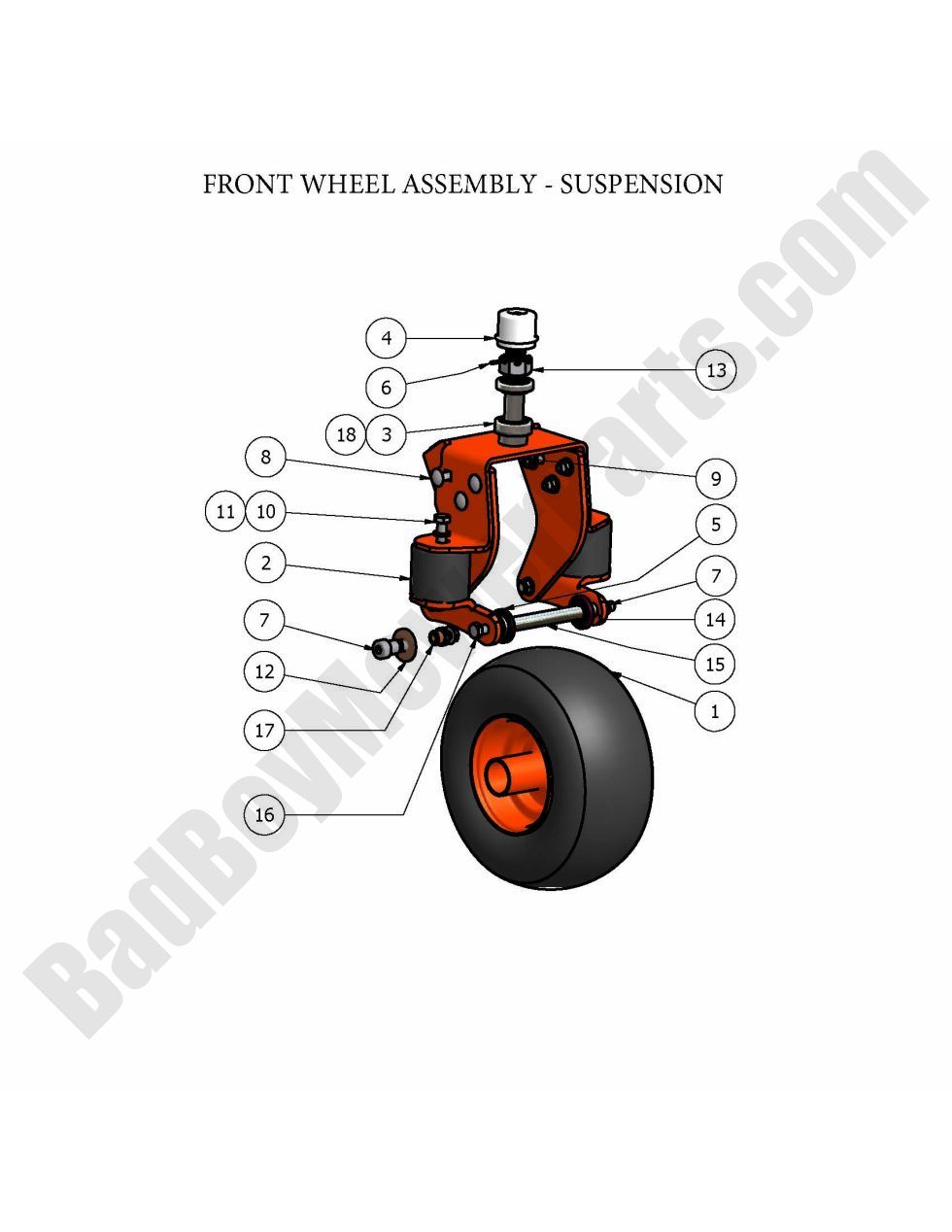

2008 Diesel - Front Wheel Assembly
  Position Number SKU Product Title Price
1 022-2006-00 022-2006-00 - 13 x 6.50 - 6 Orange Tire and Wheel Assembly
$119.99
3A 010-7003-98 010-7003-98 - Front Caster Bearing, Race, and seal kit (See Models Used On For Details)
$30.99
3 010-7001-00 010-7001-00 - Tapered Roller Bearing - Caster- Race not included (See Models Used On For Details)
$6.26
4 014-7005-00 014-7005-00 - Dust Cover - Yellow Zinc
$9.34
5 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
6 020-7022-00 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc
$2.99
7 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
8 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
9 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
10 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
11 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
12 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
13 013-7004-00 013-7004-00 - 1-14 Hex Castle Nut Plain (Slotted Nut)
$8.35
14 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
15 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
16 018-3002-00 018-3002-00 - 1/2 x 10 Bolt
$8.02
17 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
18 011-7002-00 011-7002-00 - Race (44610) Front Caster (See Models Used On For Details)
$4.39
