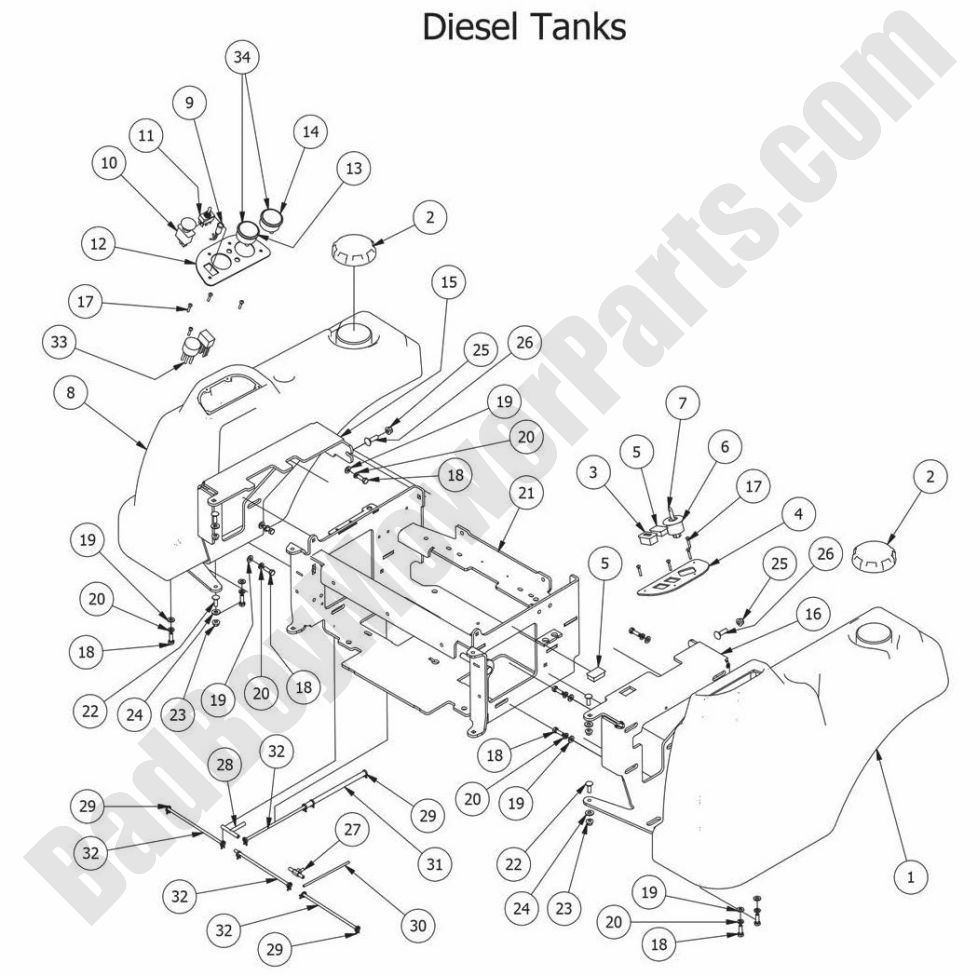

2014 Diesels - Fuel Tank Assemblies

2014 Diesels - Fuel Tank Assemblies

The 2014 Diesels Fuel Tank Assemblies are designed to hold fuel safely and securely, ensuring that your mower has the power it needs to operate efficiently. At BadBoyMowerParts.com, we offer a complete range of Bad Boy Mower Parts, including fuel tank assemblies, caps, and other related components. Our Bad Boy Mower Part Diagrams allow you to easily identify the fuel tank parts you need, ensuring proper fit and function. Replacing worn or damaged fuel tank parts is crucial for the safe and efficient operation of your 2014 Diesels mower. In addition to fuel tank assemblies, we carry a wide variety of Bad Boy Lawn Mower Parts to handle any repair or maintenance need. Ordering Bad Boy Parts Online is simple and hassle-free, and with Free Shipping On Orders Over $100, you can enjoy great savings on shipping while maintaining your mower. Keep your fuel system in top shape to ensure your 2014 Diesels mower runs smoothly and reliably.

Bad Boy Mower Parts Lookup

2014 Diesels - Fuel Tank Assemblies
  Position Number SKU Product Title Price
1A 067-4025-00 067-4025-00 - Fuel Gauge and Grommet (See Models Used On For Details)
$54.56
1 067-3000-00 067-3000-00 - Diesel/AOS Fuel Tank - Left
$509.99
2 066-8090-00 066-8090-00 - Diesel Fuel Cap-3.5 inch Neck
$39.86
3 083-4014-00 083-4014-00 - Diesel Hourmeter
$62.40
4 079-3402-00 079-3402-00 - Left Diesel Instrument Panel (See Models Used On For Details)
$22.71
5 018-1040-00 018-1040-00 - Light Plug
$2.99
6 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
7 042-9000-00 042-9000-00 - Ignition Key
$4.06
8 067-3001-00 067-3001-00 - Diesel/AOS Fuel Tank - Right
$214.99
9 089-1000-00 089-1000-00 - Oil Light
$12.63
10 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
11 078-8077-00 078-8077-00 - Joystick - Deck Lift
$42.79
12 079-3405-00 079-3405-00 - Right Diesel Control Panel (See Models Used On For Details)
$17.11
13 086-7001-00 086-7001-00 - 2" Water Temperature Gauge (See Models Used On For Details)
$100.71
14 086-7000-00 086-7000-00 - 2" Oil Pressure Gauge (See Models Used On For Details)
$100.71
15 031-2010-00 031-2010-00 - 72 Tank Supports- Left
$59.91
16 031-2011-00 031-2011-00 - 72 Tank Support- Right (See Models Used On For Details)
$59.91
17 018-2015-00 018-2015-00 - 10-32 x 1 Button Head Bolt
$2.99
18 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
19 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
20 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
21 080-7000-00 080-7000-00 - 2007 Diesel Seat Frame
$399.99
22 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
23 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
24 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
25 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
26 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
27 073-2000-00 073-2000-00 - Brass Fuel Line T - Diesels
$10.21
28 073-8068-00 073-8068-00 - Fuel Line T
$9.70
29 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
30 051-8068-00 051-8068-00 - 3/16 Fuel Line
$3.59
31 051-8075-00 051-8075-00 - 5/16 Fuel Line Hose Priced per Foot
$7.69
32 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
33 086-0035-00 086-0035-00 - Harness-28/35 Diesel w/Plastic Tank
$463.10
34 086-7002-00 086-7002-00 - Pigtail-2" Faria Gauge-2012
$28.32
