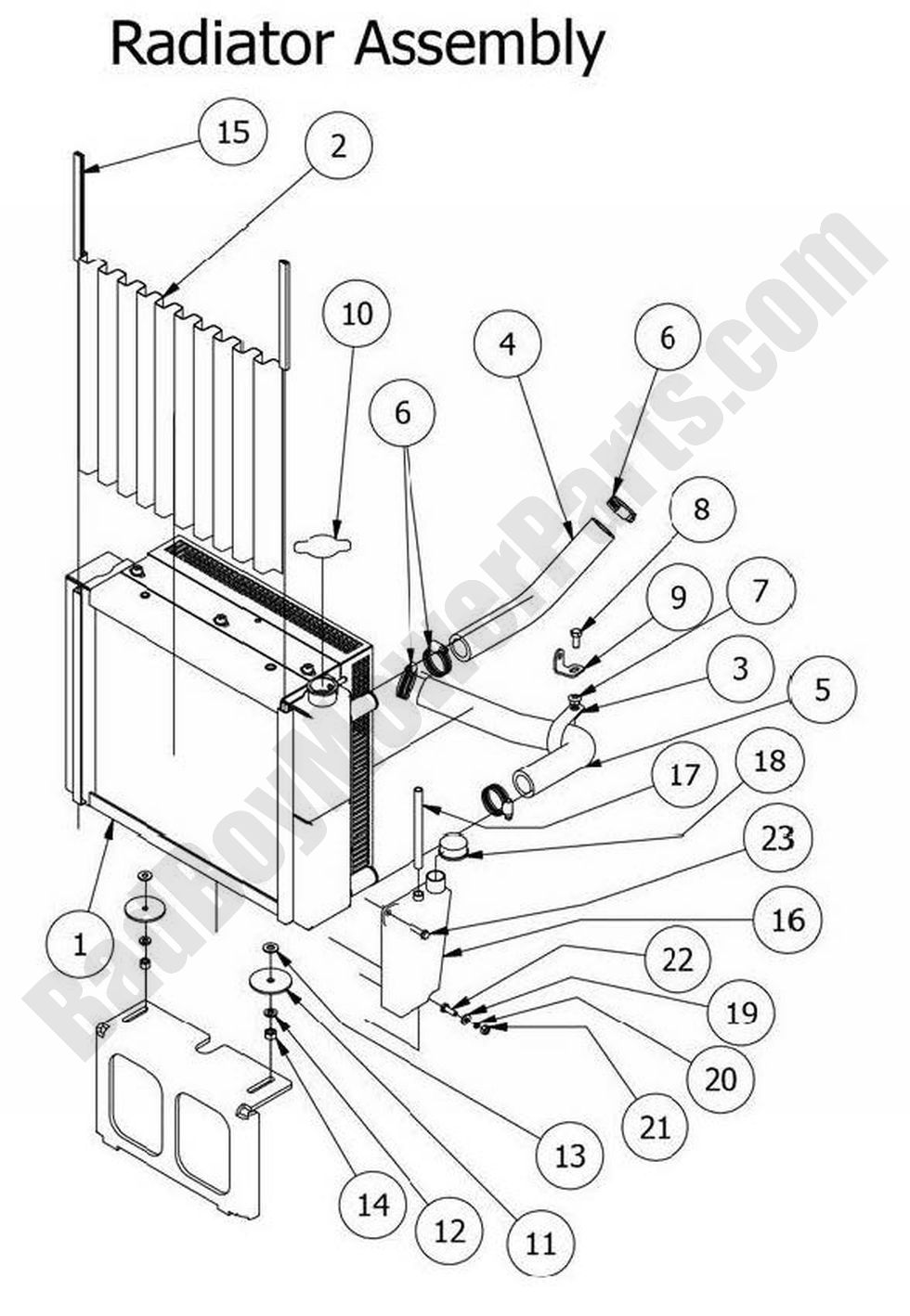

2014 Diesels - Radiator Assembly

2014 Diesels - Radiator Assembly

The 2014 Diesels Radiator Assembly is essential for cooling the engine and preventing overheating during operation. At BadBoyMowerParts.com, we carry a full range of Bad Boy Mower Parts, including radiator assemblies, hoses, and fans, to keep your mower running at the right temperature. Our Bad Boy Mower Part Diagrams help you identify the exact parts you need for the 2014 Diesels mower's cooling system, ensuring compatibility and efficient performance. Maintaining the radiator assembly is crucial for avoiding engine overheating and ensuring smooth operation. Along with radiator assemblies, we provide a variety of Bad Boy Lawn Mower Parts for your mower’s engine and other systems. Ordering Bad Boy Parts Online is straightforward, and with Free Shipping On Orders Over $100, you can receive your parts without the added cost of shipping. Take care of your engine’s cooling system and ensure reliable operation with the right 2014 Diesels Radiator Assembly.

Bad Boy Mower Parts Lookup

2014 Diesels - Radiator Assembly
  Position Number SKU Product Title Price
1 061-5000-00 061-5000-00 - Radiator - Diesel Models (See Models Used On For Details)
$999.99
2 094-5088-00 094-5088-00 - Radiator Screen Diesel
$129.99
3 072-8090-00 072-8090-00 - Diesel Clamp - 1 3/4 Vinyl
$3.63
4 051-3000-00 051-3000-00 - 2010-2020 Top Radiator Hose - Diesel
$22.03
5 051-3001-00 051-3001-00 - Diesel Radiator Hose - Bottom
$28.09
6 072-2003-00 072-2003-00 - 1 1/8" Hose Clamp
$5.82
7 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
9 039-1015-00 039-1015-00 - Radiator Hose Clamp Bracket
$2.99
10 015-0104-00 015-0104-00 - CAT Diesel Radiator Cap
$31.22
11 019-5050-00 019-5050-00 - 3/8 X 2-1/4 OD Fibre Washer
$2.99
12 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
13 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
14 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
15 084-4015-00 084-4015-00 - Rubber Trim
$10.99
16 015-0111-00 015-0111-00 - Overflow Reservoir-27 Kaw
$74.89
17 051-8069-00 051-8069-00 - 5/16 Clear Hose (Priced Per Foot)
$2.99
18 066-8075-00 066-8075-00 - Reservoir Tank Cap-Overflow Tank
$6.48
19 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
20 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
21 013-8039-00 013-8039-00 - 1/4-20 Hex Nut
$2.99
22 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
23 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
