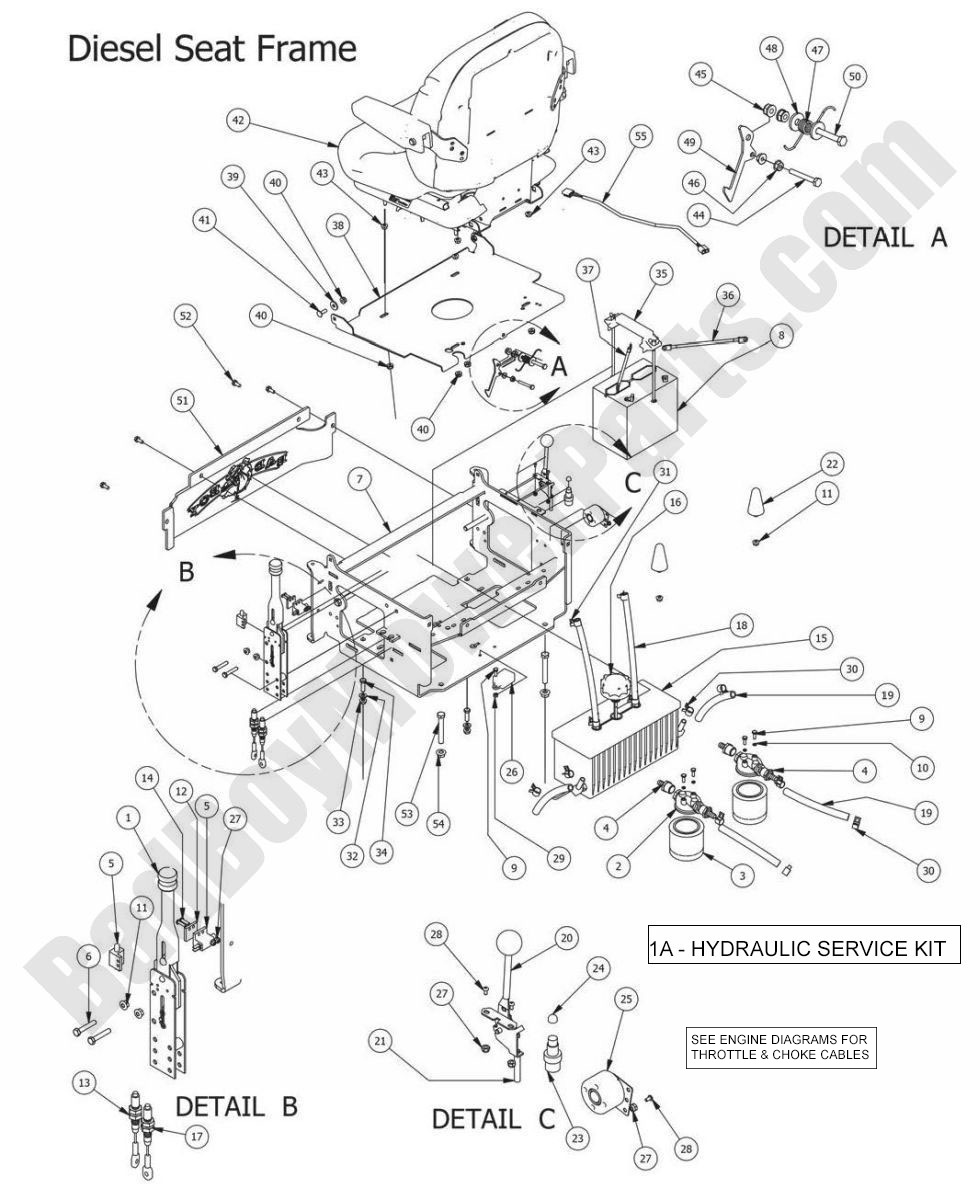

2014 Diesels - Seat Frame

2014 Diesels - Seat Frame

The 2014 Diesels Seat Frame provides support and stability for the operator’s seat, ensuring comfort and safety while mowing. At BadBoyMowerParts.com, we offer a variety of Bad Boy Mower Parts, including seat frames, cushions, and adjustment mechanisms, designed for the 2014 Diesels mower. Our Bad Boy Mower Part Diagrams make it easy to locate the right seat frame parts to restore or upgrade your mower’s seating area. A well-maintained seat frame ensures that the operator remains secure and comfortable, even during long hours of use. In addition to seat frames, we also offer a wide range of Bad Boy Lawn Mower Parts to handle any other maintenance needs your mower might have. Ordering Bad Boy Parts Online is quick and easy, and with Free Shipping On Orders Over $100, you’ll save on shipping costs while keeping your mower in top condition. Don’t overlook the importance of the 2014 Diesels Seat Frame for comfort and safety.

Bad Boy Mower Parts Lookup

2014 Diesels - Seat Frame
  Position Number SKU Product Title Price
1A 085-4052-00 085-4052-00 - Pump/Wheel Motor Hydro Service Pack
$133.30
1 069-8054-00 069-8054-00 - Brake Handle Kit
$119.41
2 062-8013-00 062-8013-00 - Filter Head-Hydraulic Filter
$24.92
3 063-8014-00 063-8014-00 - Hydraulic Filter For Units with Pumps and Wheel Motors
$31.17
4 024-5050-00 024-5050-00 - Filter Head Fitting, 1/2 x 1/2 , 208-108
$8.01
5 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
6 018-8059-00 018-8059-00 - 5/16-18x1-3/4 Hex Bolt
$2.99
7 080-7000-00 080-7000-00 - 2007 Diesel Seat Frame
$399.99
9 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
10 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
11 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
12 025-6041-00 025-6041-00 - Switch Block Plastic
$2.99
13 064-8055-00 064-8055-00 - Short Brake Cable
$51.47
14 018-8056-00 018-8056-00 - 10-24x1/2 Buttonhead SCS 18-8
$2.99
16 066-8050-00 066-8050-00 - Hydraulic Tank Cap w/Dipstick (See Models Used On For Details)
$31.22
17 064-8056-00 064-8056-00 - Long Brake Cable
$53.49
18 051-8063-00 051-8063-00 - 3/8 Clear Hose PRICED PER FOOT
$2.99
19 051-8064-00 051-8064-00 - 1/2 Clear Braided Hose PRICED/ FOOT
$2.99
21 055-8018-75 055-8018-75 - Diesel Thottle Cable ONLY
$32.09
22 034-1000-00 034-1000-00 - Spring Cushion (See Models Used On For Detail)
$28.39
23 077-6000-00 077-6000-00 - Momentary Start Switch Preheat Button for Diesel
$21.39
24 014-6000-00 014-6000-00 - Start Switch Boot - Diesel
$6.59
25 021-8059-00 021-8059-00 - Heat Warning Piezo Buzzer
$36.37
26 015-0015-00 015-0015-00 - Auto Shut Down for Cat Diesels
$699.99
27 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
28 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
29 013-8039-00 013-8039-00 - 1/4-20 Hex Nut
$2.99
30 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
31 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
32 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
33 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
34 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
35 043-8929-00 043-8929-00 - Battery Hold Down Kit
$17.49
36 064-4001-00 064-4001-00 - Black Battery Cable (See Models Used On For Details)
$22.31
37 064-4000-00 064-4000-00 - Red Battery Cable (See Models Used On For Details)
$23.53
38 026-2006-00 026-2006-00 - Seat Plate (See Models Used On For Details)
$99.32
39 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
40 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
41 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
42 071-4050-00 071-4050-00 - Grammer Suspension Seat Use w/o ROPS - Obsolete - USE PART #071-4050-17 (obsolete)
use part #071-4050-17
$759.99
44 018-0011-00 018-0011-00 - 1/4-20 x 2 Hex Bolt
$2.99
46 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
47 034-1075-00 034-1075-00 - Torsion Spring-Seat Latch
$5.49
49 031-0200-00 031-0200-00 - Seat Latch Lever
$2.99
50 018-0012-00 018-0012-00 - 5/16-18 X 2 HEX C/S (GR.5)
$2.99
51 014-2009-00 014-2009-00 - Cooler Cover (See Models Used On For Details)
$117.94
52 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
53 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
54 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
55 036-5300-00 036-5300-00 - Seat Switch Adaptor
$15.55
