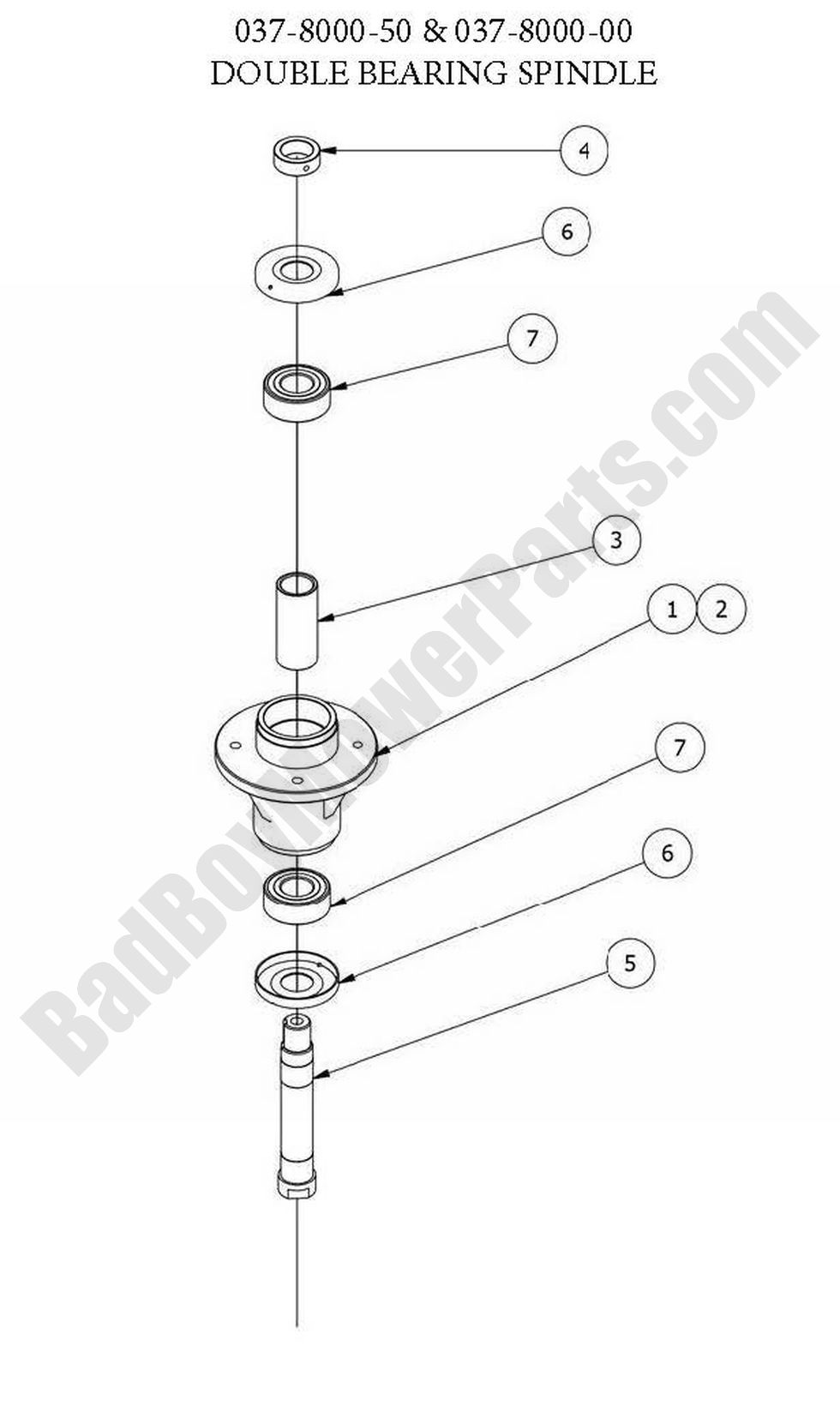

Click Image to Change Diagram
The 2014 Diesels Spindle Assembly is an integral part of your mower’s deck system, responsible for holding the blades in place and enabling smooth rotation. BadBoyMowerParts.com offers a full range of Bad Boy Mower Parts, including spindle assemblies, bearings, and washers, to ensure optimal performance. Our Bad Boy Mower Part Diagrams make it simple to identify and replace damaged or worn-out spindle assemblies on your 2014 Diesels mower. A properly functioning spindle assembly is essential for achieving a clean, even cut, and regular maintenance is key to extending the life of your mower. In addition to spindle assemblies, we provide a variety of Bad Boy Lawn Mower Parts for all mower systems, including engines, decks, and drive components. Ordering Bad Boy Parts Online is fast and easy, and with Free Shipping On Orders Over $100, you can save on shipping while keeping your mower in excellent condition. Keep your 2014 Diesels Spindle Assembly in top shape to ensure superior cutting performance.
![]() |
Position Number | SKU | Product Title | Price | ||
---|---|---|---|---|---|
1 | 037-8005-50 |
037-8005-50 - Aluminum Spindle Housing- Obsolete - Use 037-4000-00 (obsolete) use part #037-4000-00 |
$291.91
|
||
2 | 037-8005-00 |
037-8005-00 - Spindle Housing - Obsolete - Use 037-4000-00 (obsolete) use part #037-4000-00 |
$291.91
|
||
3 | 037-8003-00 | 037-8003-00 - Tube Spacer-Double Bearing Spindle |
$11.34
|
||
4 | 037-9050-00 | 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details) |
$7.28
|
||
5 | 037-6026-00 | 037-6026-00 - Short Spindle Shaft - No Grooved Shaft |
$83.77
|
||
6 | 037-8002-00 | 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50) |
$11.76
|
||
7 | 037-8001-00 | 037-8001-00 - Double Bearing for Spindle (See Models Used On For Details) |
$46.78
|
