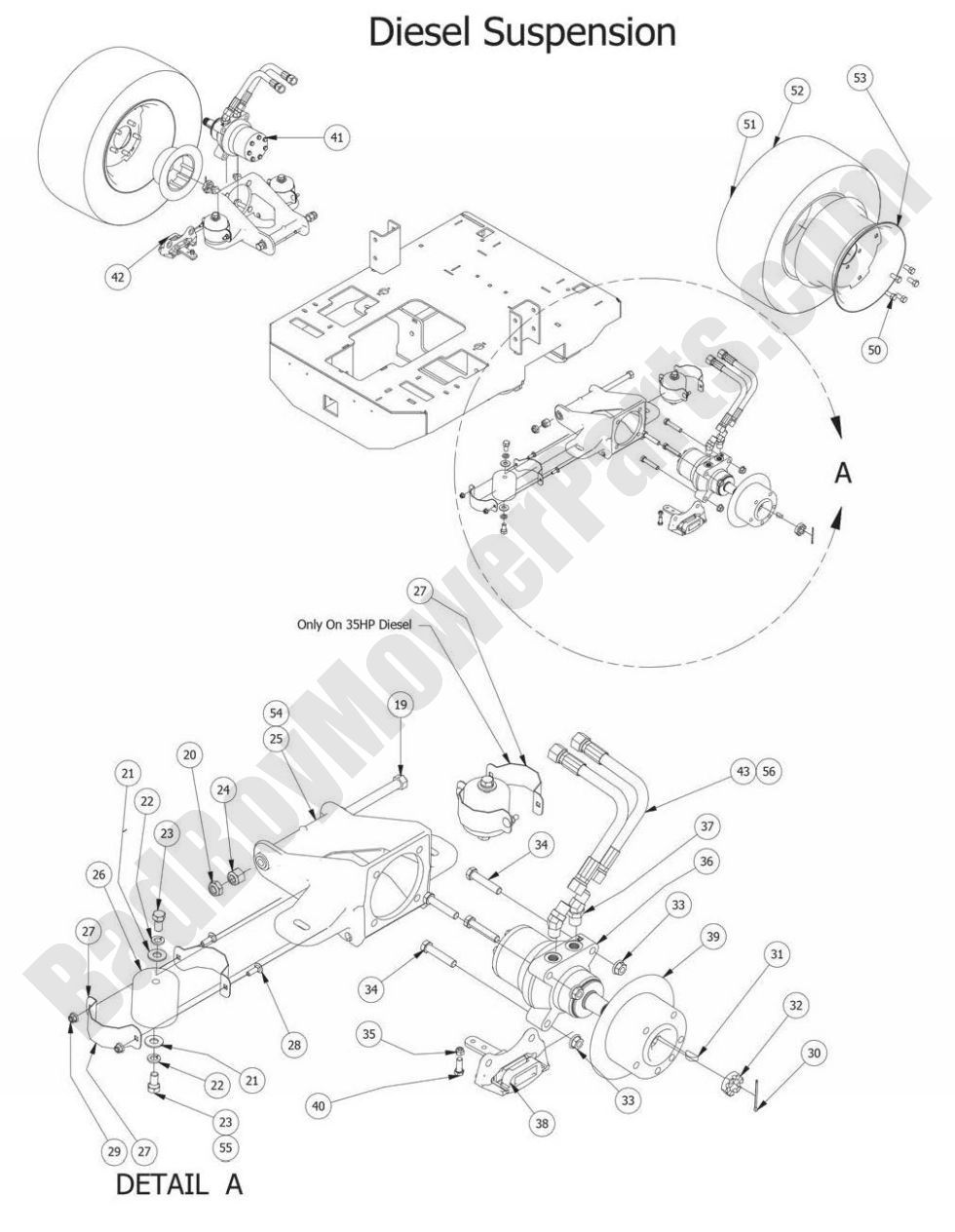

2014 Diesels - Suspension

2014 Diesels - Suspension

The 2014 Diesels Suspension system plays a crucial role in providing a smooth ride and protecting the mower from harsh terrain. At BadBoyMowerParts.com, we offer a variety of Bad Boy Mower Parts for your mower’s suspension system, including shock absorbers, springs, and mounts. Our Bad Boy Mower Part Diagrams make it easy to find the right parts to repair or upgrade your mower’s suspension, ensuring maximum comfort and stability. A well-maintained suspension system helps reduce vibrations, allowing for smoother operation and preventing damage to other mower components. Along with suspension parts, we also offer a wide selection of Bad Boy Lawn Mower Parts for all maintenance needs. Ordering Bad Boy Parts Online is simple, and with Free Shipping On Orders Over $100, you can get your parts delivered to your door without any added cost. Don’t let suspension issues affect your mower’s performance—ensure smooth and comfortable mowing with the right 2014 Diesels Suspension parts.

Bad Boy Mower Parts Lookup

2014 Diesels - Suspension
  Position Number SKU Product Title Price
19 018-2051-00 018-2051-00 - 5/8 x 10 Bolt Grade 8
$15.61
20 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
21 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
22 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
23 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
24 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
25 070-8000-00 070-8000-00 - Suspension Kit Wheel Motor (See Models Used On For Details)
$291.91
26 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22
27A 072-1000-98 072-1000-98 - Isolator Clamp Assembly
$28.39
27 072-1000-00 072-1000-00 - Isolator Band Clamp
$7.28
28 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
29 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
30 020-7022-00 020-7022-00 - 1/8 X 2-1/4 Cotter Pins Zinc
$2.99
31 042-7041-00 042-7041-00 - Woodruff Key-Wheel Motor
$14.19
32 013-7050-00 013-7050-00 - 1" Castle Nut for Wheel Motor (obsolete)
use part #013-7055-00
$18.18
33 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
34 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
35 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
36 015-4600-00 015-4600-00 - 18cc Parker Wheel Motor-Right (See Models Used On for Detail)
$599.99
37 024-2050-00 024-2050-00 - 45 Degree Wheel Motor Fitting
$17.02
38 092-7000-00 092-7000-00 - 2014-2018 Right Brake Caliper Outlaw XP/Diesel, 2019-2024 Renegade/Rogue Left Brake Caliper w/bracket
$99.32
39 092-5201-00 092-5201-00 - 2007-2008 AOS/Diesel, 2014-2020 Diesel/Outlaw XP, 2019-2025 Renegade/Rogue Brake Disc 8
$119.36
40 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
41 015-4601-00 015-4601-00 - 18cc Parker Wheel Motor
$599.99
42 092-7001-00 092-7001-00 - 2014-2018 Left Brake Caliper Outlaw XP/Diesel, 2019-2025 Renegade/Rogue
$99.32
43 051-2080-00 051-2080-00 - 26" Hydraulic Hose Assembly w/Adaptors
$145.95
50 018-7033-00 018-7033-00 - 1/2-20 X 1-1/2 Lug Bolts Zinc
$2.99
51 022-7031-00 022-7031-00 - 26x12.00-12 Orange Wheel and Tire Assembly
$428.99
52 022-7032-00 022-7032-00 - 26x12.00-12 Tire (One Tire Only)
$309.99
53 022-7034-00 022-7034-00 - 12 x 10.5 Wheel - AOS/Diesel Rear
$219.99
54 070-8001-00 070-8001-00 - 72 Suspension Kit Wheel Motor
$265.37
55 018-2080-00 018-2080-00 - 1/2-13 X 1-1/4 Hex Bolt
$2.99
56 051-6085-00 051-6085-00 - 26" Hydro Hose Only
$40.53
