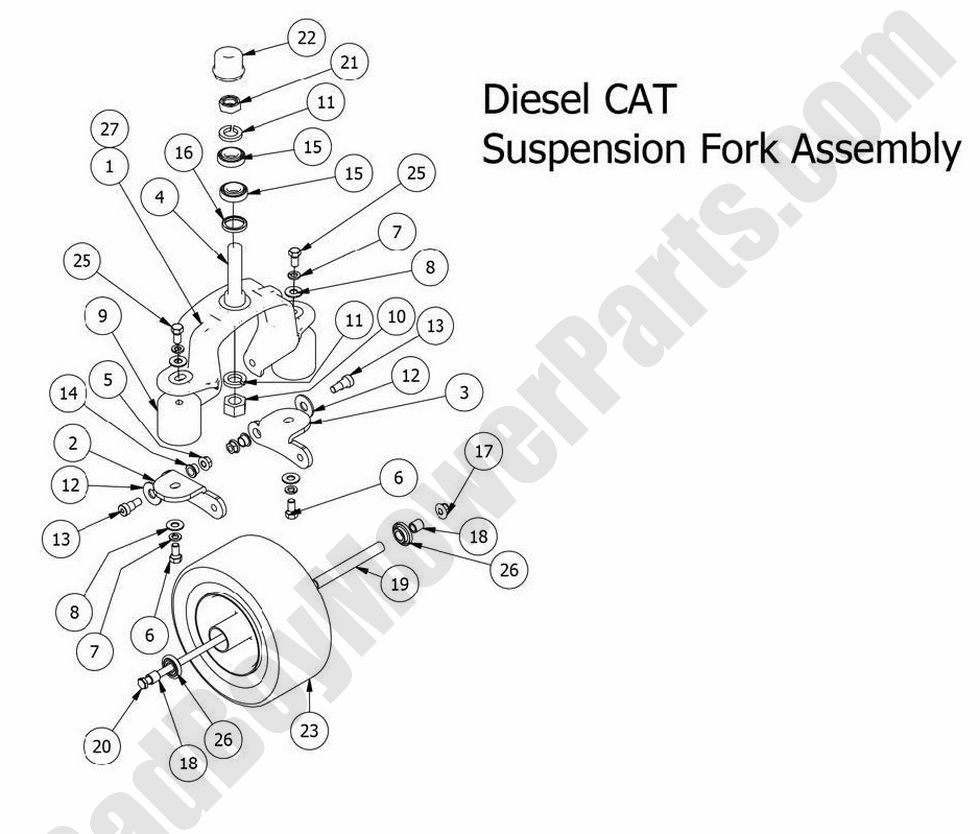

2014 Diesels - Suspension Fork Assembly

2014 Diesels - Suspension Fork Assembly

The 2014 Diesels Suspension Fork Assembly is essential for providing a smooth, stable ride while operating your mower. This assembly absorbs shock and reduces vibrations, ensuring that the mower stays steady even on rough terrain. BadBoyMowerParts.com offers an extensive selection of Bad Boy Mower Parts for the suspension fork assembly, including shocks, forks, and other key components. Our Bad Boy Mower Part Diagrams make it simple to identify the exact parts you need to maintain or repair your 2014 Diesels suspension system.  Alongside suspension fork assemblies, we also offer Bad Boy Lawn Mower Parts for other systems such as engines, decks, and drive components. Ordering Bad Boy Parts Online is fast and convenient, and with Free Shipping On Orders Over $100, you’ll save money while keeping your mower in peak condition. Invest in your 2014 Diesels Suspension Fork Assembly for improved comfort and performance.

Bad Boy Mower Parts Lookup

2014 Diesels - Suspension Fork Assembly
  Position Number SKU Product Title Price
1 023-0020-00 023-0020-00 - 2012-2016 Outlaw XP, 2012-2020 Diesel Suspension Fork Top/Side Combo
$263.99
2 023-0012-00 023-0012-00 - Suspension Fork - Bottom Left
$31.58
3 023-0013-00 023-0013-00 - Suspension Fork - Bottom Right
$31.58
4 037-0010-00 037-0010-00 - Front Suspension Fork Spindle Shaft - Black
$42.58
5 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
6 018-2030-00 018-2030-00 - 1/2 x 1 Bolt
$2.99
7 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
8 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
9 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
10 013-6016-00 013-6016-00 - 1 Fine Thread Nut
$4.39
11 019-3000-00 019-3000-00 - 1" Lock Washer
$3.29
12 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
13 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
14 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
15A 011-7002-00 011-7002-00 - Race (44610) Front Caster (See Models Used On For Details)
$4.39
15 010-7001-00 010-7001-00 - Tapered Roller Bearing - Caster- Race not included (See Models Used On For Details)
$6.26
16A 010-7003-98 010-7003-98 - Front Caster Bearing, Race, and seal kit (See Models Used On For Details)
$30.99
16 012-7003-00 012-7003-00 - Bearing Seal - Front Caster (See Models Used On For Details)
$10.21
17 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
18 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
19 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
20 018-3002-00 018-3002-00 - 1/2 x 10 Bolt
$8.02
21 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
22 014-7005-00 014-7005-00 - Dust Cover - Yellow Zinc
$9.34
23 022-1050-00 022-1050-00 - 13 x 6.50-6 No-Flat Tire and Wheel Assembly
$177.99
25 018-2080-00 018-2080-00 - 1/2-13 X 1-1/4 Hex Bolt
$2.99
26 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
27 023-7915-98 023-7915-98 - Suspension Fork Assembly
$350.99
