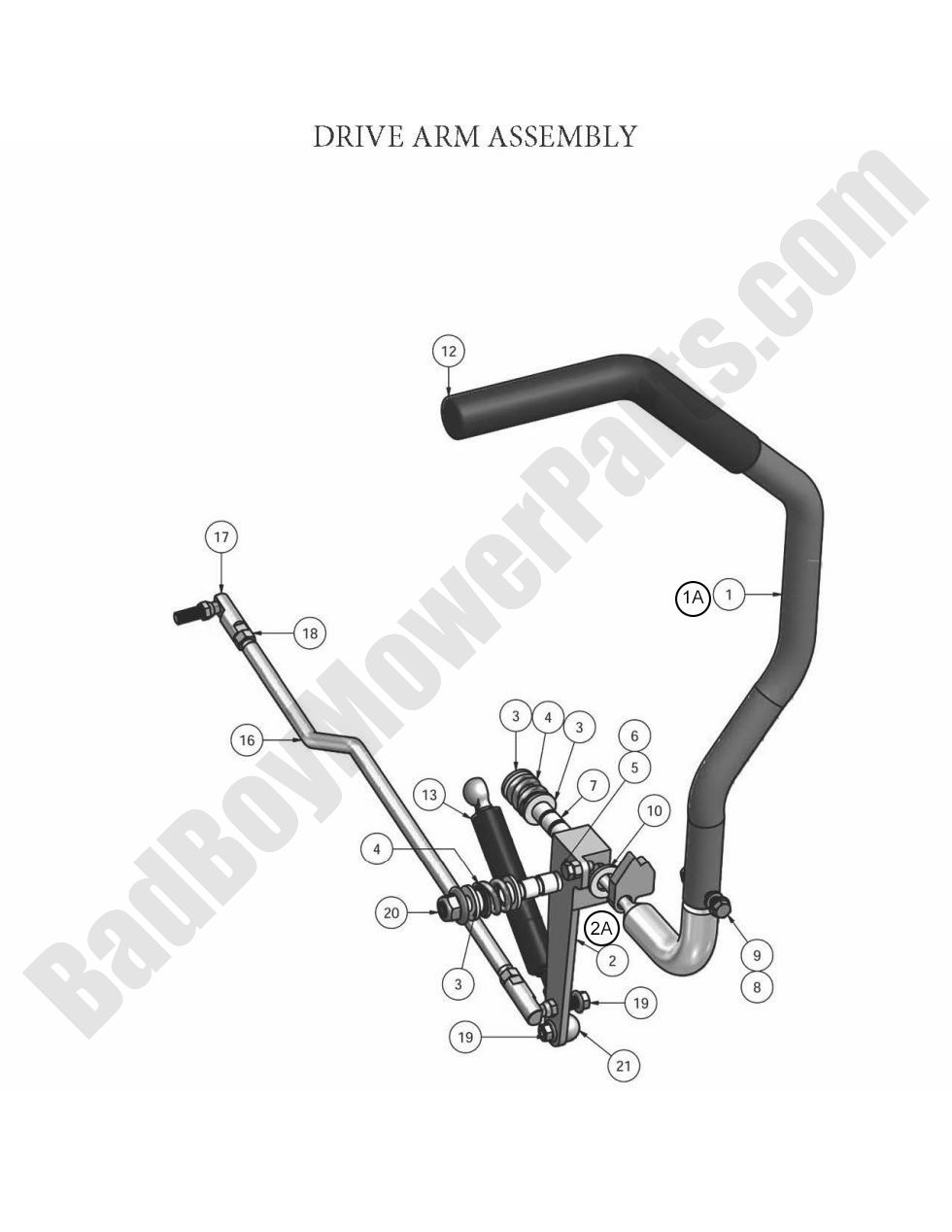

2010 Pup and Lightning Drive Arm

Drive Arm

The Bad Boy Mower parts diagram for the 2010 Pup and Lightning Drive Arm is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2010 Pup and Lightning models. Find all of your Bad Boy mowers 2010 Pup and Lightning parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2010 Pup and Lightning Drive Arm. If you are not able to find the Bad Boy parts for your 2010 Pup and Lightning please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2010 Pup and Lightning Drive Arm
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$181.89
1A 031-8822-70 031-8822-70 - Right Steering Arm Black Elbow (See Models Used On For Details)
$99.32
1 031-8821-70 031-8821-70 - Left Steering Arm Black Elbow (See Models Used On For Details)
$99.32
2A 027-8820-00 027-8820-00 - 2007-2011 Pup/Lightning, 2012-2016 Outlaw XP, 2007-2017 Diesel Drive Arm Lever Housing Right
$46.84
2 027-8819-00 027-8819-00 - 2007-2011 Pup/Lightning, 2012-2016 Outlaw XP, 2007-2017 Diesel Drive Arm Lever Housing (left)
$46.84
3 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washe
$2.99
4 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
5 018-8063-00 018-8063-00 - 5/16-18 X 3/4 GR 5 Hex Bolts Z
$2.99
6 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
7 032-8024-00 032-8024-00 -.502x.618x.500 Spacer Nylon Drive Arm Block
$2.99
8 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
9 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
10 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
12 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
16 035-5344-00 035-5344-00 - Steering Push Rod-Pup/Lightnin
$30.87
17 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
18 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nuts Zinc
$2.99
19 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
20 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
21 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
