2011 Outlaw & Outlaw Extreme Drive Arm

Drive Arm

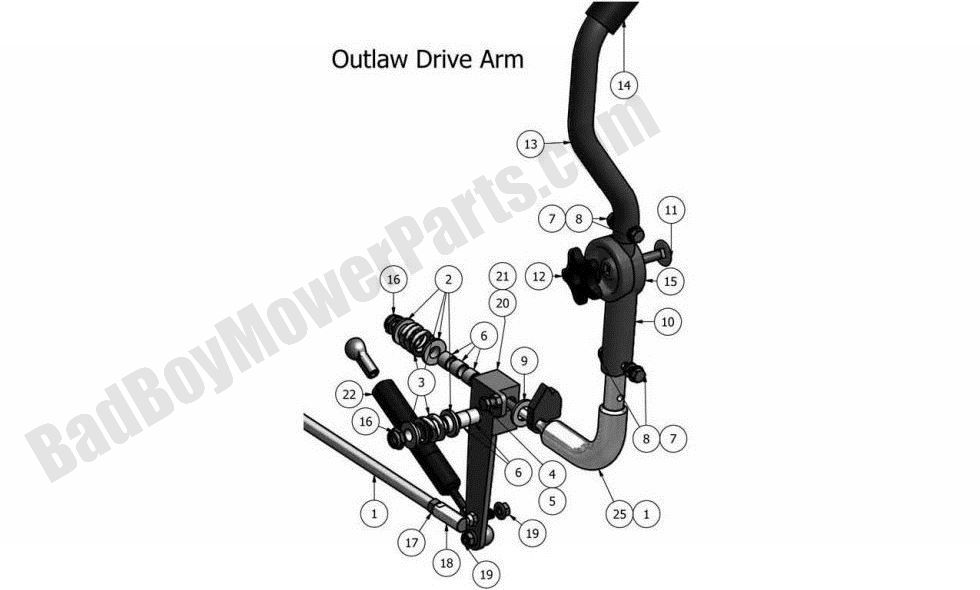

The Bad Boy Mower parts diagram for the 2011 Outlaw Drive Arm is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2011 Outlaw models. Find all of your Bad Boy mowers 2011 Outlaw parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2011 Outlaw Drive Arm. If you are not able to find the Bad Boy parts for your 2011 Outlaw please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2011 Outlaw & Outlaw Extreme Drive Arm
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$181.89
1 031-9020-00 031-9020-00 - Left Steering Arm Gold Elbow (See Models Used On For Details)
$85.17
2 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washe
$2.99
3 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
4 018-8063-00 018-8063-00 - 5/16-18 X 3/4 GR 5 Hex Bolts Z
$2.99
5 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
6 032-8024-00 032-8024-00 -.502x.618x.500 Spacer Nylon Drive Arm Block
$2.99
7 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
8 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
9 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
10 031-9016-00 031-9016-00 - Right Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9016-70
$53.24
11 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
12 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$4.39
13 031-9017-00 031-9017-00 - Left Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9017-70
$53.24
14 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
15 031-9014-00 031-9014-00 - Left Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9014-70
$53.24
16 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknu t Zinc Orange Nylon
$2.99
17 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nuts Zinc
$2.99
18 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
19 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
20 027-9000-00 027-9000-00 - 2010-2012 ZT/CZT, 2010-2016 MZ/MZ Magnum Drive Arm Lever Housing (Left)
$42.58
21 027-9001-00 027-9001-00 - 2010-2012 ZT/CZT, 2010-2016 MZ/MZ Magnum Drive Arm Lever Housing (Right)
$42.58
22 087-3000-00 087-3000-00 - Steering Damper (obsolete)
use part #087-0001-00
$62.40
25 031-9025-00 031-9025-00 - Right Steering Arm Gold Elbow (See Models Used On For Details) (obsolete)
use part #031-9025-70
$85.17
26 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
