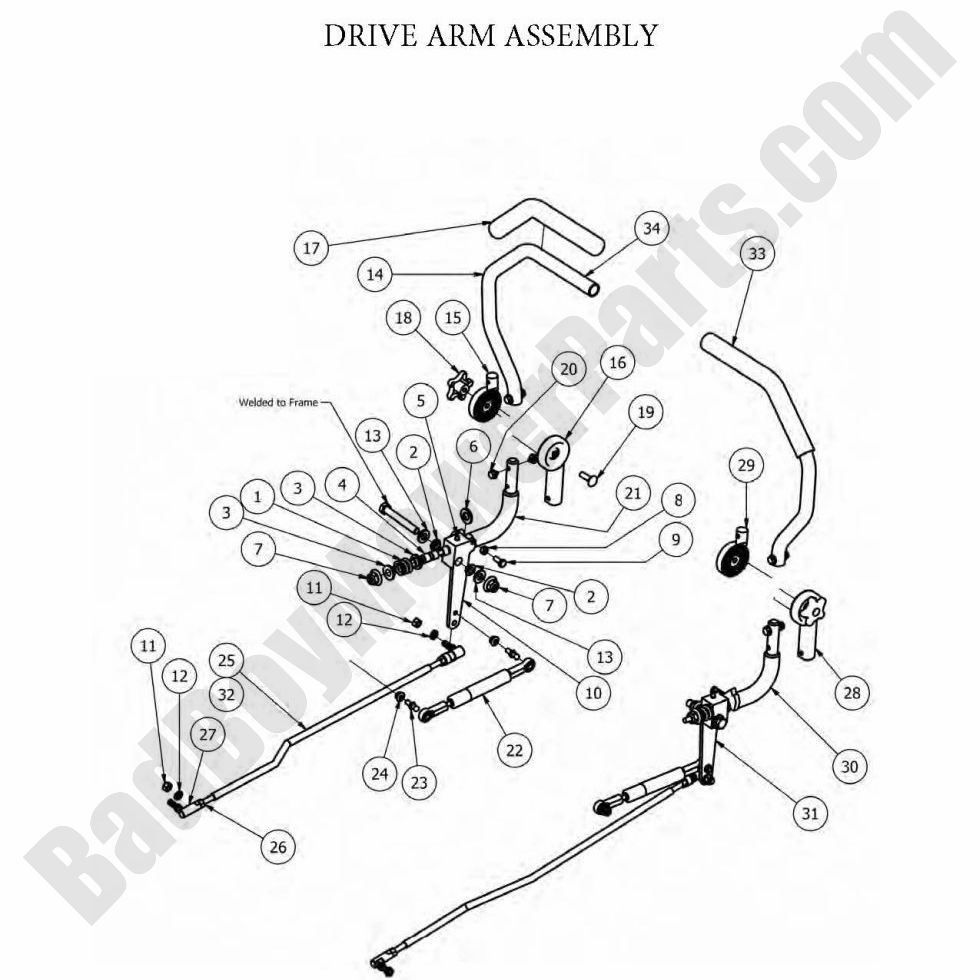

2012 Diesels - Drive Arm Assembly

2012 Diesels - Drive Arm Assembly

The Drive Arm Assembly is an essential part of your 2012 Diesels Bad Boy mower’s drive system. When it’s time to replace or repair this part, BadBoyMowerParts.com is your trusted source. Our extensive catalog of Bad Boy Mower Parts includes everything you need for a proper fit. You can easily find the right part by using our Bad Boy Mower Part diagrams, which clearly identify each component. Our website offers a user-friendly experience, allowing you to shop for Bad Boy Lawn Mower Parts online without hassle. Additionally, you’ll benefit from Free Shipping On Orders Over $100, making it more affordable to get the parts you need. Whether you're repairing a malfunctioning drive arm or simply performing routine maintenance, BadBoyMowerParts.com ensures that you’ll receive the highest quality parts for your 2012 Diesels mower. Shop with us today and keep your mower operating smoothly for years to come.

Bad Boy Mower Parts Lookup

2012 Diesels - Drive Arm Assembly
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
2 032-5055-00 032-5055-00 - Drive Arm Bushing (See Models Used On For Detail)
$6.41
3 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
4 032-8024-00 032-8024-00 -.502x.618x.500 Spacer Nylon Drive Arm Block
$2.99
5 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
6 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
9 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
10 027-8819-00 027-8819-00 - Drive Arm Lever Housing-Left (See Models Used On For Details)
$46.84
11 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
12 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
13 019-7000-00 019-7000-00 -.505x1x.125 Oil Impregnated Washer for 2012 Drive Arm Blocks
$4.83
14 031-9010-00 031-9010-00 - Upper Tube-Adjustable Steering Arms (obsolete)
use part #031-9010-18
$28.32
15 031-9017-00 031-9017-00 - Left Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9017-70
$53.24
16 031-9014-00 031-9014-00 - Left Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9014-70
$53.24
17 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
18 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
19 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
20 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
21 031-9020-00 031-9020-00 - Left Steering Arm Elbow
$85.17
22 087-8080-00 087-8080-00 - Drive Arm Damper w/ ball socket Stabilus 000214
$56.72
23 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
24 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
25 035-6060-00 035-6060-00 - Steering Push Rod (See Models Used On For Details)
$35.67
27 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
28 031-9015-00 031-9015-00 - Right Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9015-70
$53.24
29 031-9016-00 031-9016-00 - Right Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9016-70
$53.24
30 031-9025-00 031-9025-00 - Right Steering Arm Gold Elbow (See Models Used On For Details)
$85.17
31 027-8820-00 027-8820-00 - Drive Arm Lever Housing-Right (See Models Used On For Details)
$46.84
32 035-6050-00 035-6050-00 - 35HP Cat Diesel Steering Push Rod
$40.61
