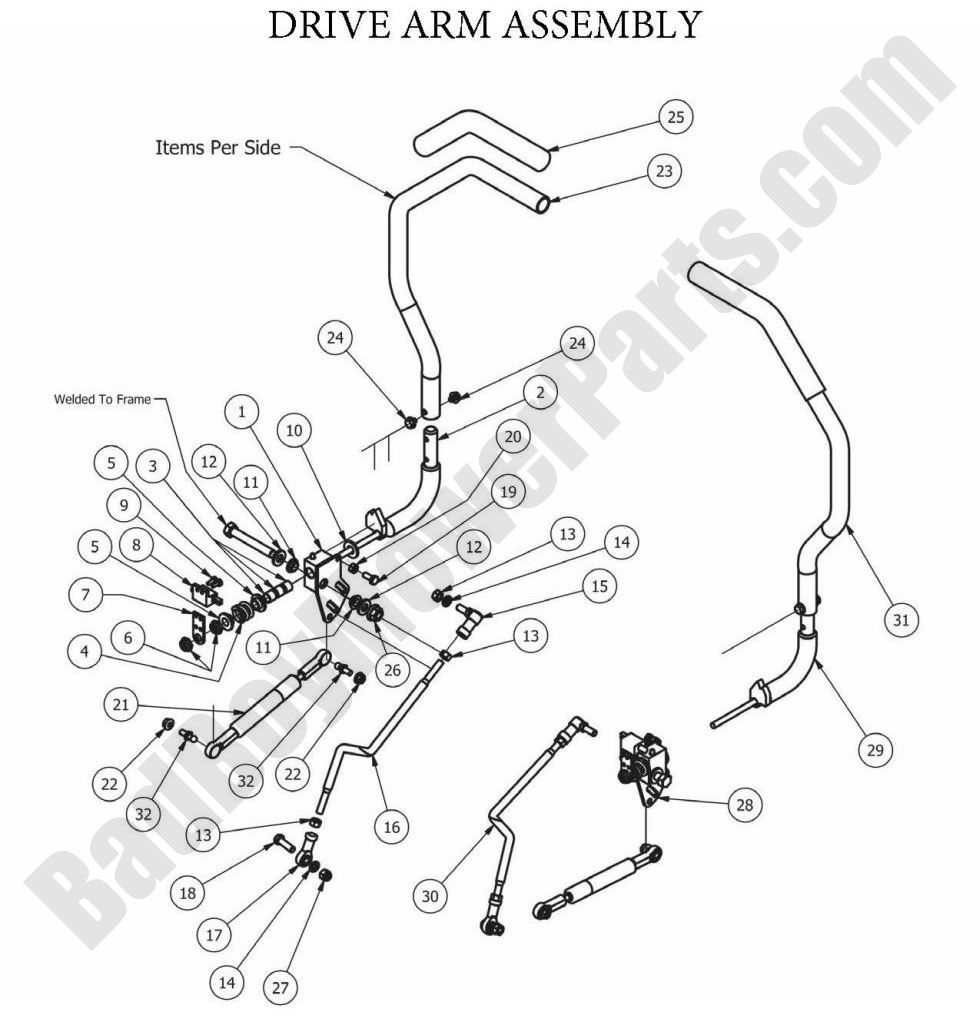

2013 ZT Elite - Drive Arm Assembly

2013 ZT Elite - Drive Arm Assembly

The 2013 ZT Elite Drive Arm Assembly plays a critical role in the powertrain of your mower, ensuring smooth movement and control. BadBoyMowerParts.com offers a complete selection of Bad Boy Mower Parts, including the essential drive arm assembly. With our Bad Boy Mower Part diagrams, finding the exact part you need is straightforward and hassle-free. Whether you're replacing worn parts or conducting a full repair, we have the Bad Boy Lawn Mower Parts to get your machine back to optimal performance. Enjoy the convenience of Bad Boy Parts Online, and take advantage of our Free Shipping On Orders Over $100 to save even more. Keeping your 2013 ZT Elite in excellent working condition is easy when you shop with BadBoyMowerParts.com for all your drive arm assembly needs.

Bad Boy Mower Parts Lookup

2013 ZT Elite - Drive Arm Assembly
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 027-8900-00 027-8900-00 - Drive Lever Housing (Left)2013 cZT, ZT, (obsolete)
use part #031-0017-98
$31.23
2 031-9020-00 031-9020-00 - Left Steering Arm Elbow
$85.17
3 032-8024-00 032-8024-00 -.502x.618x.500 Spacer Nylon Drive Arm Block
$2.99
4 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
5 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
6 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
7 039-1125-00 039-1125-00 - MZ Switch Bracket
$5.22
8 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
9 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
10 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
11 032-5055-00 032-5055-00 - Drive Arm Bushing (See Models Used On For Detail)
$6.41
12 019-7000-00 019-7000-00 -.505x1x.125 Oil Impregnated Washer for 2012 Drive Arm Blocks
$4.83
13 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
14 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
15 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
16 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
17 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
18 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
19 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
20 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
21 087-3000-00 087-3000-00 - Steering Damper (obsolete)
use part #087-0001-00
$62.40
22 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
23 031-8850-98 031-8850-98 - OBSOLETE USE Part # 031-8850-70 Left Steering Arm Assembly Gold Elbow (See Models Used On For Details) (obsolete)
use part #031-8850-70
$93.64
24 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
25 069-4007-00 069-4007-00 - Rubber Steering Arm USE 069-4010-00 (obsolete)
use part #069-4010-00
$8.12
26 013-0085-00 013-0085-00 - 1/2-13 Hex Flange Nut Zinc
$2.99
27 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
28 027-8901-00 027-8901-00 - 2013-2015 ZT/CZT, 2013-2016 Outlaw, 2016 Maverick Drive Lever Housing (Right)
$14.19
29 031-9025-00 031-9025-00 - Right Steering Arm Gold Elbow (See Models Used On For Details)
$85.17
30 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
31 031-8851-98 031-8851-98 - OBSOLETE USE Part # 031-8851-70 Right Steering Arm Assembly Gold Elbow (See Models Used On For Details) (obsolete)
use part #031-8851-70
$93.64
32 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
