2007 Diesel Drive Arms

Drive Arms

The Bad Boy Mower parts diagram for the 2007 Diesel Drive Arms is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mower dealers parts diagrams for the 2007 Diesel models. Find all of your Bad Boy mowers 2007 Diesel parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2007 Diesel Drive Arms. If you are not able to find the Bad Boy parts for your 2007 Diesel please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2007 Diesel Drive Arms
  Position Number SKU Product Title Price

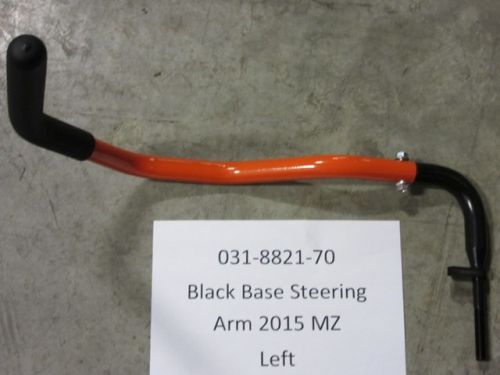

1A 031-8821-70 031-8821-70 - Left Steering Arm Black Elbow (See Models Used On For Details)
$99.32
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$181.89

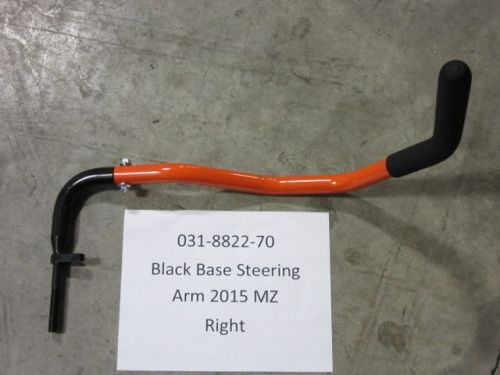

1 031-8822-70 031-8822-70 - Right Steering Arm Black Elbow (See Models Used On For Details)
$99.32
2 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
3A 027-8820-00 027-8820-00 - 2007-2011 Pup/Lightning, 2012-2016 Outlaw XP, 2007-2017 Diesel Drive Arm Lever Housing Right
$46.84
3 027-8819-00 027-8819-00 - 2007-2011 Pup/Lightning, 2012-2016 Outlaw XP, 2007-2017 Diesel Drive Arm Lever Housing (left)
$46.84
4 087-8080-00 087-8080-00 - Drive Arm Damper w/ ball socke Stabilus 000214
$56.72
5 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
6 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
7 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washe
$2.99
8 035-5344-00 035-5344-00 - Steering Push Rod-Pup/Lightnin
$30.87
9 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
10 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
11 032-8024-00 032-8024-00 -.502x.618x.500 Spacer Nylon Drive Arm Block
$2.99
12 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
13 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
14 018-8063-00 018-8063-00 - 5/16-18 X 3/4 GR 5 Hex Bolts Z
$2.99
15 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
16 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
17 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
18 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nuts Zinc
$2.99
