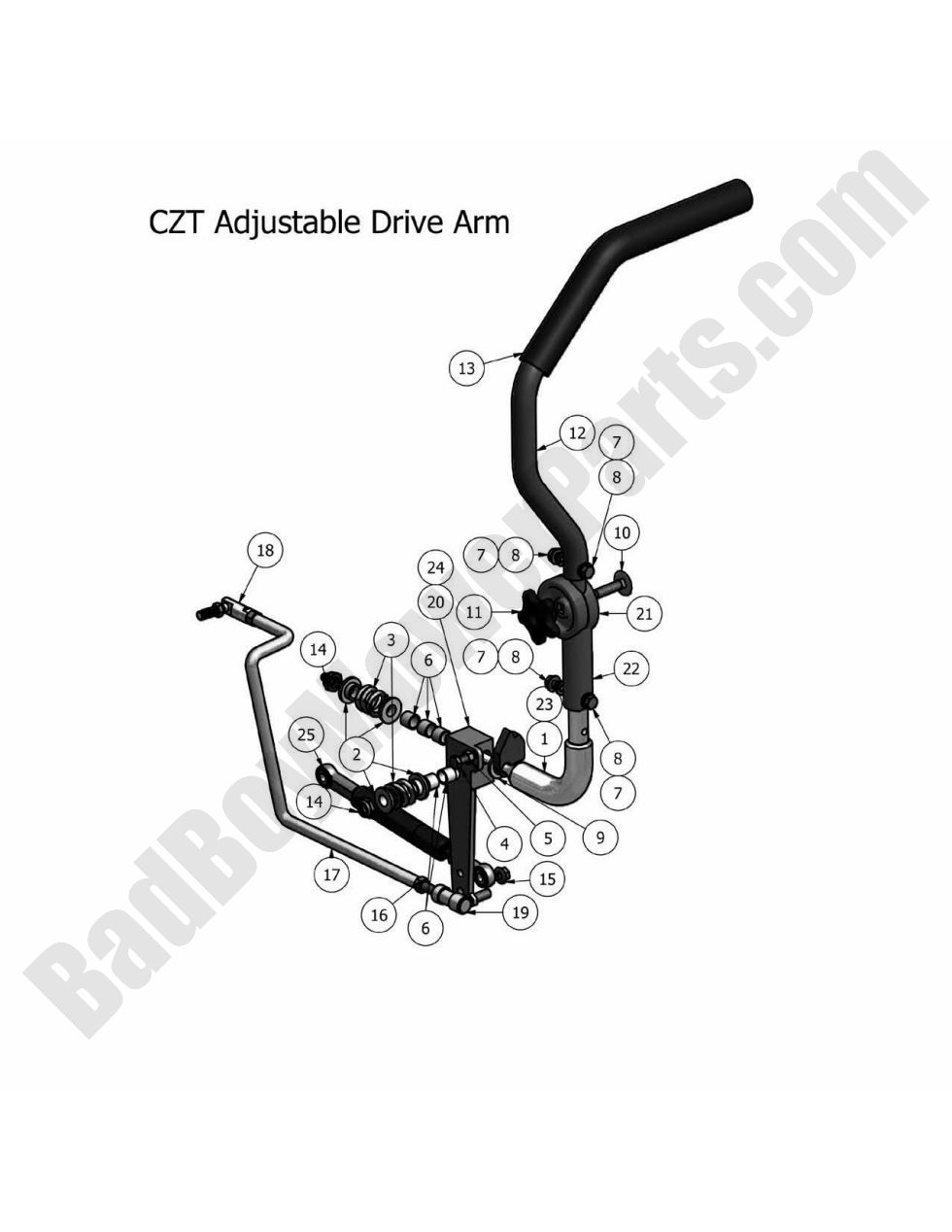

2011 CZT - Drive Arms

2011 CZT - Drive Arms

The 2011 CZT Drive Arms are key to the functionality of your mower’s drivetrain, ensuring smooth power transfer to the wheels. If you're experiencing issues with your drive system, it might be time to replace the drive arms. BadBoyMowerParts.com offers an extensive selection of Bad Boy Mower Parts, including 2011 CZT Drive Arms, to keep your mower operating at its peak. Our website features clear Bad Boy Mower Part diagrams, making it easy to find the exact parts you need for your mower. When you shop with us, you gain access to Bad Boy Lawn Mower Parts at competitive prices, all backed by our exceptional customer service. By purchasing Bad Boy Parts Online, you ensure a hassle-free shopping experience. With Free Shipping On Orders Over $100, maintaining your mower has never been easier or more affordable. Keep your 2011 CZT Drive Arms in top condition with our high-quality parts and fast shipping.

Bad Boy Mower Parts Lookup

2011 CZT - Drive Arms
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 031-9025-00 031-9025-00 - Right Steering Arm Gold Elbow (See Models Used On For Details)
$85.17
2 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
3 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
4 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
5 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
6 032-8024-00 032-8024-00 -.502x.618x.500 Spacer Nylon Drive Arm Block
$2.99
7 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
8 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
9 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
10 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
11 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
12 031-9010-00 031-9010-00 - Upper Tube-Adjustable Steering Arms (obsolete)
use part #031-9010-18
$28.32
13 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
14 013-6037-00 013-6037-00 - 1/2-13 Nylon Insert Locknut Zinc
$2.99
15 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
16 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
17 035-5400-00 035-5400-00 - 2007-2012 CZT/ZT Right Steering Push Rod
$30.87
18 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
19 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
20 027-9000-00 027-9000-00 - 2010-2012 ZT/CZT, 2010-2016 MZ/MZ Magnum Drive Arm Lever Housing (Left)
$42.58
21 031-9015-00 031-9015-00 - Right Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9015-70
$53.24
22 031-9016-00 031-9016-00 - Right Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9016-70
$53.24
23 031-9020-00 031-9020-00 - Left Steering Arm Elbow
$85.17
24 027-9001-00 027-9001-00 - 2010-2012 ZT/CZT, 2010-2016 MZ/MZ Magnum Drive Arm Lever Housing (Right)
$42.58
25 087-8080-00 087-8080-00 - Drive Arm Damper w/ ball socket Stabilus 000214
$56.72
