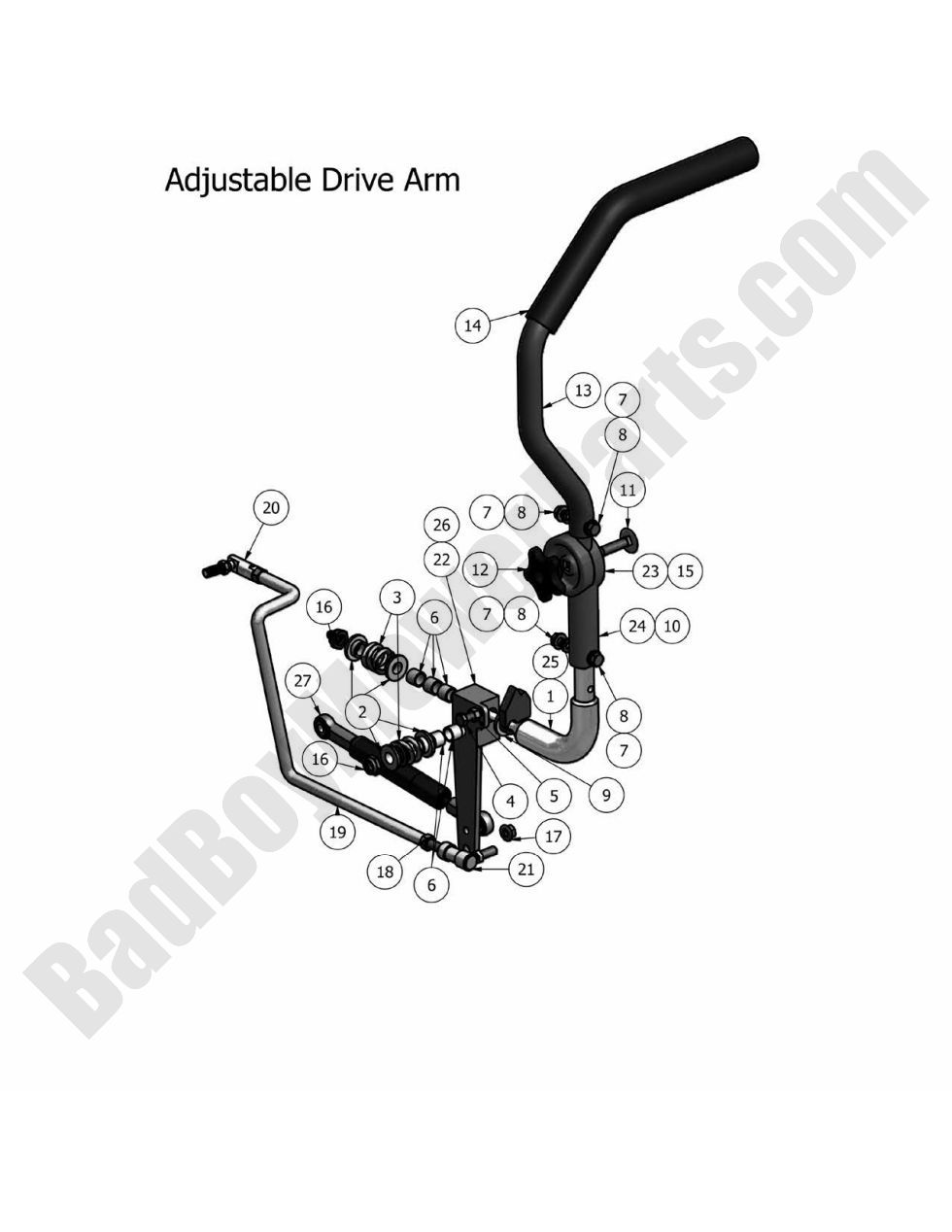

2011 Diesels - Drive Arms

2011 Diesels - Drive Arms

The 2011 Diesels Drive Arms are critical to the functionality of your mower, ensuring that power is properly transferred to the wheels for smooth operation. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts, including these essential drive arms for your 2011 Diesels. With the help of our Bad Boy Mower Part diagrams, you can easily locate the exact parts needed for replacement or repair. Our Bad Boy Lawn Mower Parts are built to withstand the demands of regular mowing, keeping your mower running smoothly for longer. When you purchase Bad Boy Parts Online, you know you're getting reliable parts that will fit your mower perfectly. Plus, enjoy Free Shipping On Orders Over $100 so you can save on delivery costs. Trust us to provide the best parts for your 2011 Diesels and keep your mower running at peak performance.

Bad Boy Mower Parts Lookup

2011 Diesels - Drive Arms
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 031-9025-00 031-9025-00 - Right Steering Arm Gold Elbow (See Models Used On For Details)
$85.17
2 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
3 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
4 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
5 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
6 032-8024-00 032-8024-00 -.502x.618x.500 Spacer Nylon Drive Arm Block
$2.99
7 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
8 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
9 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
10 031-9017-00 031-9017-00 - Left Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9017-70
$53.24
11 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
12 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
13 031-9010-00 031-9010-00 - Upper Tube-Adjustable Steering Arms (obsolete)
use part #031-9010-18
$28.32
14 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
15 031-9015-00 031-9015-00 - Right Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9015-70
$53.24
16 013-6037-00 013-6037-00 - 1/2-13 Nylon Insert Locknut Zinc
$2.99
17 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
18 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
19 035-6050-00 035-6050-00 - 35HP Cat Diesel Steering Push Rod
$40.61
20 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
21 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
22 027-8819-00 027-8819-00 - Drive Arm Lever Housing-Left (See Models Used On For Details)
$46.84
24 031-9016-00 031-9016-00 - Right Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9016-70
$53.24
25 031-9020-00 031-9020-00 - Left Steering Arm Elbow
$85.17
26 027-8820-00 027-8820-00 - Drive Arm Lever Housing-Right (See Models Used On For Details)
$46.84
