2011 MZ Drive Arms

Drive Arms

The Bad Boy Mower parts diagram for the 2011 MZ Drive Arms is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2011 MZ models. Find all of your Bad Boy mowers 2011 MZ parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2011 MZ Drive Arms. If you are not able to find the Bad Boy parts for your 2011 MZ please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2011 MZ Drive Arms
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$181.89
1 031-8821-70 031-8821-70 - Left Steering Arm Black Elbow (See Models Used On For Details)
$99.32
2 027-9000-00 027-9000-00 - 2010-2012 ZT/CZT, 2010-2016 MZ/MZ Magnum Drive Arm Lever Housing (Left)
$42.58
3 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washe
$2.99
4 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
5 018-8063-00 018-8063-00 - 5/16-18 X 3/4 GR 5 Hex Bolts Z
$2.99
6 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
7 032-8024-00 032-8024-00 -.502x.618x.500 Spacer Nylon Drive Arm Block
$2.99
8 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
9 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
10 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
11 069-4007-00 069-4007-00 - Rubber Steering Arm USE 069-4010-00 (obsolete)
use part #069-4010-00
$8.12
12 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
13 013-6052-00 013-6052-00 - 1/2-20 Nylon Insert Jam Locknu t Zinc Orange Zinc
$2.99
15 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99

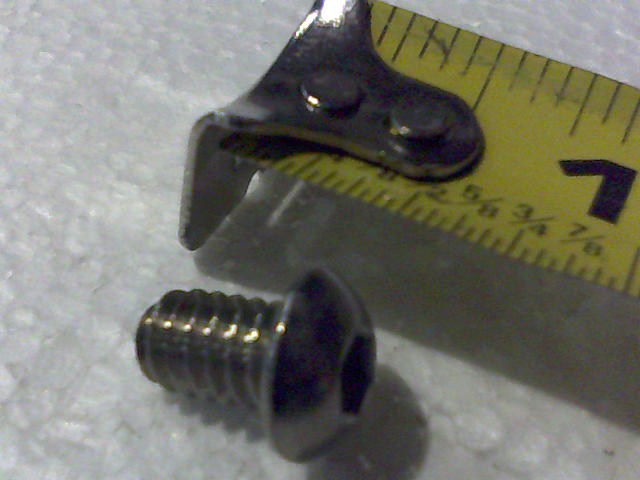

16 018-1070-00 018-1070-00 - 1/4 x 3/8 Buttonhead Bolt
$2.99
17 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
18 031-8822-70 031-8822-70 - Right Steering Arm Black Elbow (See Models Used On For Details)
$99.32
19 027-9001-00 027-9001-00 - 2010-2012 ZT/CZT, 2010-2016 MZ/MZ Magnum Drive Arm Lever Housing (Right)
$42.58
