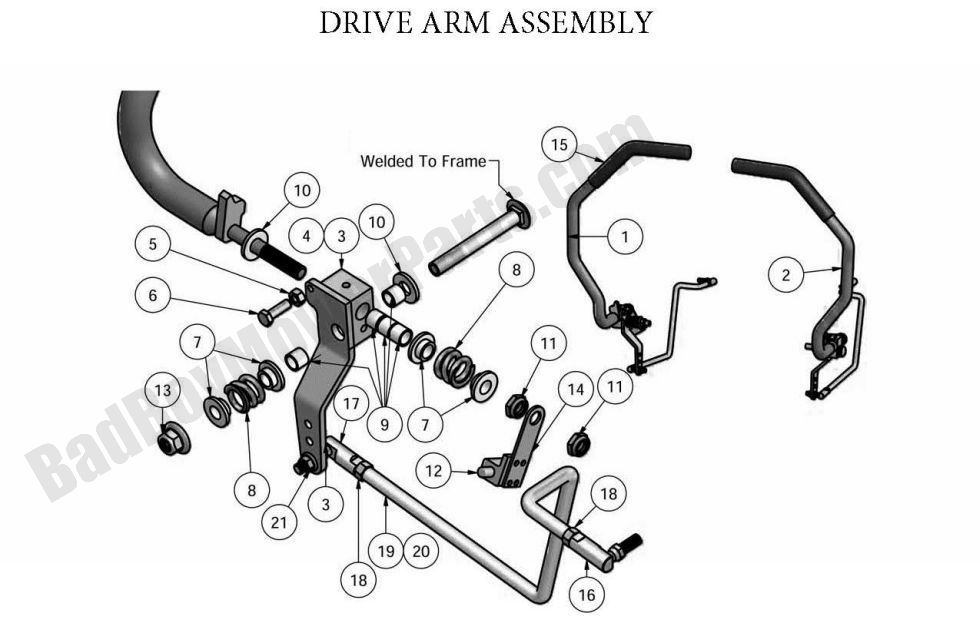

2011 ZT - Drive Arms

2011 ZT - Drive Arms

The 2011 ZT Drive Arms are essential for smooth maneuverability and precise handling of your mower. At BadBoyMowerParts.com, we provide premium Bad Boy Mower Parts to keep your machine operating at peak performance. Whether you're experiencing stiffness in steering or need a full replacement, our Bad Boy Mower Part diagrams make it easy to find the exact drive arms you need. Ensuring your mower's drive system functions correctly means using only genuine Bad Boy Lawn Mower Parts, which deliver superior durability and reliability. Finding the right Bad Boy Parts Online has never been simpler, with our extensive selection of high-quality replacement parts available for fast ordering. Drive arms are crucial for maintaining the mower’s agility and responsiveness, so regular inspections and timely replacements are necessary. Plus, with Free Shipping On Orders Over $100, getting your mower back to top shape is more convenient and cost-effective. Count on BadBoyMowerParts.com for all your drive arm replacement needs.

Bad Boy Mower Parts Lookup

2011 ZT - Drive Arms
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 031-8851-98 031-8851-98 - OBSOLETE USE Part # 031-8851-70 Right Steering Arm Assembly Gold Elbow (See Models Used On For Details) (obsolete)
use part #031-8851-70
$93.64
2 031-8850-98 031-8850-98 - OBSOLETE USE Part # 031-8850-70 Left Steering Arm Assembly Gold Elbow (See Models Used On For Details) (obsolete)
use part #031-8850-70
$93.64
3 027-9001-00 027-9001-00 - 2010-2012 ZT/CZT, 2010-2016 MZ/MZ Magnum Drive Arm Lever Housing (Right)
$42.58
4 027-9000-00 027-9000-00 - 2010-2012 ZT/CZT, 2010-2016 MZ/MZ Magnum Drive Arm Lever Housing (Left)
$42.58
5 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
6 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
7 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
8 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
9 032-8024-00 032-8024-00 -.502x.618x.500 Spacer Nylon Drive Arm Block
$2.99
10 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
11 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
12 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
13 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
15 069-4007-00 069-4007-00 - Rubber Steering Arm USE 069-4010-00 (obsolete)
use part #069-4010-00
$8.12
16 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
17 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
18 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
19 035-5400-00 035-5400-00 - 2007-2012 CZT/ZT Right Steering Push Rod
$30.87
20 035-5401-00 035-5401-00 - 2007-2012 CZT/ZT Left Steering Push Rod
$30.87
21 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
