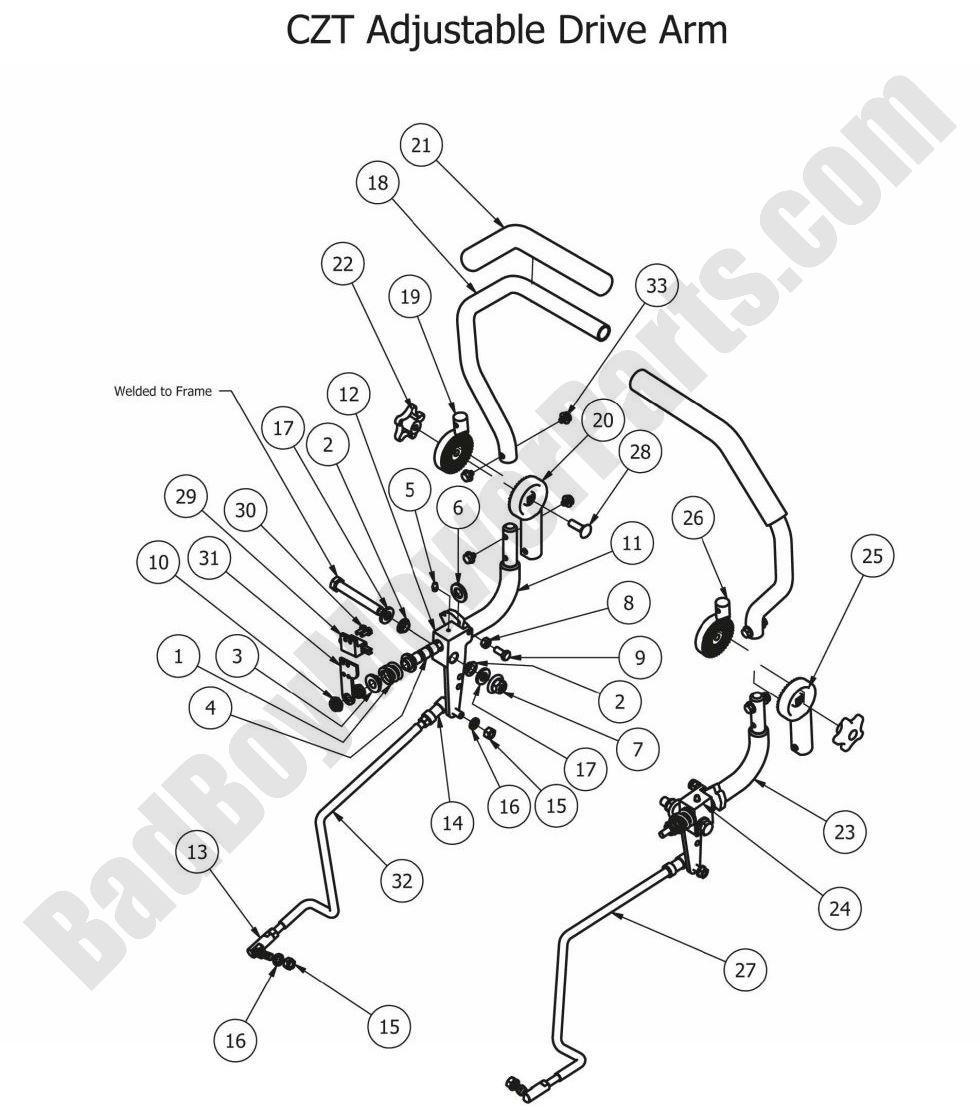

2012 CZT - Drive Arms

2012 CZT - Drive Arms

Introducing the 2012 CZT Drive Arms, engineered components designed to transmit power effectively and ensure optimal steering for your mower. These drive arms are constructed from durable materials and crafted using manufacturing techniques, ensuring they withstand the stresses of continuous operation in both commercial and residential settings. Their robust design facilitates smooth power transfer from the engine to the wheels, enhancing overall maneuverability and performance. The drive arms integrate with the CZT’s mechanical systems, contributing to traction and reduced wear on other components. Comprehensive installation instructions and maintenance guidelines are provided to guarantee proper alignment and long service. For detailed schematics, verified components, and expert technical support, please consult Bad Boy Mower Part diagrams, Bad Boy Mower Parts, Bad Boy Lawn Mower Parts, Bad Boy Parts Online and Free Shipping On Orders Over $100 available on our website. Visit BadBoyMowerParts.com for guidance and professional advice. Upgrade your mower with these drive arms to achieve performance every time. Enjoy performance today.

Bad Boy Mower Parts Lookup

2012 CZT - Drive Arms
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
2 032-5055-00 032-5055-00 - Drive Arm Bushing (See Models Used On For Detail)
$6.41
3 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
4 032-8024-00 032-8024-00 -.502x.618x.500 Spacer Nylon Drive Arm Block
$2.99
5 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
6 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
9 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
10 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
11 031-9020-00 031-9020-00 - Left Steering Arm Elbow
$85.17
12 027-9000-00 027-9000-00 - 2010-2012 ZT/CZT, 2010-2016 MZ/MZ Magnum Drive Arm Lever Housing (Left)
$42.58
13 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
14 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
15 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
16 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
17 019-7000-00 019-7000-00 -.505x1x.125 Oil Impregnated Washer for 2012 Drive Arm Blocks
$4.83
18 031-9010-00 031-9010-00 - Upper Tube-Adjustable Steering Arms (obsolete)
use part #031-9010-18
$28.32
19 031-9017-00 031-9017-00 - Left Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9017-70
$53.24
20 031-9014-00 031-9014-00 - Left Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9014-70
$53.24
21 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
22 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
23 031-9025-00 031-9025-00 - Right Steering Arm Gold Elbow (See Models Used On For Details)
$85.17
24 027-9001-00 027-9001-00 - 2010-2012 ZT/CZT, 2010-2016 MZ/MZ Magnum Drive Arm Lever Housing (Right)
$42.58
25 031-9015-00 031-9015-00 - Right Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9015-70
$53.24
26 031-9016-00 031-9016-00 - Right Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9016-70
$53.24
27 035-5400-00 035-5400-00 - 2007-2012 CZT/ZT Right Steering Push Rod
$30.87
28 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
29 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
30 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
32 035-5401-00 035-5401-00 - 2007-2012 CZT/ZT Left Steering Push Rod
$30.87
33 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
