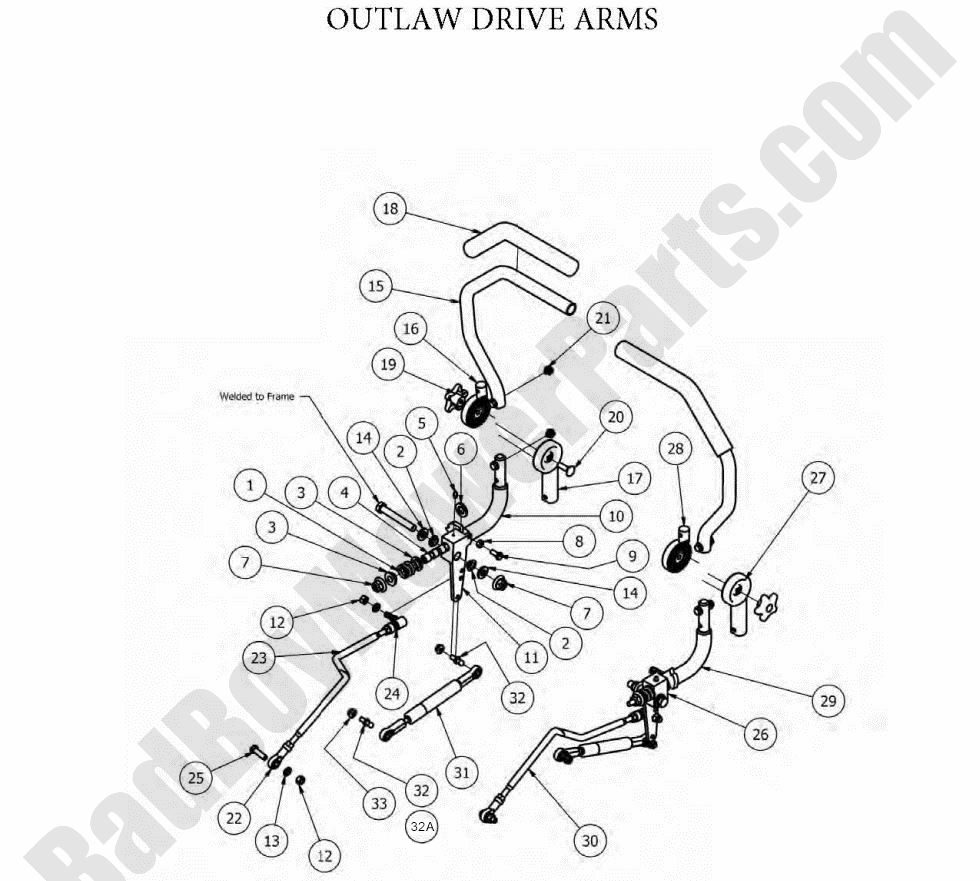

2012 Outlaw & Outlaw Extreme - Drive Arms

2012 Outlaw & Outlaw Extreme - Drive Arms

The 2012 Outlaw & Outlaw Extreme Drive Arms are essential for transferring power from the engine to the wheels, ensuring your mower moves smoothly and efficiently. If your drive arms are worn or damaged, BadBoyMowerParts.com has a wide selection of Bad Boy Mower Parts that are specifically designed for the 2012 Outlaw & Outlaw Extreme series. Our Bad Boy Mower Part diagrams make it simple to identify the right parts, ensuring you get the correct replacement components for your mower. We offer only the best Bad Boy Lawn Mower Parts, designed to last and keep your mower in optimal condition. Shopping Bad Boy Parts Online is easy and convenient, with a secure checkout process and fast processing. Plus, enjoy Free Shipping On Orders Over $100, so you can save on shipping while getting your mower back to full operation. Trust BadBoyMowerParts.com for all your drive arm needs and keep your mower performing at its best.

Bad Boy Mower Parts Lookup

2012 Outlaw & Outlaw Extreme - Drive Arms
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
2 032-5055-00 032-5055-00 - Drive Arm Bushing (See Models Used On For Detail)
$6.41
3 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
4 032-8024-00 032-8024-00 -.502x.618x.500 Spacer Nylon Drive Arm Block
$2.99
5 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
6 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
9 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
10 031-9020-00 031-9020-00 - Left Steering Arm Elbow
$85.17
11 027-9000-00 027-9000-00 - 2010-2012 ZT/CZT, 2010-2016 MZ/MZ Magnum Drive Arm Lever Housing (Left)
$42.58
12 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
13 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
14 019-7000-00 019-7000-00 -.505x1x.125 Oil Impregnated Washer for 2012 Drive Arm Blocks
$4.83
15 031-9010-00 031-9010-00 - Upper Tube-Adjustable Steering Arms (obsolete)
use part #031-9010-18
$28.32
16 031-9017-00 031-9017-00 - Left Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9017-70
$53.24
17 031-9014-00 031-9014-00 - Left Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9014-70
$53.24
18 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
19 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
20 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
21 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
22 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
23 035-2050-00 035-2050-00 - 2010-2012 Outlaw/ Outlaw Extreme Left Steering Push Rod
$32.09
24 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
25 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
26 027-9001-00 027-9001-00 - 2010-2012 ZT/CZT, 2010-2016 MZ/MZ Magnum Drive Arm Lever Housing (Right)
$42.58
27 031-9015-00 031-9015-00 - Right Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9015-70
$53.24
28 031-9016-00 031-9016-00 - Right Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9016-70
$53.24
29 031-9025-00 031-9025-00 - Right Steering Arm Gold Elbow (See Models Used On For Details)
$85.17
30 035-2000-00 035-2000-00 - 2010-2012 Outlaw/ Outlaw Extreme Right Steering Push Rod
$32.09
31 087-3000-00 087-3000-00 - Steering Damper (obsolete)
use part #087-0001-00
$62.40
32A 018-2049-00 018-2049-00 - 13mm Ball Stud for 72" Deck Damper (See Models Used On For Details)
$4.83
32 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
33 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
