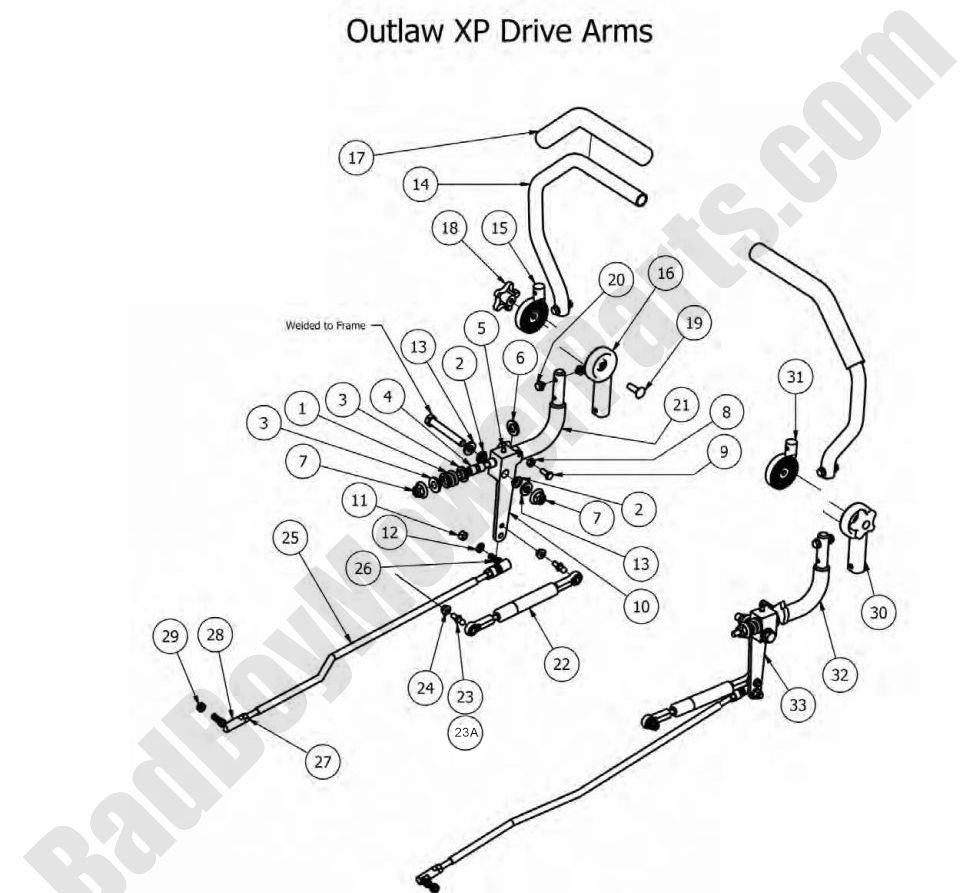

2012 Outlaw XP - Drive Arms

2012 Outlaw XP - Drive Arms

The 2012 Outlaw XP Drive Arms are an essential component of your mower, transferring the power from the engine to the wheels for smooth operation. If you need replacements or repairs, BadBoyMowerParts.com offers a full range of Bad Boy Mower Parts designed to keep your mower running like new. Our detailed Bad Boy Mower Part diagrams make it easy to find the right parts to fit your 2012 Outlaw XP model. Whether you need new drive arms or individual components, we have the parts you need to restore your mower’s performance. We focus on providing Bad Boy Lawn Mower Parts that are high-quality and built to last, ensuring your mower continues to perform at its best. By shopping Bad Boy Parts Online, you can order your parts quickly and easily. Plus, with Free Shipping On Orders Over $100, you can save on delivery costs while ensuring that your mower stays in optimal working condition. Shop today at BadBoyMowerParts.com!

Bad Boy Mower Parts Lookup

2012 Outlaw XP - Drive Arms
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
2 032-5055-00 032-5055-00 - Drive Arm Bushing (See Models Used On For Detail)
$6.41
3 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
4 032-8024-00 032-8024-00 -.502x.618x.500 Spacer Nylon Drive Arm Block
$2.99
5 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
6 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
9 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
10 027-8819-00 027-8819-00 - Drive Arm Lever Housing-Left (See Models Used On For Details)
$46.84
11 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
12 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
13 019-7000-00 019-7000-00 -.505x1x.125 Oil Impregnated Washer for 2012 Drive Arm Blocks
$4.83
14 031-9010-00 031-9010-00 - Upper Tube-Adjustable Steering Arms (obsolete)
use part #031-9010-18
$28.32
15 031-9017-00 031-9017-00 - Left Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9017-70
$53.24
16 031-9014-00 031-9014-00 - Left Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9014-70
$53.24
17 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
18 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
19 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
20 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
21 031-9020-00 031-9020-00 - Left Steering Arm Elbow
$85.17
22 087-8080-00 087-8080-00 - Drive Arm Damper w/ ball socket Stabilus 000214
$56.72
23A 018-2049-00 018-2049-00 - 13mm Ball Stud for 72" Deck Damper (See Models Used On For Details)
$4.83
23 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
24 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
25 035-5350-00 035-5350-00 - 2012-2018 Outlaw XP Steering Push Rod
$31.22
26 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
28 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
29 018-4011-00 018-4011-00 - 3/8-24 Zinc Nylon Insert Jam Locknut
$2.99
30 031-9015-00 031-9015-00 - Right Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9015-70
$53.24
31 031-9016-00 031-9016-00 - Right Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9016-70
$53.24
32 031-9025-00 031-9025-00 - Right Steering Arm Gold Elbow (See Models Used On For Details)
$85.17
33 027-8820-00 027-8820-00 - Drive Arm Lever Housing-Right (See Models Used On For Details)
$46.84
