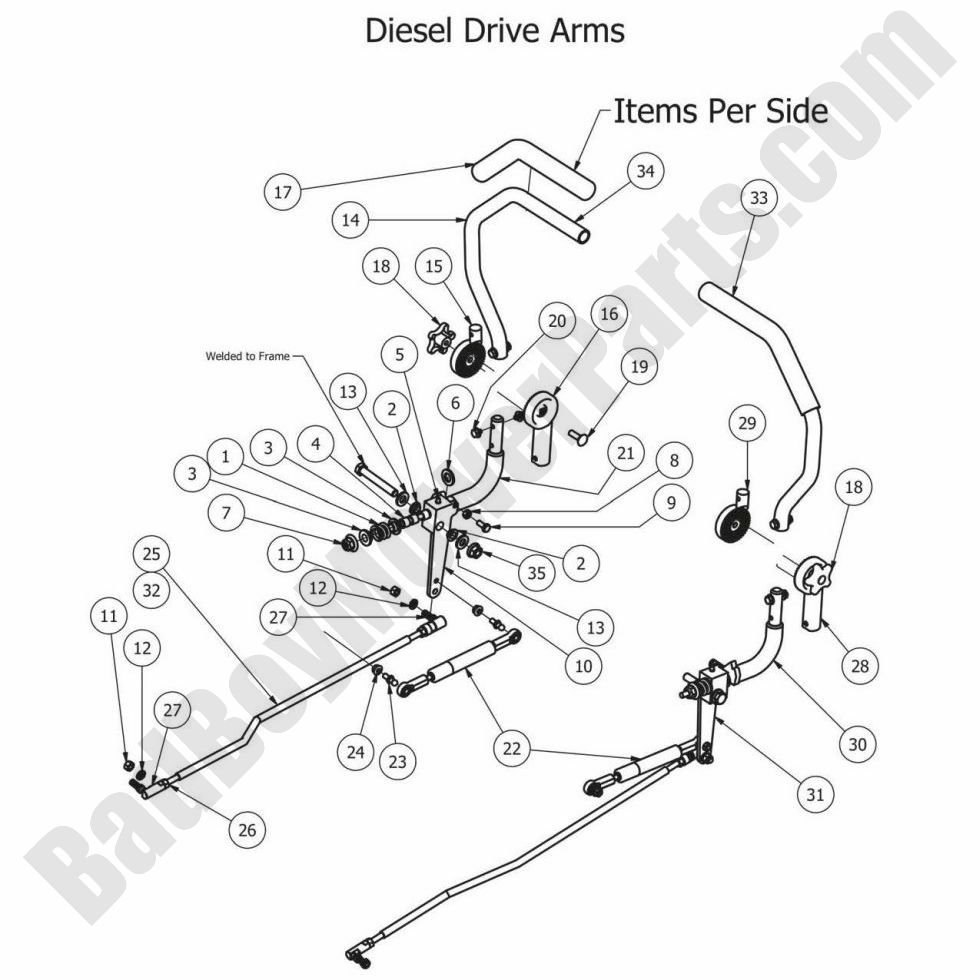

2013 Diesels - Drive Arms

2013 Diesels - Drive Arms

If your 2013 Diesels mower is experiencing issues with its drive system, the 2013 Diesels Drive Arms could be the problem. At BadBoyMowerParts.com, we offer a comprehensive selection of Bad Boy Mower Parts to get your mower back on track. Our Bad Boy Mower Part diagrams help you pinpoint the exact drive arms and related components you need for your mower. With our collection of Bad Boy Lawn Mower Parts, you can easily replace worn or broken drive arms to ensure smooth operation. All of our parts are genuine and designed for durability, so you can trust their performance. Ordering Bad Boy Parts Online is simple, and with Free Shipping On Orders Over $100, you can get the parts you need delivered right to your door. Keep your 2013 Diesels mower running smoothly with quality replacement parts from our site.

Bad Boy Mower Parts Lookup

2013 Diesels - Drive Arms
  Position Number SKU Product Title Price
1A 031-9060-18 031-9060-18 - Adjustable Steering Arm Kit
$178.99
1 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
2 032-5055-00 032-5055-00 - Drive Arm Bushing (See Models Used On For Detail)
$6.41
3 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
4 032-8024-00 032-8024-00 -.502x.618x.500 Spacer Nylon Drive Arm Block
$2.99
5 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
6 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
9 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
11 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
12 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
13 019-7000-00 019-7000-00 -.505x1x.125 Oil Impregnated Washer for 2012 Drive Arm Blocks
$4.83
14 031-9010-00 031-9010-00 - Upper Tube-Adjustable Steering Arms (obsolete)
use part #031-9010-18
$28.32
15 031-9017-00 031-9017-00 - Left Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9017-70
$53.24
16 031-9014-00 031-9014-00 - Left Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9014-70
$53.24
17 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
18 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
19 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
20 018-2020-00 018-2020-00 - 5/16-18 x 1/2 HWH Bolt - Steering Arms
$2.99
21 031-9020-00 031-9020-00 - Left Steering Arm Elbow
$85.17
22 087-8080-00 087-8080-00 - Drive Arm Damper w/ ball socket Stabilus 000214
$56.72
23 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
24 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
25 035-6060-00 035-6060-00 - Steering Push Rod (See Models Used On For Details)
$35.67
27 099-6046-00 099-6046-00 - Ball Joint - 3/8-24 (See Models Used On For Details)
$12.83
28 031-9015-00 031-9015-00 - Right Lower Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9015-70
$53.24
29 031-9016-00 031-9016-00 - Right Upper Steering Arm Adjuster (See Models Used On For Details) (obsolete)
use part #031-9016-70
$53.24
30 031-9025-00 031-9025-00 - Right Steering Arm Gold Elbow (See Models Used On For Details)
$85.17
31 027-8820-00 027-8820-00 - Drive Arm Lever Housing-Right (See Models Used On For Details)
$46.84
32 035-6050-00 035-6050-00 - 35HP Cat Diesel Steering Push Rod
$40.61
35 013-0085-00 013-0085-00 - 1/2-13 Hex Flange Nut Zinc
$2.99
110 027-8819-00 027-8819-00 - Drive Arm Lever Housing-Left (See Models Used On For Details)
$46.84
