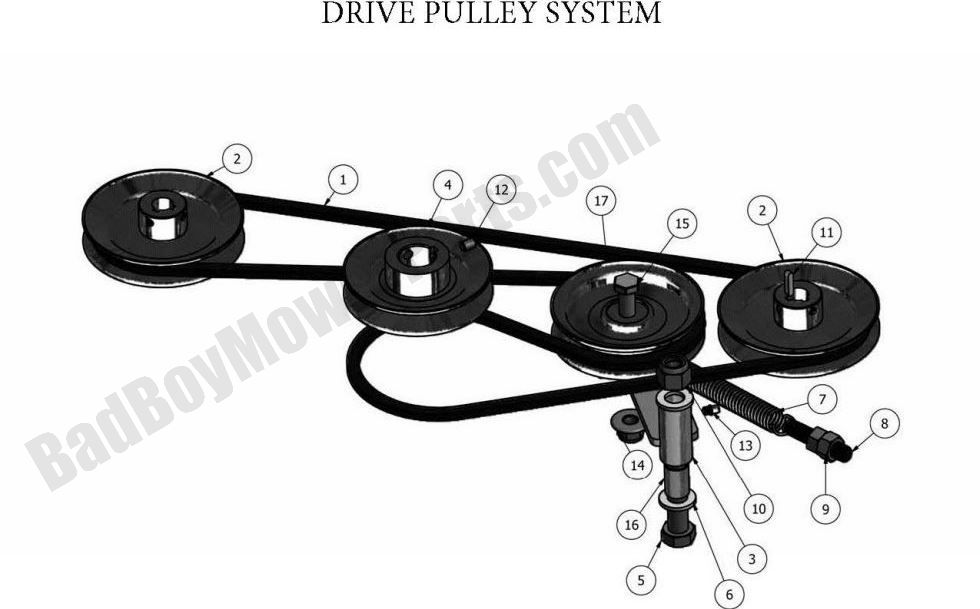

2011 Pup and Lightning - Drive Pulley Assembly

2011 Pup and Lightning - Drive Pulley Assembly

The 2011 Pup and Lightning Drive Pulley Assembly is a key component for transferring power from your engine to the drive system of your mower, ensuring efficient and reliable movement. At BadBoyMowerParts.com, we offer a wide selection of Bad Boy Mower Parts designed to maintain your mower’s peak performance. With our Bad Boy Mower Part diagrams, finding and ordering the exact drive pulley assembly you need is simple. Whether you're performing routine maintenance or replacing a worn part, our Bad Boy Lawn Mower Parts will meet your requirements. We make shopping for Bad Boy Parts Online easy, with quick access to parts for your 2011 Pup and Lightning models. Plus, enjoy Free Shipping On Orders Over $100 for even greater savings. Keep your mower operating at its best with high-quality drive pulleys and other essential parts from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2011 Pup and Lightning - Drive Pulley Assembly
  Position Number SKU Product Title Price
1 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
2 033-5003-00 033-5003-00 - 5" Cast Pump Pulley - 15mm
$56.77
3 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
4 033-5034-00 033-5034-00 - 4 3/4 Motor Pulley - DB74-601 Comes with set screw only. Keyway IS NOT included. (See Models Used On For Details)
$35.48
5 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
6 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
7 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
8 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensioner
$12.94
9 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
10 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
11 042-5301-00 042-5301-00 - 5MM X 1 Square Key Stock
$2.99
12 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
13 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
14 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
15 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
16 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
17 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
