2007 Diesel - Engine

2007 Diesel - Engine

The heart of your 2007 Diesel mower is its engine, and at BadBoyMowerParts.com, we provide the Bad Boy Mower Parts you need to maintain or replace it. Whether you’re looking for replacement parts like fuel injectors or a complete engine overhaul kit, we offer a wide selection of high-quality components designed to keep your engine running like new. Our Bad Boy Mower Part diagrams make it easy to locate and select the right Bad Boy Lawn Mower Parts for your engine. Plus, with Bad Boy Parts Online, you can shop conveniently from home, knowing you’re getting the best deals on top-quality parts. And don’t forget, we offer Free Shipping On Orders Over $100, making it even easier to get your parts delivered to your door. Keep your 2007 Diesel Engine performing at its best with parts from BadBoyMowerParts.com today.

Bad Boy Mower Parts Lookup

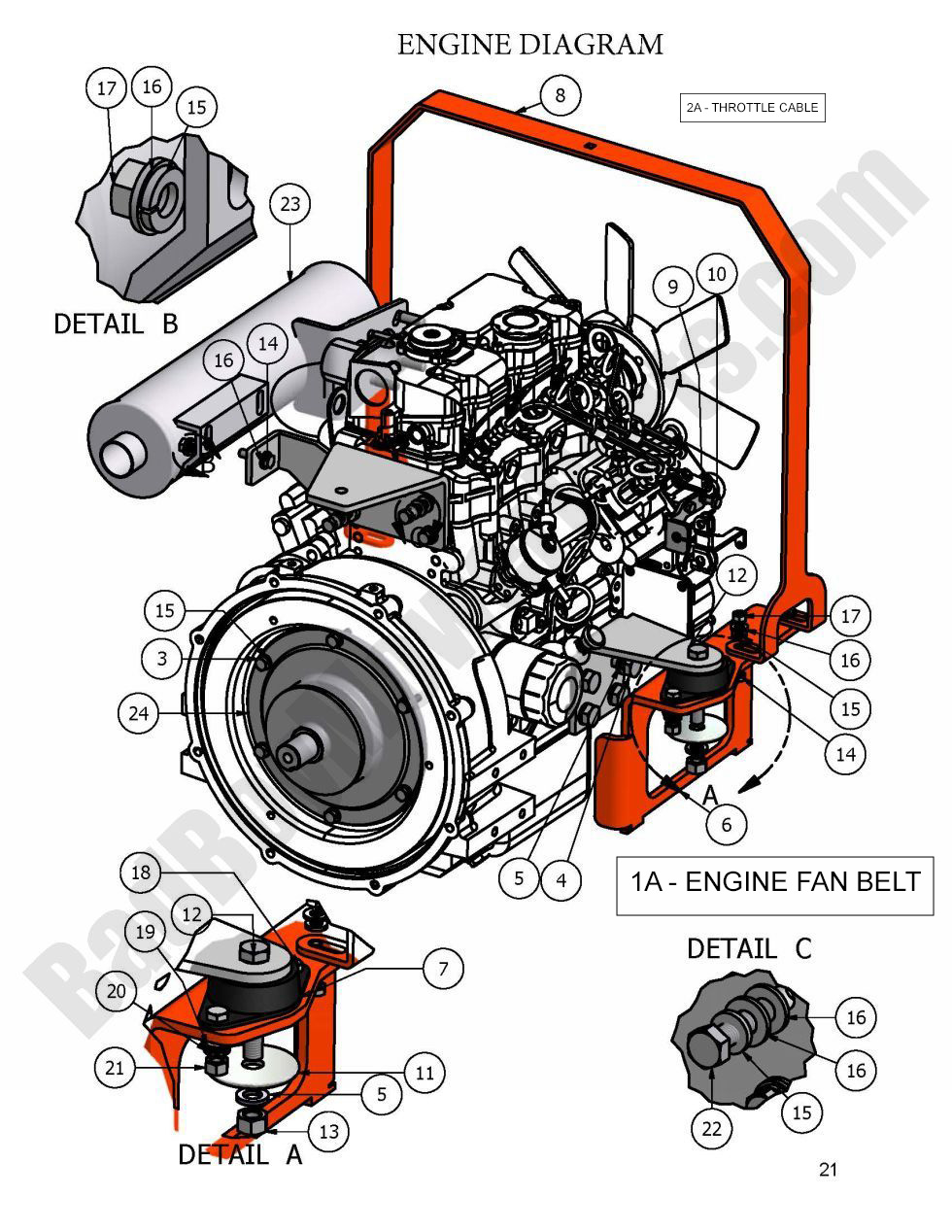

2007 Diesel - Engine
  Position Number SKU Product Title Price
1A 041-0010-00 041-0010-00 - Caterpillar/Perkins Fan Belt
$85.17
2A 055-8018-00 055-8018-00 - Throttle Cable (See Models Used On For Details)
$60.92
3 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
4 018-6022-00 018-6022-00 - 12mm Bolt - Diesel
$2.99
5 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
6 070-5520-00 070-5520-00 - 2007-2020 Diesel 4cyl Frame Suspension
$2099.99
7 032-2000-00 032-2000-00 - Toplink Bushing (See Models Used On For Detail)
$4.37
8 201-8001-00 201-8001-00 - Hood Holder Diesel
$42.79
9 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
10 018-2000-00 018-2000-00 - M6x1.0x20MM 8.8 Hex Bolts Zinc
$2.99
11 032-4051-00 032-4051-00 - Snubbing Washer for Rubber Compression Mount
$17.02
12 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
13 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
15 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
16 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
17 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
18 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
19 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
20 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
21 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
22 018-2001-00 018-2001-00 - M8 X 1.25 X 25MM Class 10.9 He x Bolts Zinc
$2.99
23 015-0005-00 015-0005-00 - Exhaust-28/35hp Caterpillar USE 015-0010-00 (obsolete)
use part #015-0010-00
$225.56
24 017-3000-00 017-3000-00 - Stub shaft- Diesel
$229.90
