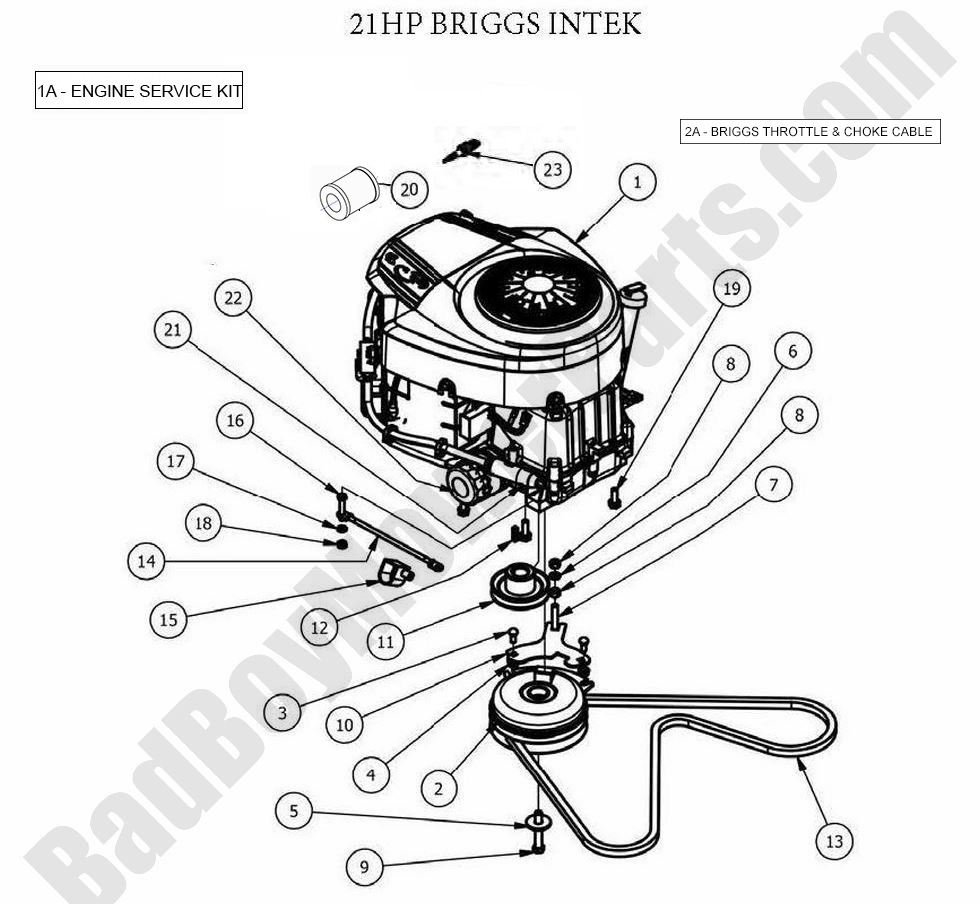

2013 MZ - Engine - Briggs 21HP

2013 MZ - Engine - Briggs 21HP

For the 2013 MZ Engine - Briggs 21HP, BadBoyMowerParts.com has all the components you need for maintenance or repairs. Whether you're replacing the carburetor, spark plugs, or air filter, we offer a variety of Bad Boy Mower Parts designed to fit this specific engine. Our Bad Boy Mower Part diagrams provide detailed information to ensure you get the right part for the 2013 MZ engine. We specialize in Bad Boy Lawn Mower Parts that are built to last, ensuring reliable performance from your engine. With Bad Boy Parts Online, ordering is quick and easy. Plus, enjoy Free Shipping On Orders Over $100 when you purchase your parts from us. Keep your 2013 MZ Engine - Briggs 21HP running like new by shopping for all your mower parts at BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2013 MZ - Engine - Briggs 21HP
  Position Number SKU Product Title Price
1A 063-2000-08 063-2000-08 - MZ Briggs Intek 21HP Engine Service Kit
$94.79
1 015-0021-00 015-0021-00 - 540cc Briggs Intek Engine-MZ
$1799.99
2A 055-3021-00 055-3021-00 - 25" Throttle Cable for Briggs Smart Choke Engines
$48.14
2 070-3000-00 070-3000-00 - 2010-2014 MZ/ Magnum UNITS ONLY Ogura PTO Clutch - 100 ft/lbs
$279.99
3 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
4 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
5 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
6 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
7 018-1010-00 018-1010-00 - 3/8-16 x 3-1/2 Hex Bolt
$2.99
8 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
9 018-5401-00 018-5401-00 - 7/16 x 2 3/4 Fine Thread Bolt
$2.99
10 057-5920-00 057-5920-00 - 2010-2014 MZ Clutch Holder
$21.28
11 033-2010-00 033-2010-00 - 3 3/4 Motor Pulley (See Models Used On For Details)
$31.22
12 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
13 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
14 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
15 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
16 018-8059-00 018-8059-00 - 5/16-18x1-3/4 Hex Bolt
$2.99
17 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
18 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
19 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
20 063-4026-00 063-4026-00 - 21hp Briggs Air Filer and Pre-cleaner - MZ
$39.04
21 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
22 063-8018-00 063-8018-00 - Oil Filter
$21.39
23 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
