2011 MZ - Engine - Kawasaki 22HP

2011 MZ - Engine - Kawasaki 22HP

The 2011 MZ Engine - Kawasaki 22HP is a powerful engine that demands the best care and parts for optimal performance. BadBoyMowerParts.com is here to provide all the parts you need for maintenance or repairs. Our detailed Bad Boy Mower Part diagrams guide you through the selection of essential parts, whether you're replacing a carburetor, air filter, or other engine components. We offer a comprehensive inventory of Bad Boy Lawn Mower Parts, ensuring you get the right parts for your Kawasaki 22HP engine. Shopping for Bad Boy Parts Online has never been easier, and with Free Shipping On Orders Over $100, you can save even more on your purchase. Count on us for reliable, high-quality parts that will keep your engine running smoothly for years. Order now from BadBoyMowerParts.com and get your engine back to work quickly and efficiently.

Bad Boy Mower Parts Lookup

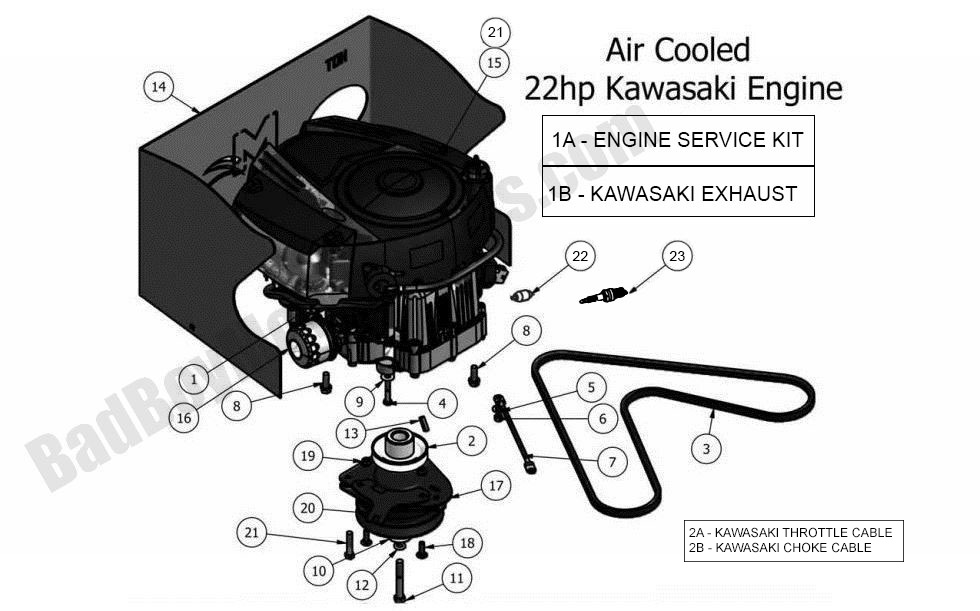

2011 MZ - Engine - Kawasaki 22HP
  Position Number SKU Product Title Price
1A 063-2000-01 063-2000-01 - Kawasaki FR & FS Service Kit
$88.25
1B 015-0038-00 015-0038-00 - Exhaust for FR Kawasaki - MZ
$92.01
1C 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
1 015-0022-00 015-0022-00 - FR651V-S00-S Kawasaki Engine
$2389.06
2A 055-3000-00 055-3000-00 - 47" Throttle Cable for 2017 & Older MZ (Not Used On Briggs Smart Choke Models)
$26.74
2B 054-8016-00 054-8016-00 - 47" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2 033-2010-00 033-2010-00 - 3 3/4 Motor Pulley (See Models Used On For Details)
$31.22
3 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
4 018-1010-00 018-1010-00 - 3/8-16 x 3-1/2 Hex Bolt
$2.99
5 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
6 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
7 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
8 018-5051-00 018-5051-00 - OBSOLETE use 018-1075-00 3/8x1 1/8 HWH Engine Bolt (obsolete)
use part #018-1075-00
$2.99
9 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
10 019-6019-00 019-6019-00 - Cupped Washer
$9.23
11 018-0006-00 018-0006-00 - 7/16-20 X 3 HEX BOLTS ZIN (obsolete)
use part #018-0007-00
$2.99
12 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
13 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
14 026-0110-00 026-0110-00 - MZ Rear Plate (27BS/26KA/22KA)
$88.99
15 063-2097-00 063-2097-00 - 22-26 Kaw Air Filter FR Engine
$25.67
16 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
17 070-3000-00 070-3000-00 - 2010-2014 MZ/ Magnum UNITS ONLY Ogura PTO Clutch - 100 ft/lbs
$279.99
18 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
19 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
20 057-5920-00 057-5920-00 - 2010-2014 MZ Clutch Holder
$21.28
21 063-2098-00 063-2098-00 - Kawasaki Pre Cleaner for 063-2097-00 Filter
$8.24
22 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
23 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
