2011 ZT - Engine - Briggs 27HP

2011 ZT - Engine - Briggs 27HP

The 2011 ZT Engine – Briggs 27HP delivers outstanding performance, making it a reliable power source for your mower. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts to ensure your Briggs engine runs efficiently season after season. Whether you need fuel filters, carburetor kits, ignition components, or full engine replacements, our Bad Boy Mower Part diagrams help you find exactly what you need. Maintaining your Briggs 27HP engine with genuine Bad Boy Lawn Mower Parts prevents breakdowns and enhances longevity. With our wide selection of Bad Boy Parts Online, ordering replacement parts has never been easier. Proper engine maintenance, such as regular oil changes and air filter replacements, is essential to keep your mower performing at its best. Plus, with Free Shipping On Orders Over $100, you can get everything you need at an unbeatable value. Shop with BadBoyMowerParts.com today for all your Briggs engine maintenance needs.

Bad Boy Mower Parts Lookup

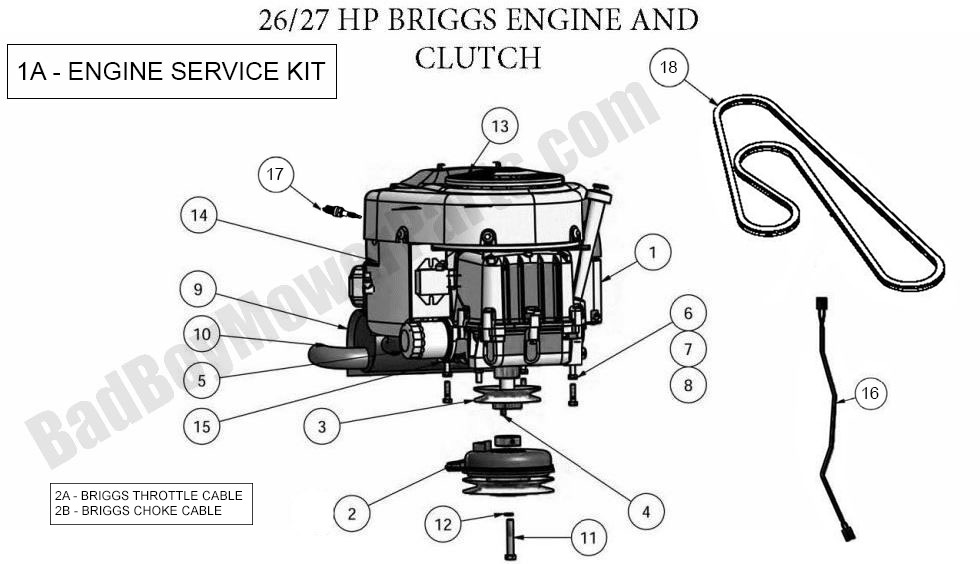

2011 ZT - Engine - Briggs 27HP
  Position Number SKU Product Title Price
1A 063-2000-00 063-2000-00 - ZT/MZ Service Package for a 26/27 Briggs Engine
$88.97
1B 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
1 015-3051-00 015-3051-00 - 27hp Briggs Engine Pro Series ZT (See Models Used On For Details)
$1899.00
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
3 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
4 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
5 063-8018-00 063-8018-00 - Oil Filter
$21.39
6 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
7 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
9 015-0027-00 015-0027-00 - Exhaust
$204.99
10 015-5400-00 015-5400-00 - Exhaust Extension
$21.28
11 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
12 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
13 063-4000-00 063-4000-00 - Air Filter w/Precleaner 26/27 Briggs Engines
$32.58
14 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
15 015-5401-00 015-5401-00 - Kohler/Briggs Oil Drain Valve
$35.48
16 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
17 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
18 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
