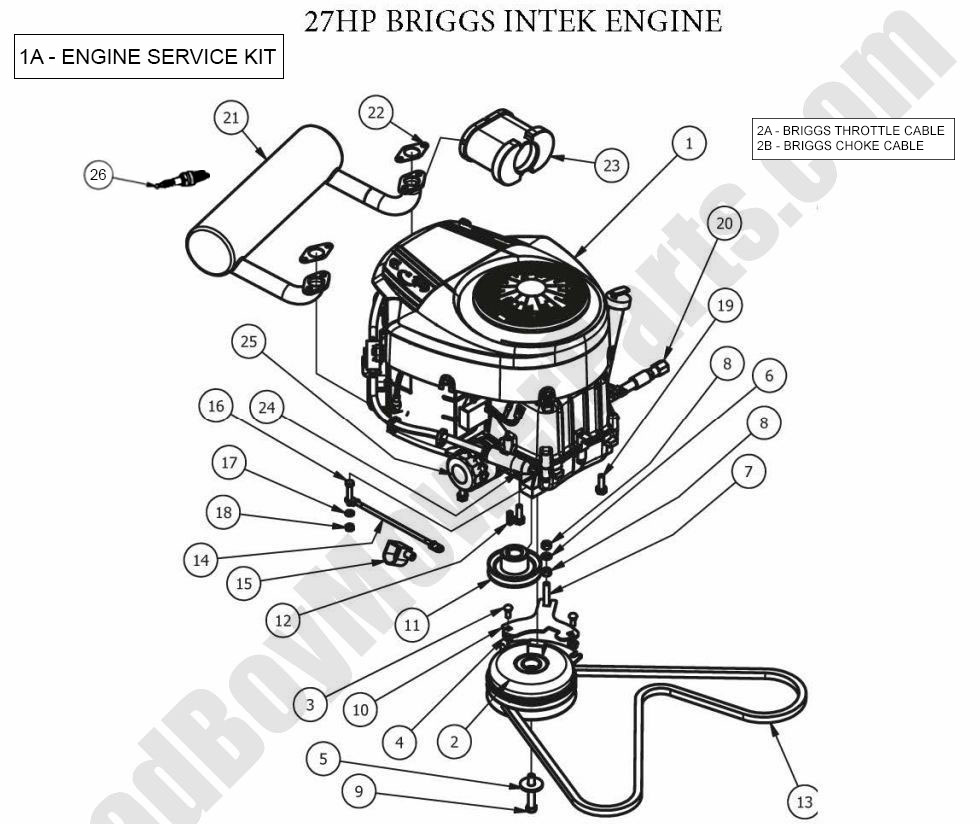

2012 MZ - Engine - Briggs 27 HP

2012 MZ - Engine - Briggs 27 HP

The 2012 MZ Engine - Briggs 27HP provides the power and performance necessary for tough mowing jobs, and keeping it in top shape is essential. BadBoyMowerParts.com offers a full selection of Bad Boy Mower Parts specifically designed for the 27HP Briggs engine, including air filters, belts, and spark plugs. With our clear Bad Boy Mower Part diagrams, you can quickly locate the engine parts you need for your 2012 MZ mower. Our online store makes it simple to order high-quality Bad Boy Lawn Mower Parts, and we ensure that you receive only the best products for your engine’s maintenance and repair. Bad Boy Parts Online allows you to shop conveniently from home, and our easy-to-navigate website helps you find the perfect parts without hassle. Plus, enjoy Free Shipping On Orders Over $100, so you can get your parts delivered without worrying about extra costs, keeping your 2012 MZ mower running like new.

Bad Boy Mower Parts Lookup

2012 MZ - Engine - Briggs 27 HP
  Position Number SKU Product Title Price
1A 063-2000-00 063-2000-00 - ZT/MZ Service Package for a 26/27 Briggs Engine
$88.97
1 015-3050-00 015-3050-00 - 27hp Briggs Engine Pro Series MZ OBSOLETE use 015-2014-00 (obsolete)
use part #015-2014-00
$1898.99
2A 055-3000-00 055-3000-00 - 47" Throttle Cable for 2017 & Older MZ (Not Used On Briggs Smart Choke Models)
$26.74
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 070-3000-00 070-3000-00 - 2010-2014 MZ/ Magnum UNITS ONLY Ogura PTO Clutch - 100 ft/lbs
$279.99
3 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
4 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
5 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
6 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
7 018-1010-00 018-1010-00 - 3/8-16 x 3-1/2 Hex Bolt
$2.99
8 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
9 018-5401-00 018-5401-00 - 7/16 x 2 3/4 Fine Thread Bolt
$2.99
10 057-5920-00 057-5920-00 - 2010-2014 MZ Clutch Holder
$21.28
11 033-2010-00 033-2010-00 - 3 3/4 Motor Pulley (See Models Used On For Details)
$31.22
12 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
13 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
14 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
15 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
16 018-8059-00 018-8059-00 - 5/16-18x1-3/4 Hex Bolt
$2.99
17 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
18 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
19 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
20 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
21 015-0002-00 015-0002-00 - MZ Exhaust - 26/27hp Briggs
$203.99
22 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
23 063-4000-00 063-4000-00 - Air Filter w/Precleaner 26/27 Briggs Engines
$32.58
24 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
25 063-8018-00 063-8018-00 - Oil Filter
$21.39
26 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
