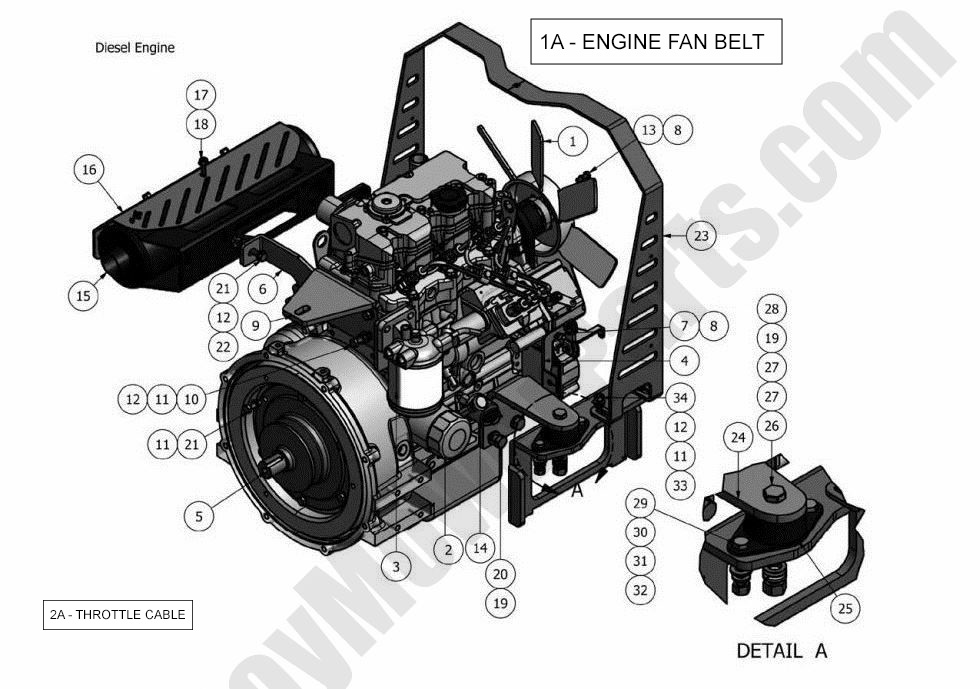

2011 Diesels - Engine (28Hp)

2011 Diesels - Engine (28Hp)

If you need replacement parts for your 2011 Diesels 28HP engine, BadBoyMowerParts.com offers a range of high-quality options. From air filters to engine components, we have everything you need for proper maintenance. With our Bad Boy Mower Part diagrams, you can easily find the right engine parts for your specific model. We only offer Bad Boy Lawn Mower Parts that meet high standards for performance and durability, so your engine will continue running smoothly. When you shop with Bad Boy Parts Online, you can rest assured that you're receiving genuine replacement parts for your 2011 Diesels 28HP engine. Plus, enjoy the convenience of Free Shipping On Orders Over $100. Get the parts you need quickly and efficiently to keep your mower operating at peak efficiency. Visit us today for all your 2011 Diesels engine and other essential parts.

Bad Boy Mower Parts Lookup

2011 Diesels - Engine (28Hp)
  Position Number SKU Product Title Price
1A 041-0010-00 041-0010-00 - Caterpillar/Perkins Fan Belt
$85.17
1 015-6050-00 015-6050-00 - Diesel Engine Fan (See Models Used On For Details)
$202.89
2A 055-8018-00 055-8018-00 - Throttle Cable (See Models Used On For Details)
$60.92
2 063-2010-00 063-2010-00 - Caterpillar Oil Filter
$34.23
3 063-2011-00 063-2011-00 - CAT Fuel Filter - Big
$29.95
4 039-1010-00 039-1010-00 - Diesel Throttle Bracket 4 Tier
$5.49
5 017-3000-00 017-3000-00 - Stub shaft- Diesel
$229.90
7 018-2002-00 018-2002-00 - M6 X.50 X 20MM Class 8.8 Hex Bolts Zinc
$2.99
8 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
10 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
11 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
12 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
13 018-2000-00 018-2000-00 - M6x1.0x20MM 8.8 Hex Bolts Zinc
$2.99
14 086-5001-00 086-5001-00 - 2007-2011 Diesel Oil Pressure Gauge w/Sender
$169.99
15 015-0005-00 015-0005-00 - Exhaust-28/35hp Caterpillar USE 015-0010-00 (obsolete)
use part #015-0010-00
$225.56
16 043-1010-00 043-1010-00 - 2010-2017 Diesel Muffler Cover (See Models Used On For Details)
$22.71
17 030-8000-00 030-8000-00 - 1/4x3/4 Set Screw-Diesel Exhaust
$2.99
18 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
19 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
20 018-6022-00 018-6022-00 - 12mm Bolt - Diesel
$2.99
21 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
22 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
23 201-8001-00 201-8001-00 - Hood Holder Diesel
$42.79
24 201-8008-00 201-8008-00 - Diesel Motor Side Support Right (See Models Used On For Details)
$31.22
25 032-4050-00 032-4050-00 - Rubber Compression Mount Side Motor Mount-Diesel
$76.53
26 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
27 019-5010-00 019-5010-00 -.565x1.25x.095 Washer Brass
$2.99
28 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
29 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
30 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
31 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
32 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
34 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
