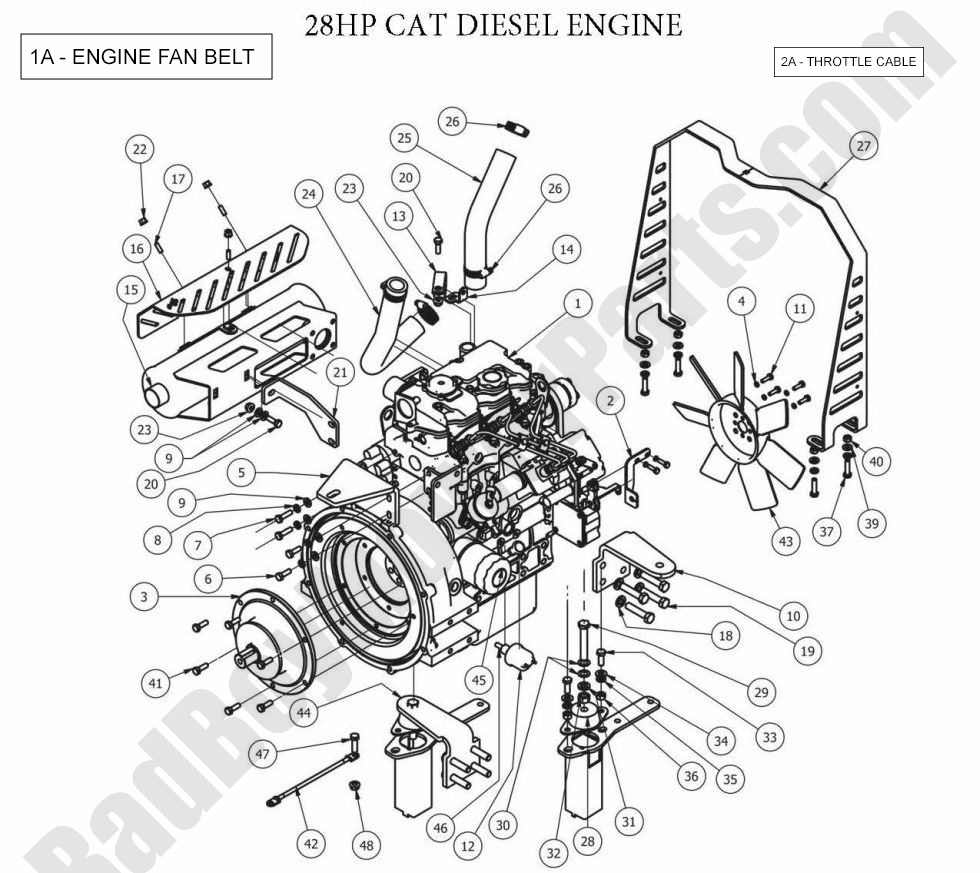

2013 Diesels - Engine (28Hp)

2013 Diesels - Engine (28Hp)

The 2013 Diesels Engine (28Hp) provides robust power for your mower, and keeping it in prime condition is crucial for maintaining optimal performance. At BadBoyMowerParts.com, we offer a wide variety of Bad Boy Mower Parts for the 2013 Diesels Engine (28Hp). Our Bad Boy Mower Part diagrams make it easy to find the exact parts you need, whether you're working on the fuel system, cooling components, or other engine parts. We stock only high-quality Bad Boy Lawn Mower Parts designed to fit your engine’s specifications. By ordering Bad Boy Parts Online, you can quickly access everything necessary to keep your mower's engine running smoothly. Plus, with Free Shipping On Orders Over $100, it’s easier than ever to maintain your mower without extra costs. Visit our website today for all the engine parts you need for your 2013 Diesels mower.

Bad Boy Mower Parts Lookup

2013 Diesels - Engine (28Hp)
  Position Number SKU Product Title Price
1A 041-0010-00 041-0010-00 - Caterpillar/Perkins Fan Belt
$85.17
2A 055-8018-00 055-8018-00 - Throttle Cable (See Models Used On For Details)
$60.92
2 039-1010-00 039-1010-00 - Diesel Throttle Bracket 4 Tier
$5.49
3 017-3000-00 017-3000-00 - Stub shaft- Diesel
$229.90
4 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
6 018-2001-00 018-2001-00 - M8 X 1.25 X 25MM Class 10.9 He x Bolts Zinc
$2.99
7 018-5320-00 018-5320-00 - M8 x 1.25 x 30MM Hex Head Bolt
$2.99
8 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
9 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
10 201-8008-00 201-8008-00 - Diesel Motor Side Support Right (See Models Used On For Details)
$31.22
11 018-2000-00 018-2000-00 - M6x1.0x20MM 8.8 Hex Bolts Zinc
$2.99
12 086-7004-00 086-7004-00 - Oil Pressure Sender- For 2012 and Newer Units
$119.99
13 072-8090-00 072-8090-00 - Diesel Clamp - 1 3/4 Vinyl
$3.63
14 039-1015-00 039-1015-00 - Radiator Hose Clamp Bracket
$2.99
15 015-0010-00 015-0010-00 - 28/35hp Caterpillar Engine Muffler
$225.56
16 043-1010-00 043-1010-00 - 2010-2017 Diesel Muffler Cover (See Models Used On For Details)
$22.71
17 030-8000-00 030-8000-00 - 1/4x3/4 Set Screw-Diesel Exhaust
$2.99
18 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
19 018-6022-00 018-6022-00 - 12mm Bolt - Diesel
$2.99
20 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
21 203-8000-00 203-8000-00 - Muffler Brace Diesel
$19.25
22 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
23 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
24 051-3001-00 051-3001-00 - Diesel Radiator Hose - Bottom
$28.09
25 051-3000-00 051-3000-00 - 2010-2020 Top Radiator Hose - Diesel
$22.03
26 072-2003-00 072-2003-00 - 1 1/8" Hose Clamp
$5.82
27 201-8001-00 201-8001-00 - Hood Holder Diesel
$42.79
28 032-4050-00 032-4050-00 - Rubber Compression Mount Side Motor Mount-Diesel
$76.53
29 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99
30 019-5010-00 019-5010-00 -.565x1.25x.095 Washer Brass
$2.99
32 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
33 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
34 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
35 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
36 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
40 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
41 018-0016-00 018-0016-00 - 5/16-18 x 1 Button Head Torx Drive Bolt
$2.99
42 086-0004-00 086-0004-00 - Starter to Chassis Cable - Diesel Models
$7.69
43 015-6050-00 015-6050-00 - Diesel Engine Fan (See Models Used On For Details)
$202.89
44 201-8009-00 201-8009-00 - Diesel Side Motor Mount Left (See Models Used On For Details)
$31.22
45 063-2010-00 063-2010-00 - Caterpillar Oil Filter
$34.23
46 019-2050-00 019-2050-00 - Brass Washer for Weld-on Hinge
$2.99
47 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
48 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
