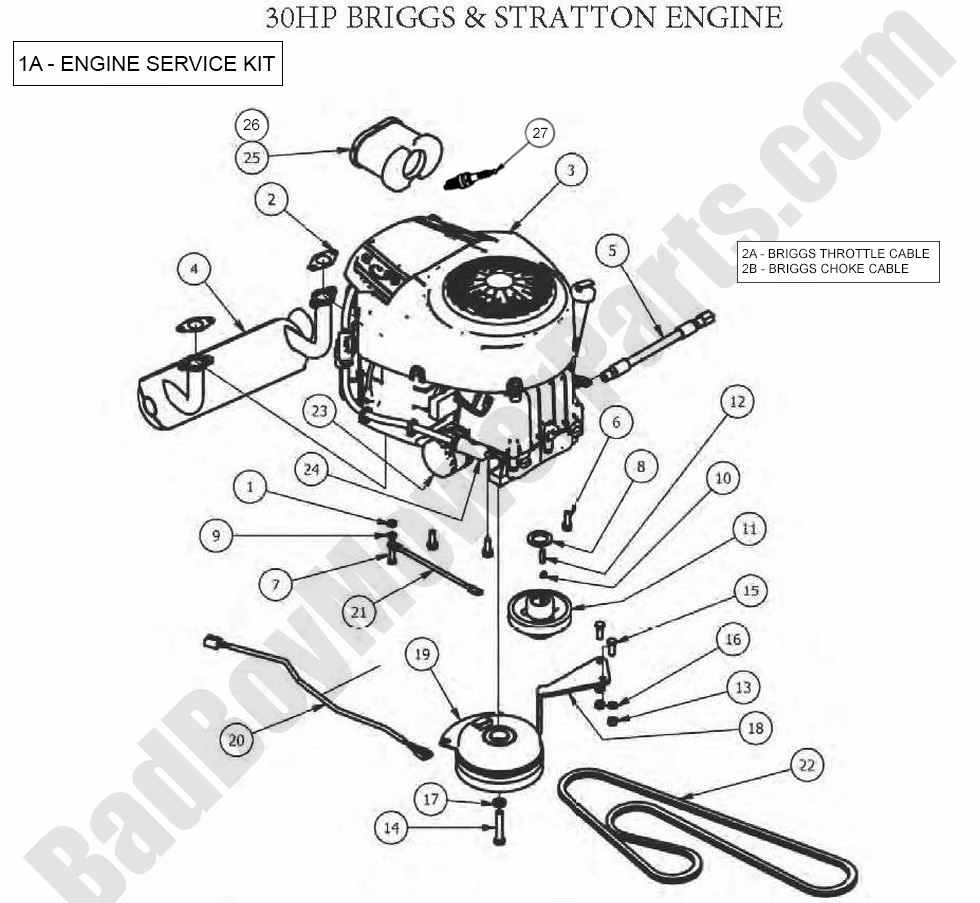

2012 Outlaw & Outlaw Extreme - Engine - Briggs 30HP

2012 Outlaw & Outlaw Extreme - Engine - Briggs 30HP

The 2012 Outlaw & Outlaw Extreme model featuring the Briggs 30HP engine delivers powerful performance for all your mowing tasks. To keep this engine running smoothly, BadBoyMowerParts.com offers a wide selection of Bad Boy Mower Parts designed specifically for the Briggs 30HP engine. Whether you need spark plugs, filters, or a new carburetor, we carry high-quality components that ensure your engine continues to run at its best. Our detailed Bad Boy Mower Part diagrams allow you to easily find the correct parts for your engine. We offer only the best Bad Boy Lawn Mower Parts, so you can be confident in the durability and reliability of each component. Ordering Bad Boy Parts Online is quick and easy, and our fast shipping ensures you get your parts when you need them. Don’t forget to take advantage of our Free Shipping On Orders Over $100 to save on delivery costs when ordering from BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2012 Outlaw & Outlaw Extreme - Engine - Briggs 30HP
  Position Number SKU Product Title Price
1A 063-2000-04 063-2000-04 - Briggs 30hp & CXI Engine Service Kit
$92.93
1 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
2A 055-8021-00 055-8021-00 - 52" Throttle Cable (See Models Used On - Engine Diagrams For More Details)
$45.29
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
4 015-3031-00 015-3031-00 - Exhaust for 30hp Briggs Engine 2011-2015
$223.99
5 015-5401-00 015-5401-00 - Kohler/Briggs Oil Drain Valve
$35.48
6 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
7 018-8059-00 018-8059-00 - 5/16-18x1-3/4 Hex Bolt
$2.99
8 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
9 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
10 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
11 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
12 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
13 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
14 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
15 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
16 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
17 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
18 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch (See Models Used On For Details)
$20.67
19 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
20 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
21 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
22 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
23 063-8018-00 063-8018-00 - Oil Filter
$21.39
24 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
25.0 063-3003-00 063-3003-00 - 30hp & CXI Briggs Air Filter
$44.93
26 063-1000-00 063-1000-00 - Pre-Cleaner for 063-3003-00
$12.83
27 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
