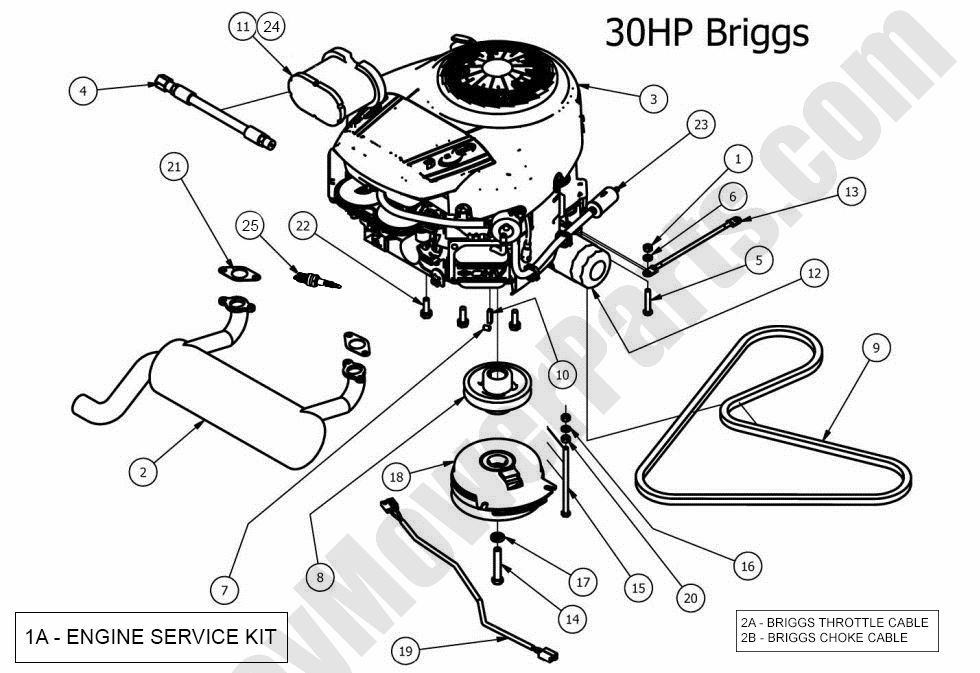

2012 Stand-On - Engine - Briggs 30HP

2012 Stand-On - Engine - Briggs 30HP

The Briggs 30HP Engine on your 2012 Stand-On mower provides the necessary power to tackle even the toughest lawns. If you need to repair or replace engine components, BadBoyMowerParts.com offers an extensive range of Bad Boy Mower Parts that are compatible with this engine. Whether it’s the carburetor, air filter, or ignition system, we carry the parts you need to keep your engine running smoothly. Our detailed Bad Boy Mower Part diagrams make it easy to find the specific components for your 2012 Stand-On with the Briggs 30HP Engine. With our high-quality Bad Boy Lawn Mower Parts, you can rest assured that your engine will perform at its peak. Shopping Bad Boy Parts Online is fast and convenient, and our efficient service ensures timely delivery of the parts you need. Plus, enjoy Free Shipping On Orders Over $100, so you can save while keeping your mower in top condition. Visit BadBoyMowerParts.com today.

Bad Boy Mower Parts Lookup

2012 Stand-On - Engine - Briggs 30HP
  Position Number SKU Product Title Price
1A 063-2000-04 063-2000-04 - Briggs 30hp & CXI Engine Service Kit
$92.93
1 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
2A 055-8021-00 055-8021-00 - 52" Throttle Cable (See Models Used On - Engine Diagrams For More Details)
$45.29
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 015-0009-00 015-0009-00 - Exhaust-Stand On-30hp Briggs
$153.99
4 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
5 018-8059-00 018-8059-00 - 5/16-18x1-3/4 Hex Bolt
$2.99
6 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
7 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
8 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
9 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
10 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
11.0 063-3003-00 063-3003-00 - 30hp & CXI Briggs Air Filter
$44.93
12 063-8018-00 063-8018-00 - Oil Filter
$21.39
13 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
14 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
15 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
17 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
18 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
19 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
21 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
22 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
23 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
24 063-1000-00 063-1000-00 - Pre-Cleaner for 063-3003-00
$12.83
25 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
