2013 Diesels - Engine (35Hp)

2013 Diesels - Engine (35Hp)

The 2013 Diesels Engine (35Hp) is designed to deliver impressive power and performance for your mower. To keep your engine running smoothly, it's essential to use the right parts. At BadBoyMowerParts.com, we offer a vast selection of Bad Boy Mower Parts specifically for the 2013 Diesels Engine (35Hp). Whether you need to replace the fuel system, oil filters, or ignition components, our Bad Boy Mower Part diagrams help you identify the right parts with ease. Our Bad Boy Lawn Mower Parts are high-quality, ensuring reliability and long-lasting performance. You can quickly shop for Bad Boy Parts Online and rest assured that all parts are genuine. To make your purchase even better, we offer Free Shipping On Orders Over $100, so you can get your engine parts delivered right to your door. Shop with us today for everything you need to maintain your 2013 Diesels engine.

Bad Boy Mower Parts Lookup

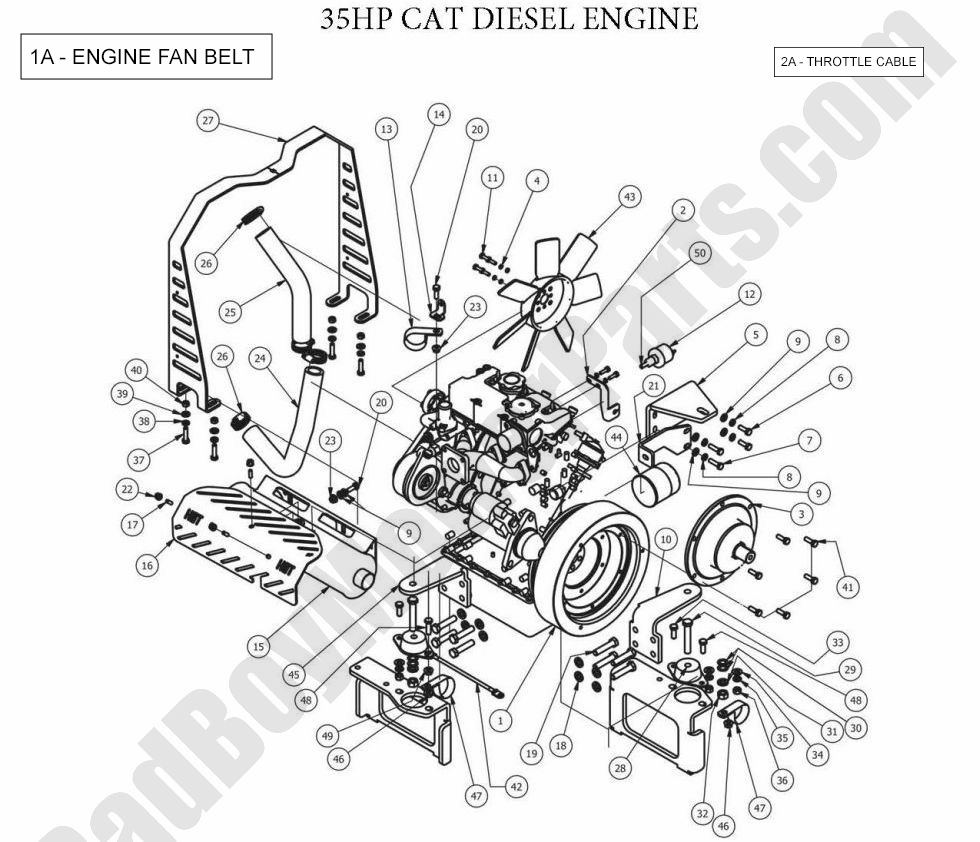

2013 Diesels - Engine (35Hp)
  Position Number SKU Product Title Price
1A 041-0010-00 041-0010-00 - Caterpillar/Perkins Fan Belt
$85.17
1B 055-8018-00 055-8018-00 - Throttle Cable (See Models Used On For Details)
$60.92

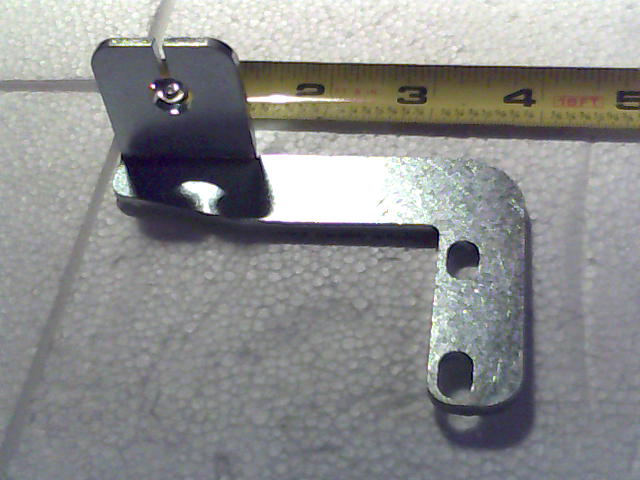

2 039-1010-00 039-1010-00 - Diesel Throttle Bracket 4 Tier
$5.49

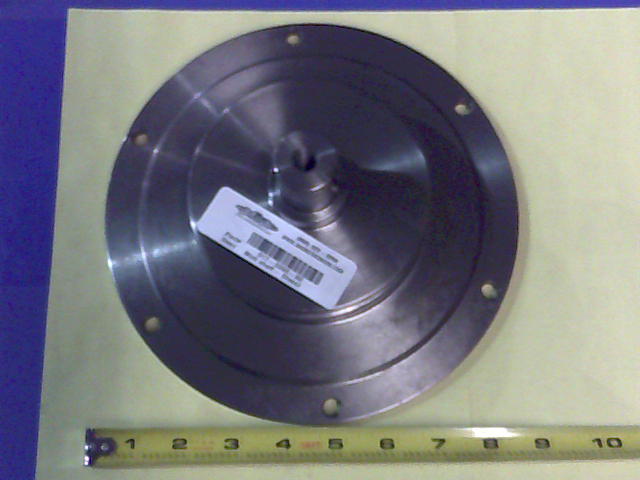

3 017-3000-00 017-3000-00 - Stub shaft- Diesel
$229.90
4 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99

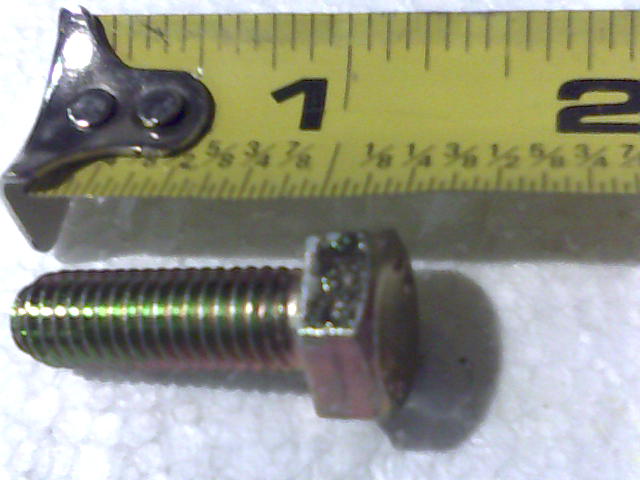

6 018-2001-00 018-2001-00 - M8 X 1.25 X 25MM Class 10.9 He x Bolts Zinc
$2.99

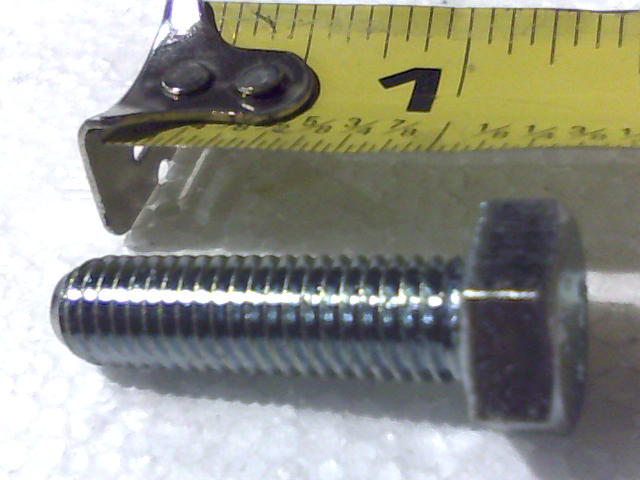

7 018-5320-00 018-5320-00 - M8 x 1.25 x 30MM Hex Head Bolt
$2.99
8 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
9 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
10 201-8008-00 201-8008-00 - Diesel Motor Side Support Right (See Models Used On For Details)
$31.22

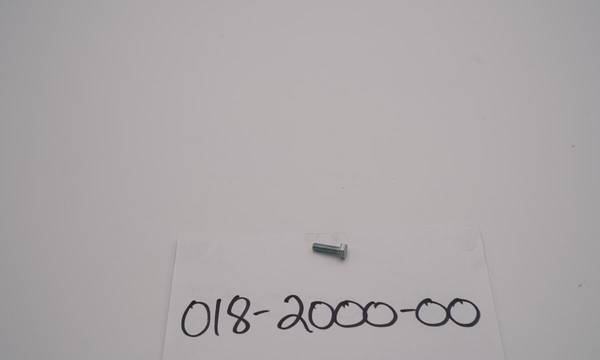

11 018-2000-00 018-2000-00 - M6x1.0x20MM 8.8 Hex Bolts Zinc
$2.99

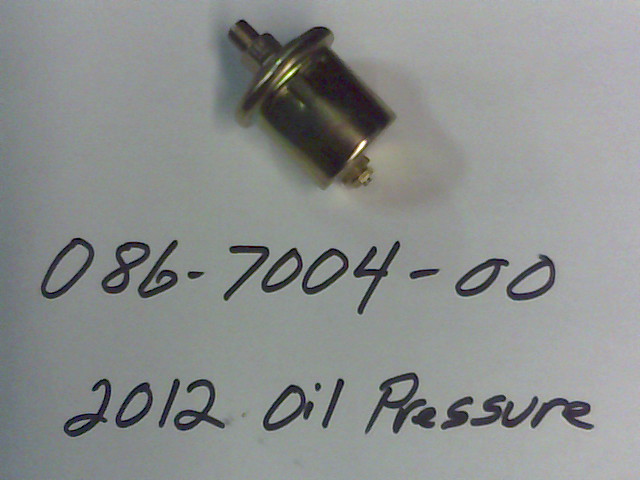

12 086-7004-00 086-7004-00 - Oil Pressure Sender- For 2012 and Newer Units
$119.99
13 072-8090-00 072-8090-00 - Diesel Clamp - 1 3/4 Vinyl
$3.63
14 039-1015-00 039-1015-00 - Radiator Hose Clamp Bracket
$2.99
15 015-0010-00 015-0010-00 - 28/35hp Caterpillar Engine Muffler
$225.56

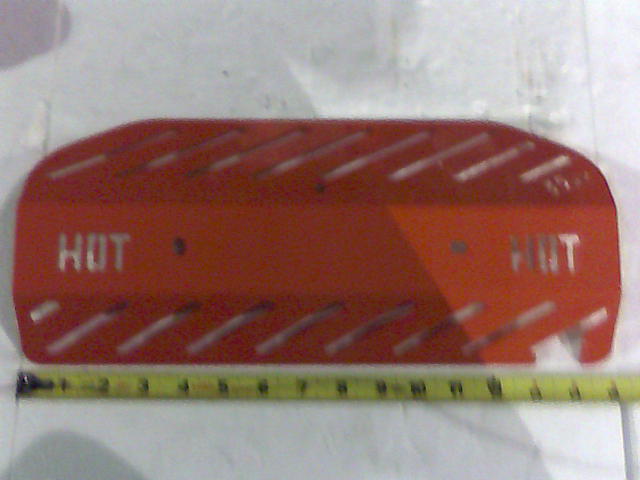

16 043-1000-00 043-1000-00 - 2010-2017 Diesel Muffler Guard (35hp)
$22.71

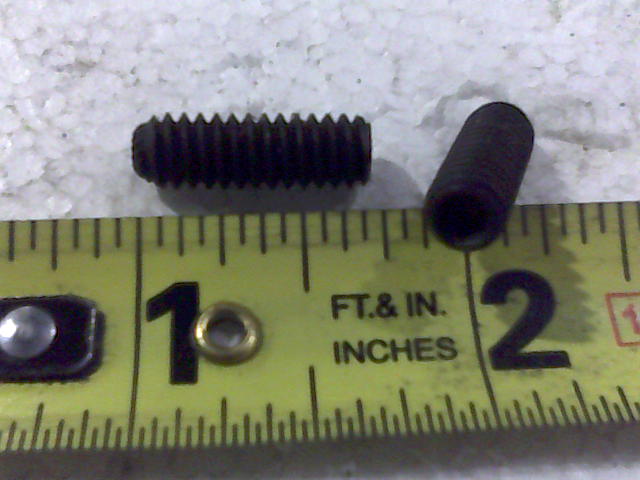

17 030-8000-00 030-8000-00 - 1/4x3/4 Set Screw-Diesel Exhaust
$2.99
18 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99

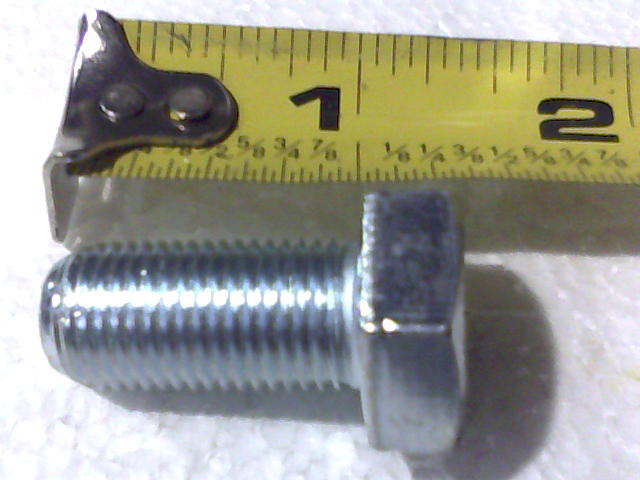

19 018-6022-00 018-6022-00 - 12mm Bolt - Diesel
$2.99
20 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99

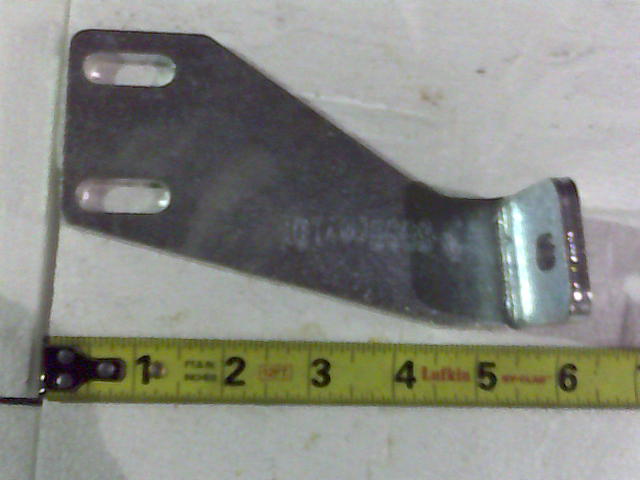

21 203-8000-00 203-8000-00 - Muffler Brace Diesel
$19.25
22 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
23 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
24 051-3001-00 051-3001-00 - Diesel Radiator Hose - Bottom
$28.09
25 051-3000-00 051-3000-00 - 2010-2020 Top Radiator Hose - Diesel
$22.03
26 072-2003-00 072-2003-00 - 1 1/8" Hose Clamp
$5.82

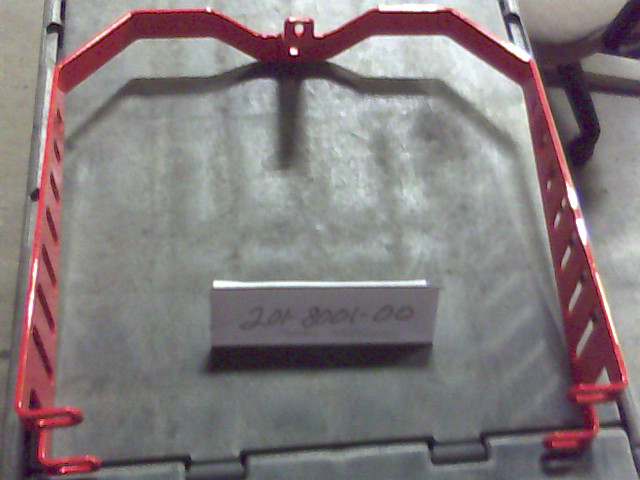

27 201-8001-00 201-8001-00 - Hood Holder Diesel
$42.79
28 032-4050-00 032-4050-00 - Rubber Compression Mount Side Motor Mount-Diesel
$76.53
29 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99

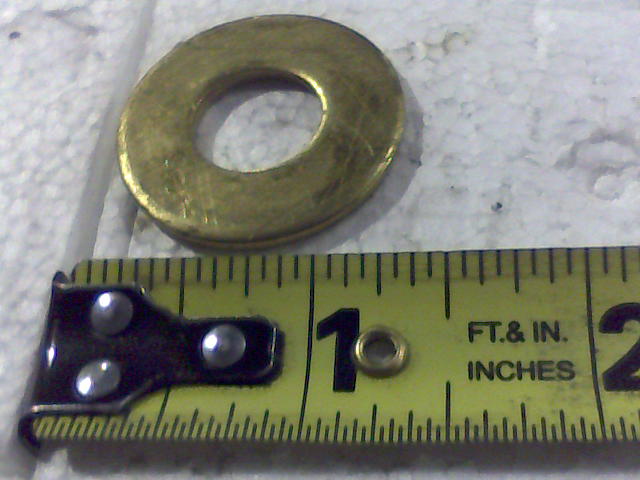

30 019-5010-00 019-5010-00 -.565x1.25x.095 Washer Brass
$2.99
32 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
33 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
34 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
35 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
36 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
40 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
41 018-0016-00 018-0016-00 - 5/16-18 x 1 Button Head Torx Drive Bolt
$2.99
42 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21

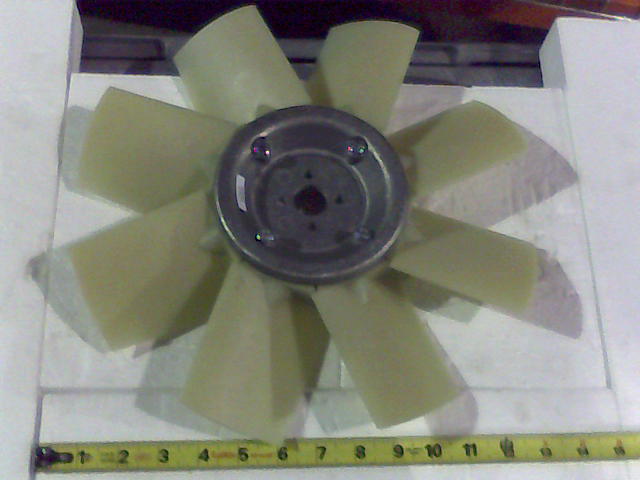

43 015-6050-00 015-6050-00 - Diesel Engine Fan (See Models Used On For Details)
$202.89
44 063-2010-00 063-2010-00 - Caterpillar Oil Filter
$34.23
45 201-8009-00 201-8009-00 - Diesel Side Motor Mount Left (See Models Used On For Details)
$31.22
46 013-9003-00 013-9003-00 - 3/8 Nylock Jam Nut 1/2 Nut
$2.99
48 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
49 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99

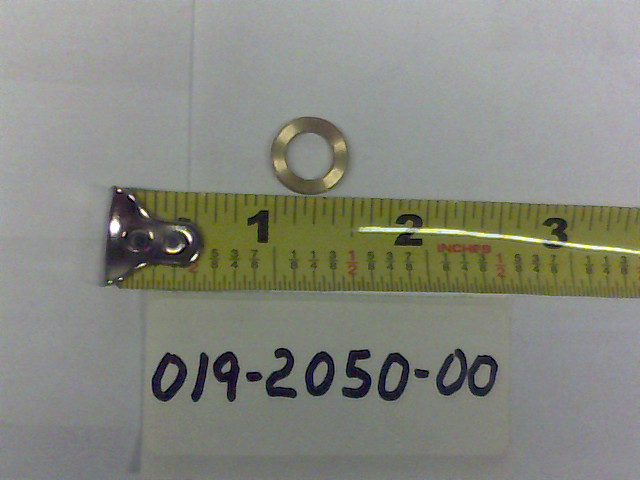

50 019-2050-00 019-2050-00 - Brass Washer for Weld-on Hinge
$2.99
