2012 Outlaw & Outlaw Extreme - Engine - Vanguard 36HP

2012 Outlaw & Outlaw Extreme - Engine - Vanguard 36HP

For those with the Vanguard 36HP engine in their 2012 Outlaw & Outlaw Extreme mower, it’s essential to keep the engine in top shape to maintain peak performance. BadBoyMowerParts.com offers a wide selection of Bad Boy Mower Parts specifically designed for the Vanguard engine. Whether you need fuel filters, spark plugs, or air filters, we have the quality Bad Boy Lawn Mower Parts to keep your engine running smoothly. Our Bad Boy Mower Part diagrams provide a detailed guide, helping you find the exact parts you need for a seamless repair process. We provide only the best replacement parts, so you can be confident in the reliability and longevity of your engine. Bad Boy Parts Online offers easy ordering and fast processing, so you’ll receive your parts quickly. With Free Shipping On Orders Over $100, you can save on delivery costs while ensuring your 2012 Outlaw & Outlaw Extreme mower operates at its best for years to come.

Bad Boy Mower Parts Lookup

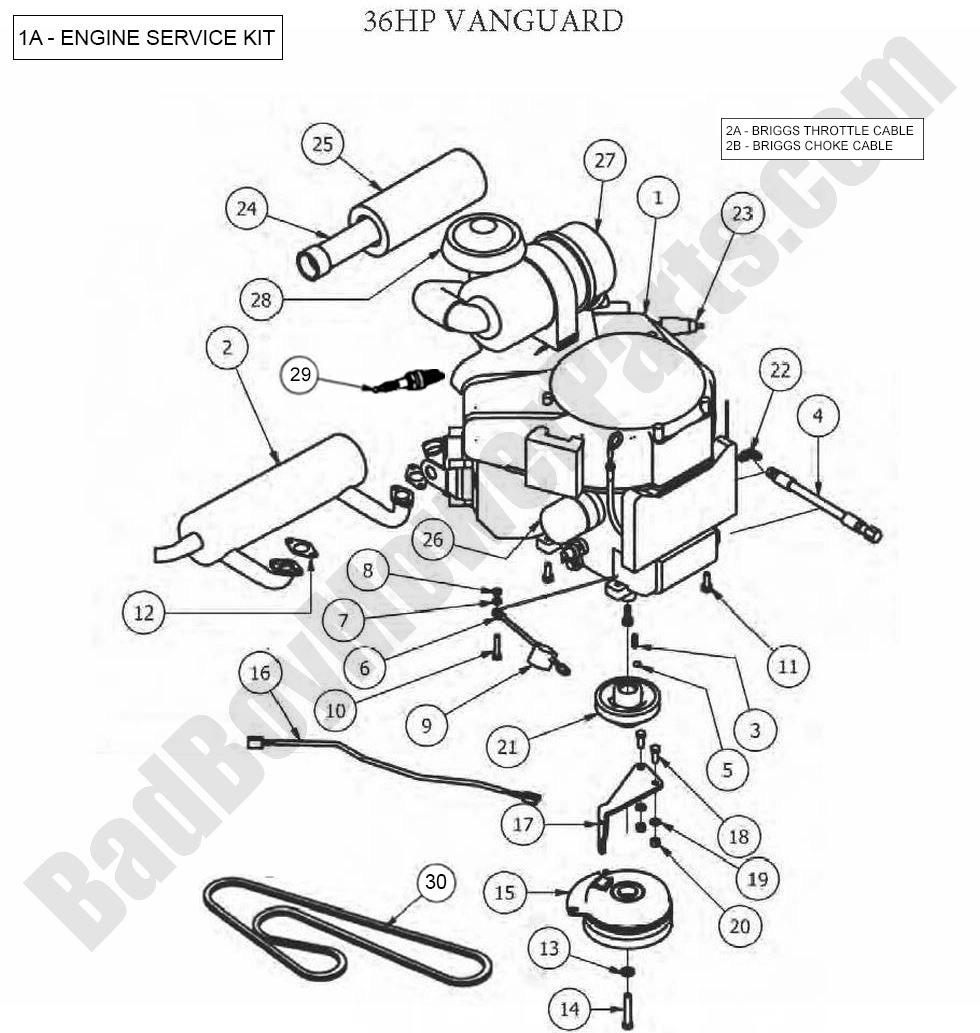

2012 Outlaw & Outlaw Extreme - Engine - Vanguard 36HP
  Position Number SKU Product Title Price
1A 063-2000-10 063-2000-10 - Briggs Vanguard 810/993/999cc (Non-EFI Models Only) Engine Service Kit
$127.15
1 015-3600-00 015-3600-00 - 36hp Briggs Vanguard Engine
$4379.44
2A 055-8021-00 055-8021-00 - 52" Throttle Cable (See Models Used On - Engine Diagrams For More Details)
$45.29
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 015-0034-00 015-0034-00 - Exhaust-32/36hp Vanguard Engine (See Models Used On For Details)
$185.76
3 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
4 051-5400-00 051-5400-00 - Oil Drain Hose-35/31hp Briggs
$24.12
5 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
6 064-8061-00 064-8061-00 - 30 Black Battery Cable (See Models Used On For Details)
$22.92
7 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
8 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
9 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
10 018-8059-00 018-8059-00 - 5/16-18x1-3/4 Hex Bolt
$2.99
11 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
12 015-2708-00 015-2708-00 - Exhaust Gasket - 36hp Vanguard
$16.04
13 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
14 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt
$2.99
15 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
16 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
17 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch (See Models Used On For Details)
$20.67
18 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
19 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
20 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
21 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
22 036-5400-00 036-5400-00 - Adaptor for 35/31hp Briggs Oil Drain
$33.16
23 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
24 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
25 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
26 063-8018-00 063-8018-00 - Oil Filter
$21.39
27 015-2705-00 015-2705-00 - Complete Canister 30KO and pre-2010/26KA (See Models Used On For Details)
$409.99
28 063-2045-00 063-2045-00 - Rain Cap-Fits all Canisters (obsolete)
use part #088-3060-00
$53.49
29 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
30 041-5048-00 041-5048-00 - Pump Belt (See Models Used On For Details)
$60.98
